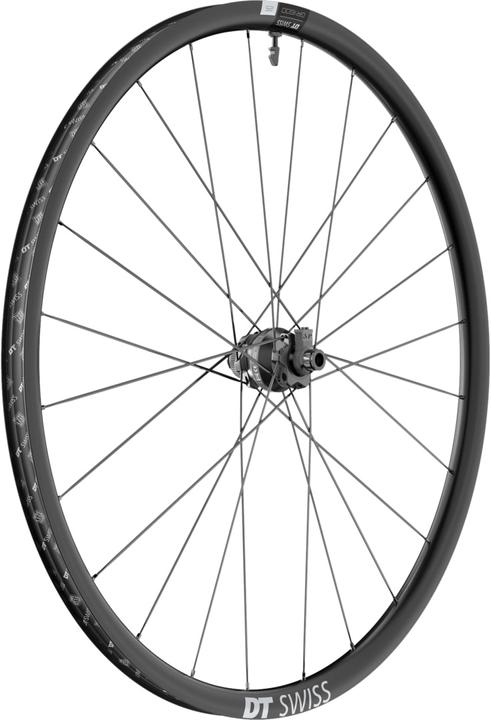

DT Swiss GR1600 Spline

Front wheel, 28"
Ratings
BrandMore from DT Swiss
Delivered the day after tomorrow
More than 10 items in stock at supplier

Product details

Leave the tarmac behind and enjoy the freedom of cycling off the beaten track and roads. Leave the tarmac behind and experience the thrill of off-road riding with the GR 1600 Spline. Whether you want to venture into the world of bikepacking or simply take a fast ride off-road, you will enjoy the manoeuvrability of the wheels offered by the combination of components. The high-quality alloy of the welded rim, which is available in 650B or 700C, is light yet robust. The 36T SL sprockets in the 350 ratchet hub mesh faster than in the previous model, giving you additional confidence on technical off-road routes. GR 1600 Spline db 25 DYN: No more charging batteries for your lights thanks to the front hub with integrated dynamo. The hub dynamo with SP PL-7 generator utilises one of the most efficient technologies. At 15km/h, a standard output power of 6 volts/3 watts (6V3W) is generated. 4.2 watts of your rolling power is used for the lighting.

Key specifications

BIke wheel type
Front wheel
Ability brake type
Disc brake Center lock
Suitable tyre type
Folding tire, Tubeless tire, Tubular tire
Width
28 mm
jaw width
24 mm
Axle system
VR 12x100 mm
Weight
1075 g
Item number
47269542

General information

Manufacturer
DT Swiss
Category
Wheels
Manufacturer no.
WGR1600AIDXSA27424
Release date
16.7.2024
Sales rank in Category Wheels
167 of 1625

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Gravel, Racing bikes, Trekking bikes
Wheel size
28"
Model year
2024

Wheel properties

BIke wheel type
Front wheel
Ability brake type
Disc brake Center lock
Max. load
130 kg

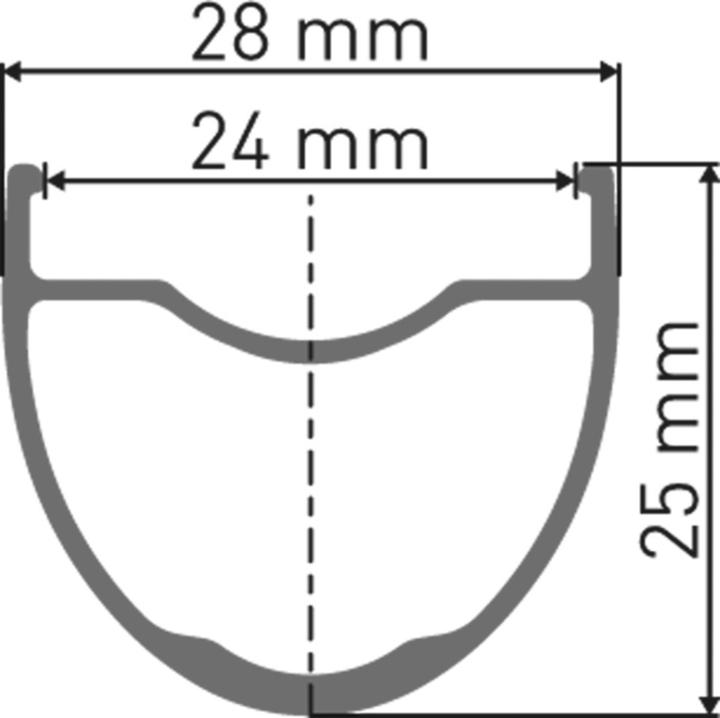

Rim properties

Rim model
ER 1600 Spline
Material rim
Aluminium
Rim height
25 mm
Number of holes
24 x
Suitable tyre type
Folding tire, Tubeless tire, Tubular tire
Width
28 mm
jaw width
24 mm

Hub + freewheel Features

Axle system
VR 12x100 mm
Axis standard
Thru axle
Installation width front
100 mm
Installation width rear
100 mm
Diameter axle front
12 mm
Diameter rear axle
12 mm

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
TL valve aluminium black 18-25 mm, Tubeless tape 27 mm

Product dimensions

Weight
1075 g

Package dimensions

Length
70 cm
Width
70 cm
Height
10 cm
Weight
500 g
