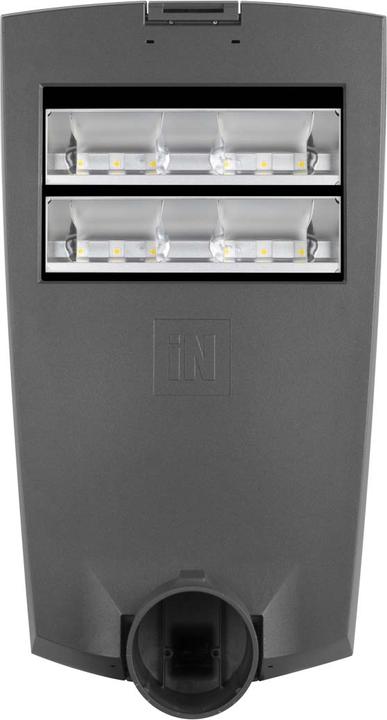

PiL Kreos

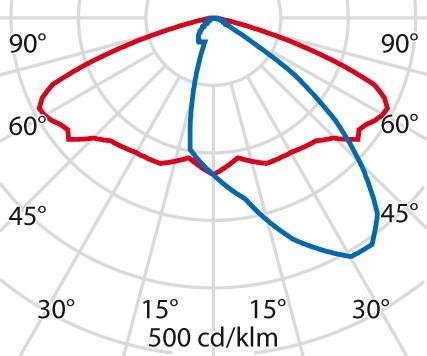

LED street light series consisting of housing and cover made of painted die-cast aluminium with polyester powder coating, following prior chemical conversion. The fixing part for poles is made of die-cast aluminium, grainy painted, suitable for poles with a diameter of 60 mm or 76 mm. High-performance reflectors are made of high-purity aluminium, bright and oxidised, with subsequent silver 99.99% PVD treatment, producing a surface with a reflection of over 97%, which is non-iridescent. Depending on the model, the following optics are available: SR/075 for narrow roads with a B/H ratio (road width/pole height) of up to 0.75, SR/100 for two-lane roads with a B/H ratio of 1, SR/125 for wide roads with a B/H ratio of 1.25, and SR/150 for wide roads with a B/H ratio equal to 1.5. Complies with the UNI 10819 standard and regional laws on light pollution. Gasket made of resistant silicone with increased resilience. Diffuser made of extra-clear tempered safety flat glass. Line disconnect plug automatically interrupts the power supply when the ring is opened. Features a powerful electronic ballast and includes an additional protective device against mains overvoltage up to 10 kV. Supplied with 1 metre cable H07RN-F 2x1.5 mm2 or H07RN-F 4x1.5 mm2 for dimmable versions, allowing mains connection without opening the light fitting. External screws are made of stainless steel. The NEMA versions have a NEMA socket connected to the DALI dimmable converter and a watertight short-circuit protection plug that allows the luminaire to operate in On-Off mode. These versions are intended for the installation of compatible smart solutions. The KREOS versions can be manufactured on request with all the optics available for the range. For information on other colour temperatures and the colour rendering index, please inquire. CLO (Constant Light Output) option available.
