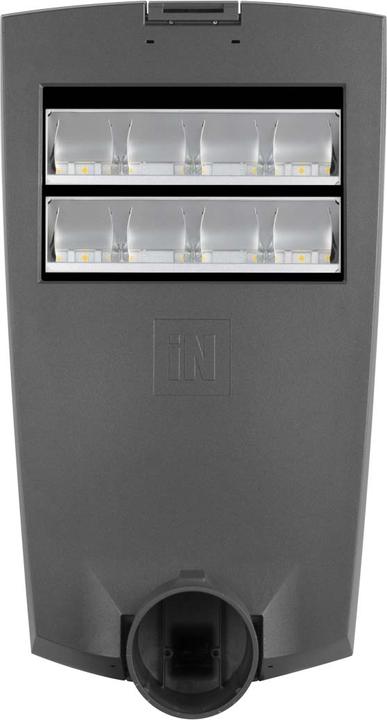

PiL Kreos

Currently out of stock
Free shipping starting at 50.–

Product details

LED street light series featuring a housing and cover made of painted die-cast aluminium with a polyester powder coating, following prior chemical conversion. The fixing part for poles is made of die-cast aluminium with a grainy paint finish, suitable for poles with a diameter of 60 mm or 76 mm. High-performance reflectors are crafted from high-purity aluminium, bright and oxidised, with a subsequent silver 99.99% PVD treatment. This process results in a surface with a reflection of over 97%, which is non-iridescent. Depending on the model, the following optics are available: SR/075 for narrow roads with a B/H ratio (road width/pole height) of up to 0.75, SR/100 for two-lane roads with a B/H ratio of 1, SR/125 for wide roads with a B/H ratio of 1.25, and SR/150 for wide roads with a B/H ratio equal to 1.5. Complies with the UNI 10819 standard and regional laws on light pollution. The gasket is made of resistant silicone with increased resilience. The diffuser is made of extra-clear tempered safety flat glass. It features a line disconnect plug that automatically interrupts the power supply when the ring is opened. Equipped with a powerful electronic ballast and an additional protective device against mains overvoltage up to 10 kV. Supplied with a 1 metre cable H07RN-F 2x1.5 mm2 or H07RN-F 4x1.5 mm2 for dimmable versions, allowing mains connection without opening the light fitting. External screws are made of stainless steel. The NEMA versions include a NEMA socket type connected to the DALI dimmable converter and a watertight short-circuit protection plug that allows the luminaire to operate in On-Off mode. These versions are intended for the installation of compatible smart solutions. The KREOS versions can be manufactured on request with all the optics available for the range. For information on other colour temperatures and the colour rendering index, please contact the factory. The CLO (Constant Light Output) option is available.

Key specifications

Exact colour description
Charcoal
Outdoor lighting type
Facade floodlights
Power supply
Electrical connection

General information

Item number
31307366
Manufacturer
PiL
Category
Outdoor wall lamp
Manufacturer No.
3106255
Release date
23.9.2022

Colour

Colour
Grey
Exact colour description
Charcoal

Material

Material group
MetalPlastic

Application range

Application range
Outdoor

Lamp properties

Outdoor lighting type
Facade floodlights
Dimmability
Not dimmable
Dimmer control
external controller

Bulb properties

Scope of illuminant
with permanently installed light source
Bulb type
LED light
Light colour
Warm white
Colour temperature
3000 K
Number of lights
1x

Smart home features

Smart home
Not compatible

Power supply

Power supply
Electrical connection
Output voltage
240 V

Scope of delivery

Items per sales unit
1x

Origin

Country of origin
Italy
