Kws Magnet door holder 1015

Scope of delivery: Door stop 1015.31 aluminum anodized in silver

Product description: Aluminum · Steel counterplate for screwing or gluing · with permanent magnet · with mounting materials · M8x90 stainless steel threaded pins · Base (10 mm high) aluminum · black powder-coated. Maximum door weight approx. 60 kg, holding force 70 N. Function: The door is secured by pressing against the magnet. The magnet is spring-loaded, which slows down the door. Installation: At the desired stop point, which should be as far away from the door hinge as possible, two dowels are embedded in the floor, the threaded pins are screwed in, the door stop is placed on top and secured with two side threaded pins.

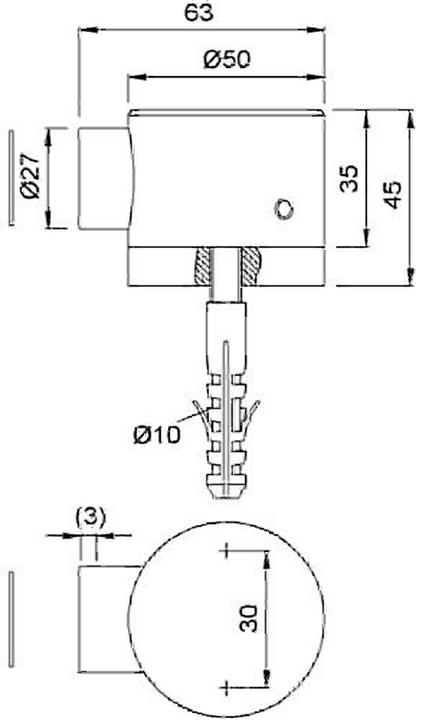

Technical data:

• Width: 63 mm
• Height: 45 mm.
