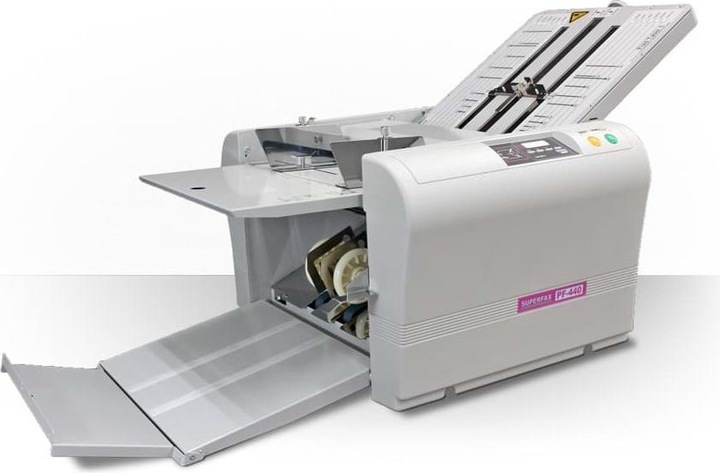

Superfax Folding machine PF-440, format A3

Folding Machine Superfax PF-440, A3 Format

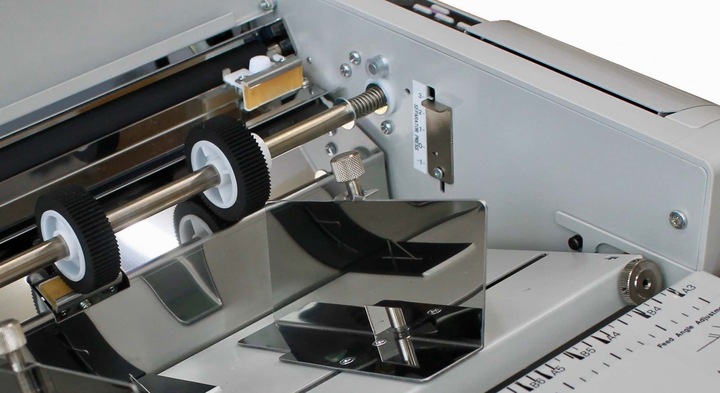

Robust and reliable folding machine for papers up to A3 format. It features 3 feed rollers, with adjustable pressure and speed in 5 levels. This table folding machine has a manual fold type setting for paper sizes up to A3. The PF-440 is an extremely reliable folding machine, used worldwide in offices, clubs, copy shops, and home printing businesses. The PF-440 is manufactured in Japan according to Superfax specifications. Unlike other visually similar folding machines, the PF-440 has the significant advantage of adjustable pressure for the friction feeder in 5 levels, allowing for a wider range of papers to be processed. Optionally, the machine can be equipped with the special feeder SF-Z2, which further facilitates the processing of smooth papers.

Features:

• 6 folding types (single, roll, zigzag, double parallel, outside, and altar fold)
• Formats from B6 to A3
• Compact and space-saving design
• Foldable paper tables and extensions
• With stacker output
• Paper feed adjustable in 5 levels
• 5 speed settings
• Quiet operation
• Robust and reliable

Technical Data PF-440:

• Paper weights: 45 – 160 g/m², up to 220 g/m² possible for single folds
• Max format: 297 x 432 mm
• Min format: 61 x 128 mm (single fold)
• Speed: 8000 - 900 sheets/hour (depending on fold type), adjustable in 5 levels
• Loading capacity: approx. 350 sheets
• Machine weight: 33.5 kg
• Machine dimensions: 870 mm x 530 mm x 520 mm (L x W x H)
• Power connection: 230 V, 75 Watts.
