Best Thermal Grizzly products in the Thermal pads category

On this page you'll find a ranking of the best Thermal Grizzly products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

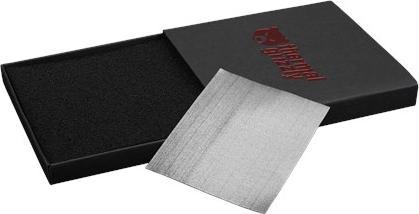

1. Thermal Grizzly KryoSheet

Thermal Grizzly presents KryoSheet, a new product that is part of the company's advertised high-performance cooling solutions. The graphene thermal pads from the Thermal Grizzly KryoSheet series can serve as an excellent alternative to high-end thermal pastes. Similar to the Carbonaut pads, they feature a flexible surface with very high thermal conductivity.

2. Thermal Grizzly PhaseSheet PTM - 50x40mm

The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material. This minimises the pump-out effect. The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated. The temperatures under load cause the heat spreader and the base plate to deform (concave or convex) and return to their original shape (straight) during cooling. As a result, the thermally conductive paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example. PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. The maximum thermal conductivity of PhaseSheet PTM develops and stabilises after around ten heat cycles above 60 degrees Celsius. Brief information Outstanding thermal conductivity Consistently high performance Very long service life Versatile in use Non-electrically conductive Easy to use Scope of delivery 1x PhaseSheet PTM.

Thermal Grizzly PhaseSheet PTM - 50x40mm (0.20 mm)
Thermal pads
CHF14.–

Thermal Grizzly PhaseSheet PTM - 50x40mm

0.20 mm

3. Thermal Grizzly Minus Pad 8 (100x100x2mm)

The easy to process and flexible minus pads consist of different components: They are based on a ceramic-silicone formula complex, nano-aluminum oxide. The pads thus always guarantee optimum heat transport.

Even the slightest contact pressure is sufficient for optimum fastening. All pads are environmentally friendly and RoHS compliant.

W/mK 8.0, temperature range -100°C / +200°C


Thermal Grizzly Minus Pad 8 (100x100x2mm) (2 mm, 8 W/m K)
Thermal pads
CHF30.70

Thermal Grizzly Minus Pad 8 (100x100x2mm)

2 mm, 8 W/m K

4. Thermal Grizzly Carbonaut thermal pad - 32 × 32 × 0.2 mm

Thermal Grizzly from Hamburg is a new German brand dedicated to combating high temperatures and poor heat transfer. The goal is to supply the overclocking community with high-performance thermal interface products, which remain a weak point. However, the product portfolio can also be used for better and quieter cooling of gaming PCs, workstations, mini-PCs, and many other applications. In addition to higher clock rates, better thermal interface products enable quieter cooling and a longer lifespan for the components being cooled.

To achieve these goals, Thermal Grizzly has closely collaborated with renowned extreme overclocker Roman "der8auer" Hartung during product development and testing, developed chemical compositions, and analyzed competitors. The product line is now expanded with an innovation in thermal pads: Thermal Grizzly's Carbonaut.


Thermal Grizzly Carbonaut thermal pad - 32 × 32 × 0.2 mm (0.20 mm, 62.50 W/m K)
Thermal pads
CHF13.90

Thermal Grizzly Carbonaut thermal pad - 32 × 32 × 0.2 mm

0.20 mm, 62.50 W/m K

5. Thermal Grizzly Carbonaut thermal pad - 38 × 38 × 0.2 mm

To achieve these goals, Thermal Grizzly has worked closely with and tested the well-known extreme overclocker Roman "der8auer" Hartung during product development, developing chemical compounds and analyzing competitors.

The features of the Thermal Grizzly Carbonaut thermal pad at a glance: Reusable, non-adhesive heat-conducting pad. Made of carbon-based polymer with nanoparticles. Extremely high thermal conductivity of 62.5 W/(m-K). 0.2 mm thick and 38 × 38 mm Intel CPUs for Socket 2066 and AMD CPUs for Socket AM4. Attention. Please observe the manufacturer's warnings before use. The Carbonaut is electrically conductive and is therefore not suitable for use on MOSFETS or voltage converters.


Thermal Grizzly Carbonaut thermal pad - 38 × 38 × 0.2 mm (0.20 mm, 62.50 W/m K)
Thermal pads
CHF15.90

Thermal Grizzly Carbonaut thermal pad - 38 × 38 × 0.2 mm

0.20 mm, 62.50 W/m K

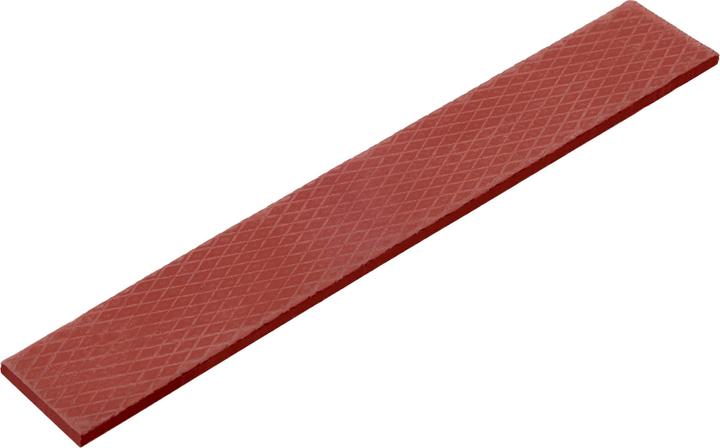

6. Thermal Grizzly Minus Pad 8 - 120

Very efficient thermal pad with good thermal conductivity and a thickness of 3 mm. Dimensions are 120 × 20 mm.

Thermal Grizzly Minus Pad 8 - 120 (3 mm, 8 W/m K)
Thermal pads
−10%
CHF15.– was CHF16.70

Thermal Grizzly Minus Pad 8 - 120

3 mm, 8 W/m K

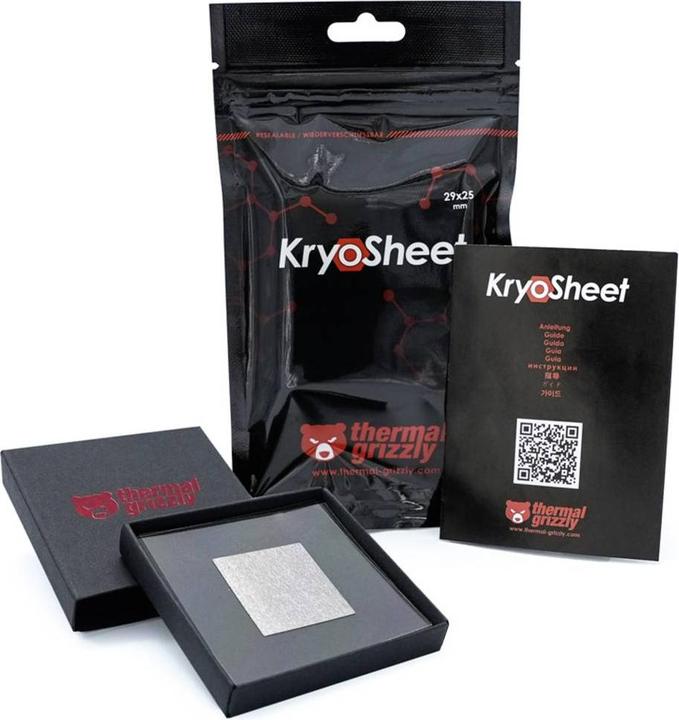

7. Thermal Grizzly KryoSheet Thermal Pad - 29 x 25 mm

Thermal Grizzly presents KryoSheet, a new product that is part of the company's advertised high-performance cooling solutions. The graphene thermal pads from the Thermal Grizzly KryoSheet series can serve as an excellent alternative to high-end thermal pastes. Similar to the Carbonaut pads, they feature a flexible surface with very high thermal conductivity.

Thermal Grizzly KryoSheet Thermal Pad - 29 x 25 mm (0.20 mm)
Thermal pads
CHF18.70

Thermal Grizzly KryoSheet Thermal Pad - 29 x 25 mm

0.20 mm

8. Thermal Grizzly Minus Pad Extreme - 120 × 20 × 3 mm

The Thermal Grizzly Minus Pad Extreme is an excellent choice for applications where thermal paste is not suitable due to its cumbersome application. This is particularly useful when bridging gaps between heat sources and heat sinks, such as with memory chips and voltage regulators. The silicone-based thermal pad has a consistency similar to modeling clay.

This allows for an ideal surface design with maximum possible compression. The thermal conductivity has been improved by approximately 260% compared to the Minus Pad 8, enabling the best performance for challenging cooling processes like voltage regulators and memory ICs.

The Minus Pad Extreme is available in various sizes and thicknesses - here 120 x 20 x 3 mm. The pads perform excellently even with very low contact pressure, and the thermal conductivity is only slightly affected by the thickness. Therefore, the choice of thickness should depend entirely on the gap that needs to be bridged. The Minus Pad Extreme is electrically insulating. Due to its consistency, only single-use is recommended.

Caution! This product comes with a protective film that must be removed before installation. We do not accept liability for damages caused by faulty or incorrect installation and improper use!

Technical details:
- Dimensions: 120 x 20 x 3 mm
- Quantity: 1
- Density: 3.38 g/cm³
- Hardness: 65 Shore 00
- Dielectric strength: 8 KV/mm ASTM D149
- Operating temperature: -100 to +250 °C
- Flammability: V-0
- Color: Rust brown.


Thermal Grizzly Minus Pad Extreme - 120 × 20 × 3 mm (3 mm, 8 W/m K)
Thermal pads
−29%
only 1 piece on sale
CHF59.50 was CHF83.80

Thermal Grizzly Minus Pad Extreme - 120 × 20 × 3 mm

3 mm, 8 W/m K

9. Thermal Grizzly Cryosheet 68 x 51

Thermal Grizzly Cryosheet 68 x 51 (0.20 mm)
Thermal pads
CHF32.70

Thermal Grizzly Cryosheet 68 x 51

0.20 mm

10. Thermal Grizzly KryoSheet 44x37 mm

Thermal Grizzly KryoSheet 44x37 mm (0.20 mm)
Thermal pads
CHF28.90

Thermal Grizzly KryoSheet 44x37 mm

0.20 mm
