Best Alphacool products in the Thermal pads category

On this page you'll find a ranking of the best Alphacool products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm

Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components. The Apex heat transfer pad is the most powerful option and can reliably dissipate heat. Thanks to its high compressibility, it can also be used for a wide range of applications. The silicone-based Ultrasoft Apex heat transfer pad from Alphacool has optimal compressibility. Due to its low hardness and natural stickiness, it can be perfectly adapted to surfaces and compensates for unevenness between components. In this way, it significantly improves heat transfer.

Thanks to its unique material composition, the risk of silicone bleeding is significantly reduced with the Apex heat transfer pad. It can cool reliably for a much longer period of time without suffering any significant loss of performance.

Due to its excellent electrical insulation, the thermal pad is suitable for cooling electrical components in a wide range of devices such as electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, and many others.

Technical Data:
Thermal pad dimensions (L x W x H): 100 x 100 x 1mm
Thermal conductivity (ASTM D5470): 17.8 W/mK (±10%)
Hardness (ASTM D2240): 65 (Shore 00) (±5)
Operating temperature: -50 to ~150°C
Volume resistivity (ASTM D257): 6 x 10^9 Ohm-m
Dielectric constant (ASTM D149): 4 KV/mm (±10%)
Density (ASTM D792): 3.5 g/cm³ (±10%)
Elongation (ASTM D412): 20%
Weight loss (ASTM E595): less than 1%
Flame class (UL 94): V-0
Colour: light grey.


Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm (1 mm, 17.80 W/m K)
Thermal pads
CHF94.90

Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm

1 mm, 17.80 W/m K

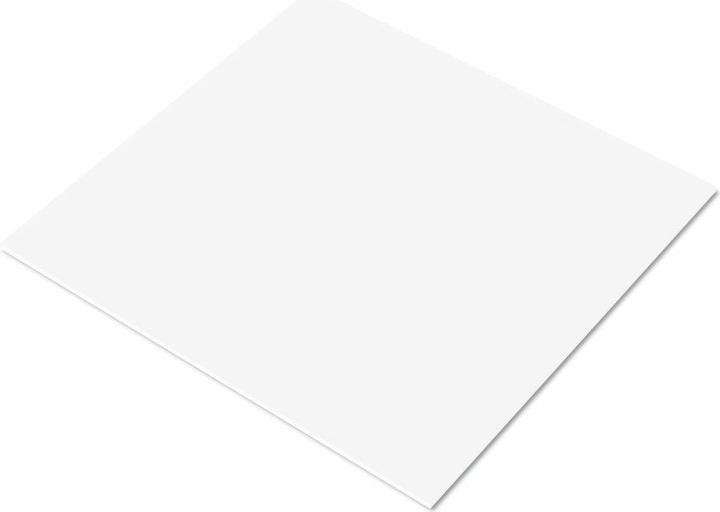

2. Alphacool Ultra Soft

Like other thermal pads, the Alphacool ice layer can level out the unevenness of cooling elements and the elements to be cooled. However, it has a very special feature: the ice layer consists of heat-conducting paste with an embedded fabric. This ensures that the performance of these pads is significantly more efficient than that of normal heat-conducting pads, regardless of the low W/mK value. In addition, a better distribution and filling between the surfaces is achieved, resulting in better air displacement. Due to their soft consistency, there is no pressure on components or solder joints. Nvidia also uses this type of pad for the Founders Edition. The ice layer can easily be cut to the desired size and applied to cooling elements without slipping. As a basic component or spare part, heat conduction pads belong in every well-organized computer tinkering corner.

Technical data:
Dimensions (L x W x H): 100 x 100 x 1mm
Thermal conductivity: 3 W/mK
Electrically conductive: No
Colour: white.


3. Alphacool Core Thermal Pad Soft 9W/mk 40x40x2mm

Alphacool's performance thermal pad is designed to cool various electronic components where effective heat dissipation is crucial. It can be used on voltage converters and VRAMs in graphics cards, as well as in electronic components of PlayStation and Xbox game consoles, significantly enhancing their performance and durability.

This silicone-based soft heat transfer pad features optimal compressibility. Its low hardness and natural tackiness allow it to adapt perfectly to surfaces, compensating for unevenness between components and ensuring a notable improvement in heat transfer.

The special material composition of the Core heat-conducting pad minimizes the risk of silicone bleeding, enabling it to be used for a considerably longer period than conventional heat transfer pads without significant performance loss.

Thanks to its excellent electrical insulation properties, Alphacool's thermal pad is also suitable for cooling electronic components in electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, and more.

Technical Data:
- Thermal pad dimensions (L x W x H): 40 x 40 x 2 mm
- Thermal conductivity (ASTM D5470): 9.0 W/mK (±10%)
- Hardness (ASTM D2240): 50 (Shore 00) (±15)
- Operating temperature: -50 to ~180°C
- Volume resistivity (ASTM D257): 1 x 10^12 Ohm-m
- Dielectric constant (ASTM D149): 8 KV/mm
- Density (ASTM D792): 3.2 g/cm³ (±10%)
- Elongation (ASTM D412): 40%
- Weight loss (ASTM E595): less than 1%
- Flame class (UL 94): V-0
- Colour: Pink.


Alphacool Core Thermal Pad Soft 9W/mk 40x40x2mm (2 mm, 9 W/m K)
Thermal pads
−8%
CHF10.90 was CHF11.90

Alphacool Core Thermal Pad Soft 9W/mk 40x40x2mm

2 mm, 9 W/m K

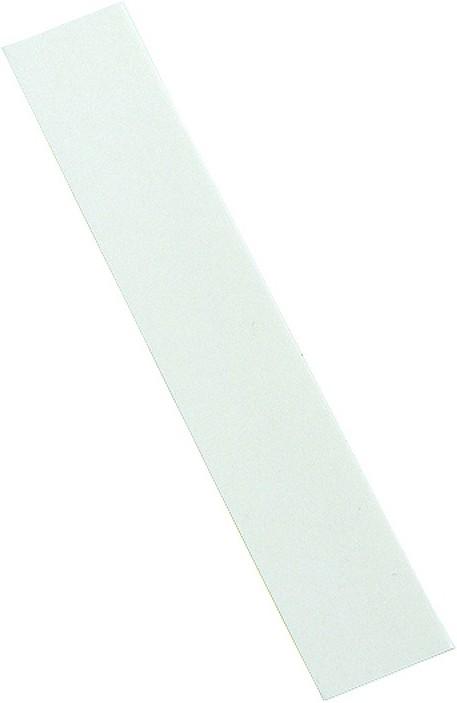

4. Alphacool Thermal conductive adhesive pad double-sided 120x20x0,5mm

With the double-sided thermal adhesive pad from Alphacool, you can mount your cooler exactly where you want, independent of hole distances, mounting brackets, or other intended options. This is particularly interesting, for example, for the in-house MCX system to mount mini coolers for graphics cards or motherboards. Long-term tests show that you can attach much more than just mini coolers. Dimensions: 120 x 20 x 0.5 mm.

Alphacool Thermal conductive adhesive pad double-sided 120x20x0,5mm (0.50 mm, 1 W/m K)
Thermal pads
CHF4.50

Alphacool Thermal conductive adhesive pad double-sided 120x20x0,5mm

0.50 mm, 1 W/m K

5. Alphacool Apex Soft Thermal Pad 14W/mk 100x100x1mm

The Apex Soft are Alphacool's high-end solution in the range of thermal pads. Due to their outstanding properties, they can almost be compared to thermal paste. The Apex Soft thermal pads nestle much better to components, which contributes to a significant improvement in cooling performance.

Better than standard thermal pads? The material of the Apex Soft thermal pads acts similarly to thermal paste. The consistency of the pads prevents the highest components, such as voltage converters or VRMs, from being subjected to increased contact pressure from the cooler. In extreme cases, this pressure can cause PCBs to bend. The Apex Soft pads fill unevenness much better, nestle better against the components, and thus significantly increase the heat transfer between the cooler and the component.

But that is not the only advantage! The special material also cannot dry out. Usually, the silicone of heat-conducting pads bleeds out over time. This makes them go hard and the performance of the pads drops rapidly after a certain point. This is not the case with the Apex Soft thermal pads. They can be used for a much longer period of time without significantly losing performance.

Cutting to size? No problem! When cutting the heat-conducting pads to size, it is essential to leave the foil on the pads. This makes it easy to cut the pads to size with scissors. This is just as easy as cutting paper. The cut edges remain perfectly clean and do not fray.

The Alphacool Apex Soft thermal pads offer better performance than standard thermal pads in many respects and are a perfect replacement for old or underperforming pads.


Alphacool Apex Soft Thermal Pad 14W/mk 100x100x1mm (1 mm, 14 W/m K)
Thermal pads
CHF66.90

Alphacool Apex Soft Thermal Pad 14W/mk 100x100x1mm

1 mm, 14 W/m K

6. Alphacool 12459 Thermal pad

Alphacool's ultimate solution to cool your computer with an ice layer. An ice layer not in the conventional sense of frozen water, but a layer that brings every chip to freezing temperatures. The properties of the new thermal pads speak for themselves.

With up to 17 W/mk, the pads surpass all previously available thermal pads and pastes! This makes it easy and clean to install all hardware components with thermal pads.

The "Alphacool Ice Layer" offers all the advantages and typical characteristics of a thermal pad: self-adhesive, elastic, adaptable, and much more! Its application range is equally versatile, whether for RAM and motherboard coolers or graphics card and CPU coolers; wherever a circuit board meets a heat sink, the Alphacool Ice Layer is a great choice.

The pads are available in different performance levels: 11, 14, and 17 W/mk, each in thicknesses of 0.5 mm, 1 mm, and 1.5 mm to perfectly compensate for height differences. Each thickness is also available in sizes of 100 x 100 mm and 120 x 20 mm (suitable for RAM coolers). They can easily be cut with scissors to customize the size for each component.

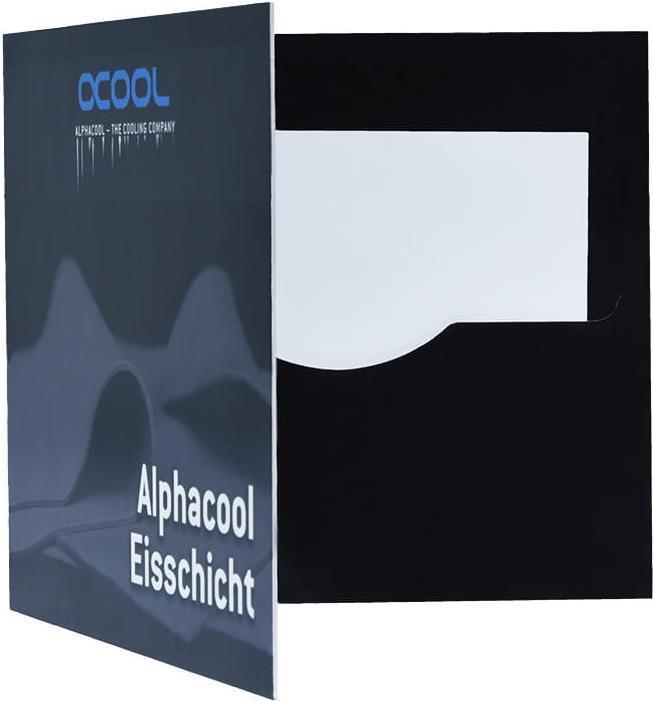

7. Alphacool Ice layer - 100x100x0,5mm (Sarcon XR-m)

Alphacool's solution for cooling your computer with an ice layer. An ice layer not in the conventional sense of frozen water, but a layer that brings every chip to freezing. The "Alphacool Ice Layer" offers all the advantages and typical characteristics of a thermal pad: self-adhesive, elastic, adaptable, and much more. Its range of applications is equally versatile, whether for RAM and motherboard coolers or graphics card and CPU coolers; wherever a circuit board meets a heat sink, the Alphacool Ice Layer is a great choice. Dimensions: 100 x 100 x 0.5 mm.

Alphacool Ice layer - 100x100x0,5mm (Sarcon XR-m) (0.50 mm, 17 W/m K)
Thermal pads
CHF155.–

Alphacool Ice layer - 100x100x0,5mm (Sarcon XR-m)

0.50 mm, 17 W/m K

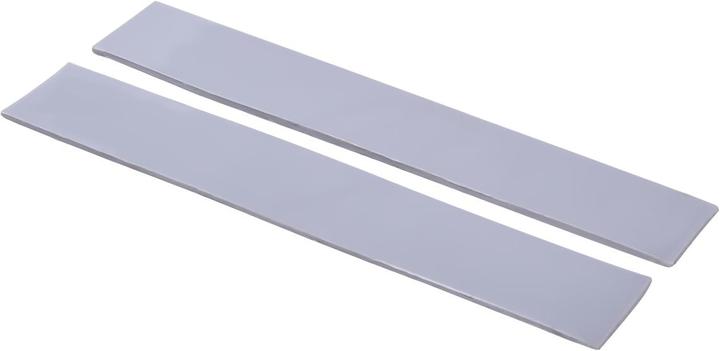

8. Alphacool Ice Layer - Sarcon XR-e 2 Pack

Alphacool's solution for cooling your computer with an ice layer. An ice layer not in the conventional sense of frozen water, but a layer that causes every chip to freeze. The "Alphacool Ice Layer" offers all the advantages and typical characteristics of a thermal pad: self-adhesive, elastic, adaptable, and much more. Its application area is just as versatile; whether for RAM and motherboard coolers or graphics card and CPU coolers, wherever a circuit board meets a heatsink, the Alphacool Ice Layer is a wise choice. Dimensions: 120 x 20 x 1.5 mm.

Alphacool Ice Layer - Sarcon XR-e 2 Pack (1.50 mm, 11 W/m K)
Thermal pads
CHF35.90

Alphacool Ice Layer - Sarcon XR-e 2 Pack

1.50 mm, 11 W/m K

9. Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1,5mm

Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components. The Apex thermal pad is the most powerful option and can reliably dissipate heat. Thanks to its high compressibility, it can also be used for a wide range of applications. The silicone-based Ultrasoft Apex heat transfer pad from Alphacool has optimal compressibility. Due to its low hardness and natural stickiness, it can be perfectly adapted to surfaces and compensates for unevenness between components. In this way, it significantly improves heat transfer.

Thanks to its unique material composition, the risk of silicone bleeding is significantly reduced with the Apex heat transfer pad. It can cool reliably for a much longer period of time without suffering any significant loss of performance.

Due to its excellent electrical insulation, the thermal pad is suitable for cooling electrical components in a wide range of devices such as electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, and many others.

Technical Data:
- Thermal Pad Dimensions (L x W x H): 100 x 100 x 1.5mm
- Thermal conductivity (ASTM D5470): 17.8 W/mK (±10%)
- Hardness (ASTM D2240): 65 (Shore 00) (±5)
- Operating temperature: -50 to ~150°C
- Volume resistivity (ASTM D257): 6 x 10^9 Ohm-m
- Dielectric constant (ASTM D149): 4 KV/mm (±10%)
- Density (ASTM D792): 3.5 g/cm³ (±10%)
- Elongation (ASTM D412): 20%
- Weight loss (ASTM E595): less than 1%
- Flame class (UL 94): V-0
- Colour: light grey.


Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1,5mm (1.50 mm, 17.80 W/m K)
Thermal pads
CHF170.–

Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1,5mm

1.50 mm, 17.80 W/m K

10. Alphacool W??M Core double-sided adhesive thermal pad 50x50x0.25mm

Alphacool's double-sided adhesive core thermal pad can be used to cool electronic components of all kinds where it is important to dissipate heat effectively. This significantly improves the performance and durability of the components. Assembly is significantly simplified by the material's adhesive properties.

Flexible and powerful, the thermal conduction pad is reliable and effective thanks to its material composition. With its low thickness, it offers a wide range of application possibilities. It can be flexibly cut to size to meet individual requirements. Due to its adhesive nature, it is possible to mount electrical components such as DDR modules, motherboard components, or power supply units without the need for soldering.

Technical data:
- Dimensions (L x W x H): 50 x 50 x 0.25 mm
- Thermal conductivity (ASTM D5470): 1 W/mK ±10%
- Thickness (ASTM D374): 0.25 mm
- Structure: Glass fibre fabric
- Continuous operating temperature: -30 to +120 °C
- Short-term operating temperature (30 seconds): 180 °C
- Density (ASTM D792): 1.2 g/cm³
- Holding force (PSTC-7): >3000 min 180° peel strength (aluminium) (PSTC-101): >16 N / 25 mm
- Dielectric breakdown voltage: 3 KV ±10%
- Thermal impedance @10 psi (ASTM D5470): 1.26 C-in/W
- Thermal impedance @30 psi (ASTM D5470): 1.06 C-in/W
- Thermal impedance @50 psi (ASTM D5470): 1.05 C-in/W
- Colour: White.


Alphacool W??M Core double-sided adhesive thermal pad 50x50x0.25mm (0.25 mm)
Thermal pads
CHF6.50

Alphacool W??M Core double-sided adhesive thermal pad 50x50x0.25mm

0.25 mm
