Best selling Relays from JUNG
This page always stays fresh and updates automatically.
1. JUNG 1702SE Switching insert Rela
The 1702SE switching relay from JUNG is a versatile installation relay designed for controlling lighting and motors. With its 2-channel design, it allows for flexible use in various applications. The relay is equipped with a secondary contact input, facilitating integration with different attachments from JUNG and other systems. This makes it an ideal solution for modern smart home installations. The 1702SE is easy to install in a standard device box and offers reliable performance at an input voltage of 230 volts. The ability to set time functions and delays for the outputs expands its application possibilities and ensures efficient control of connected devices. The relay is not only functional but also compatible with various smart home technologies, making it a future-proof choice for automating living and working spaces.
- Two independent outputs for flexible control
- Adjustable on and off delays
- Compatible with various JUNG attachments and smart home systems
- Input voltage of 230 volts for reliable operation
- Easy installation in standard device boxes according to DIN 49073.
2. JUNG Switch insert relay 1K 1701SE
With secondary station input for attachments JUNGHOME item numbers: BT 17101, BT 17102, BT 17181, BT 17182, BT 1791 for attachments eNet item numbers: FM 1700, FM 1701 for attachments LB-Management item numbers: 1700, 1750 D, 17180, 17280, 1790 D for attachments KNX RF item numbers: 1091 1ST RF, 1092 1ST RF.
Intended use: Switching of lighting and motors, operation with suitable attachment, controlling electric underfloor heating and electrothermal actuators in combination with a room temperature controller attachment. Installation in a device box with dimensions according to DIN 49073.
Product features: Connection of secondary stations possible, adjustable delay times, test operation for functional testing, adaptive zero point switching. Rated voltage: AC 230, mains frequency: 50-60 Hz, standby power depending on the attachment: approx. 0.1 ... 0.5 W.
Switching current at 35 °C: Switching current for motors: A. Connection power at 35 °C: Incandescent lamps: 2300 W, HV halogen lamps: 2300 W, electronic transformers: 1500 VA, inductive transformers: 1000 VA, HV LED lamps: typically 400 W, uncorrected fluorescent lamps: 1200 VA, capacitive load: 920 VA.
Connection: Screw terminals for solid wire: 1 x 0.5 ... 4.0 mm², 2 x 0.5 ... 2.5 mm²; fine wire without ferrule: 1 x 0.5 ... 4.0 mm², 2 x 0.5 ... 2.5 mm²; fine wire with ferrule: 1 x 0.5 ... 4.0 mm², 2 x 0.5 ... 1.5 mm².
Installation depth: 24 mm, ambient temperature: -25 ... 45 °C, storage and transport temperature: -20 ... 70 °C. Number of actuators: up to 10. Number of secondary stations: 2-wire secondary station 1720 NE: unlimited, 3-wire secondary station 1723 NE: 10, push buttons: unlimited. Delay time: none, min, 30 min, 60 min.
3. JUNG Relay station
The JUNG relay station RS 8 REGHE is a versatile installation relay designed for mounting on a DIN rail. With a width of 8 modular units, this device offers an efficient solution for switching lighting, single-phase fan motors, as well as electrically operated blinds and shutters. The relay station is equipped with eight normally open contacts that allow for a maximum switching capacity of 16 amperes. The supply voltage ranges from 230 to 240 volts AC, while the control voltage is at 24 volts DC. The integrated LED status indicator enables easy monitoring of the operational status. The relay station can be used in both switch and push-button operation and offers additional functions such as central control of connected devices. On-site operation is possible through a keypad, allowing for flexible handling without external control stations.
- Built-in keypad for on-site operation
- Control of feedback LEDs at control stations
- Versatile applications for lighting and blinds
- Central function for simultaneous control of multiple devices
- Compatible with various operating modes: switch, push-button, and blind operation.
4. JUNG Staircase vending machine
Jung staircase automatic 1208 REG
Manufacturer: Jung
Designation: Staircase automatic
Type: 1208 REG
Function: Electronic
Mounting type: DIN rail
Width in division units: 1
Number of contacts as switches: 1
Control voltage: 230 V
Control voltage type: AC
Frequency of control voltage: 50-60 Hz
Rated switching current: 16 A
Max. switching current (cos phi 0.6): 165 A
Fallback delay: 0.1-15 min
Button glow lamp current: 40 mA
Circuit type: 3- and 4-wire circuit
Switch-off pre-warning: None
Selectable pulse function: No
Following switching: Follow-up + permanent light + time extension
Supply voltage: 230 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 1200 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 920 VA
Intended use: Manual or automatic switching of lights in staircases. Mounting on a DIN rail according to DIN EN 60715 in sub-distributors. Switching on via pulse unit or button.
Product features:
- Adjustable follow-up time
- Electronic overload protection for the control input
- Four different operating modes adjustable:
- Automatic function without switch-off warning
- Automatic function with switch-off warning
- Light permanently on
- Light permanently off
Automatic light switching: The pulse unit is combined with a motion detector. As soon as the brightness falls below a value set on the motion detector and movements are detected, the pulse unit cyclically sends a switch-on signal to the REG automatic. This switches the light on for the set follow-up time. After the follow-up time has elapsed, the REG automatic switches the light off. After switching off, pulse units with motion detectors do not detect any movements for about 3 seconds.
EAN: 4011377013827.
5. JUNG Isolating relay TR-S
The Jung separation relay TR-S is a reliable solution for the electrical decoupling of blind motors. It allows for the connection of multiple motors to a blind control unit or mechanical blind switch, with one separation relay required for every two drives. With a rated voltage of 230 V and a switching capacity of up to 4 A, this relay is suitable for use in both residential and commercial applications. The duty cycle is 100%, enabling continuous use without overheating. The device is easy to install and provides safe and efficient control of blinds and similar applications. It is not suitable for smart home systems but offers robust performance for traditional installations.
- Reliable electrical decoupling for blind motors
- Rated voltage of 230 V for versatile applications
- Maximum switching capacity of 920 W for high efficiency
- Duty cycle of 100% for continuous operation.
6. JUNG Isolating relay shutter UP 2mot ZentrEing TR-SUP
Jung Disconnect Relay UP TR-SUP
Manufacturer: Jung
Designation: Disconnect Relay UP electrical decoupling
Type: TR-SUP
Mounting type: Flush-mounted
Central input: yes
Secondary input: no
Number of connectable motors: 2
Nominal voltage: 230 V
Frequency: 50 Hz
Rated current: 4 A
The Jung Disconnect Relay UP TR-SUP is required when more than one blind motor is to be connected to a blind insert or mechanical blind switch. A disconnect relay for electrical decoupling is necessary for every two drives.
It is suitable for flush mounting in a device box with dimensions according to DIN 49073 (recommended depth device box).
Nominal voltage: AC 230 V, 50 Hz
Control voltage: AC 230 V, 50 Hz
Switching capacity: 4 A, AC 230 V, cos ? = 0.8 inductive
Duty cycle ED: 100 %
EAN: 4011377021020.

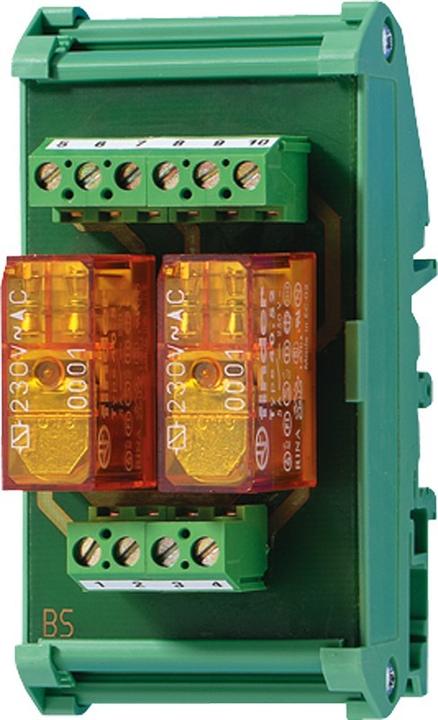

7. JUNG Isolating relay shutter REG 2mot ZentrEing TR-SREG
The JUNG Jalousie REG 2mot ZentrEing TR-SREG relay is a reliable solution for the electrical decoupling of blind motors. It allows the connection of multiple blind motors to a single blind control unit or mechanical blind switch. With a rated voltage of 230 V AC and a network frequency of 50 Hz, this installation relay offers a switching capacity of up to 4 A. The duty cycle is 100%, enabling continuous use without overheating. This product is ideal for applications where precise control of blinds is required, ensuring safe and efficient functionality in your home or office.
- Reliable electrical decoupling of blind motors
- Switching capacity of up to 4 A for efficient use
- 100% duty cycle for continuous operation
- Easy integration into existing blind systems.
