Best Finder products in the Relays category
On this page you'll find a ranking of the best Finder products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

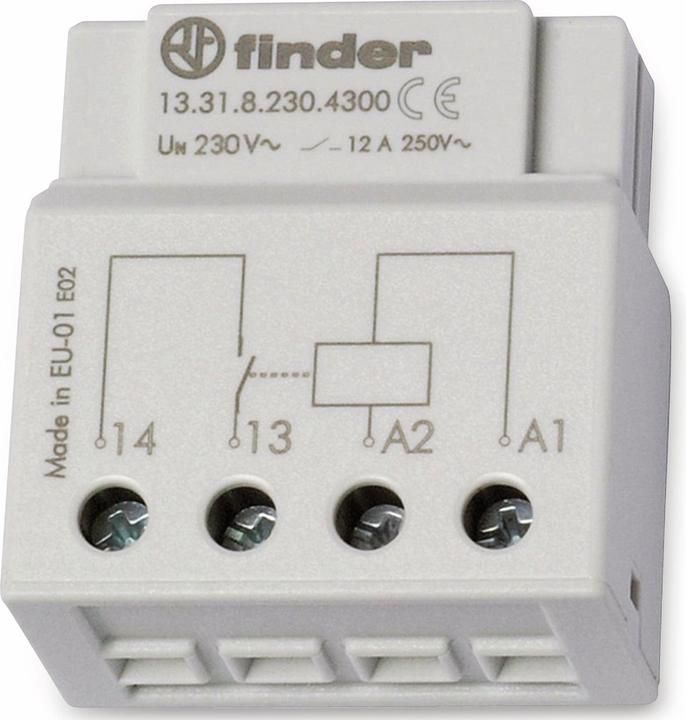

1. Finder Interposing relay, 12A 1 NO, 230vac
Coil voltage = 230V ac
Contact arrangement = 1-pole normally open contact
Switching current = 12 A
Connection Type = Screw
Series = 13 Series
Switching voltage AC max. = 400V ac
Application Type = Intermediate lighting circuit
Length = 37mm
depth = 22.7mm
height = 39mm
Dimensions = 37 x 22.7 x 39mm
Life = 70000 cycles (electrical)
Series 13,31 - electromechanical monostable relays. Intermediate monostable relay series 13.31, switch box 1-pole mounted. Can be mounted behind blind plates, as is common practice in home wiring 1 NO contact (SPST-NO) For mounting in home switch boxes Cadmium-free contact material.
2. Finder Time relay multifunction type 80.01
Supply voltage: 12 to 240 Vac/dc
Time range: 0.1 to 20 min, 0.1 to 20 s, 0.1 to 24 h
Mounting type: DIN rail
Number of time functions: Multifunction
Number of contacts: 1
Series: 80 Series
Time period: Hours, minutes, seconds
Power supply: External
Contact arrangement: 1-pole changeover switch
Current max: 16 A
Connection type: Screw mounting
Voltage min: 250 Vac
Voltage max: 400 Vac
Width: 17.5 mm
Series 80 offers multipurpose functions and multiple voltages. Functions include:
- AI: Timing at switch on
- BE: Timing at pause with control signal
- CE: Timing at switch on and off with control signal
- DE: Interval with control signal
- DI: Interval
- SW: Blinker with symmetrical cycle
Contact material: AgCdO
Width: 17.5 mm
Features six time scales from 0.1 s to 24 hrs, high insulation between input and output, screw terminal, and IP20 protection.

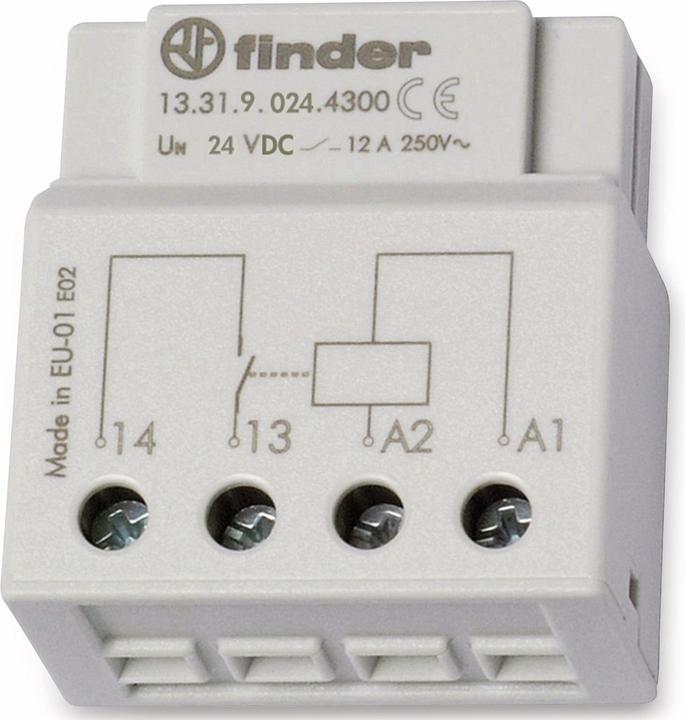

3. Finder Switching relay
Finder switching relay 13.31.9.024.4300
Manufacturer: Finder
Designation: Switching relay for flush-mounted boxes
Type: 13.31.9.024.4300
Function: Mechanical
Mounting type: Flush-mounted
Width in pitch units: 2.1
Installation depth: 39 mm
Number of contacts as normally open: 1
Control voltage 1: 24 V
Control voltage type 1: DC
Frequency of control voltage 1: 0 Hz
Rated current: 12 A
Supply voltage: 24 V
Voltage type of supply voltage: DC
Max. lamp load: 800 W
Incandescent lamp load: 800 W
Max. fluorescent lamp load: 400 VA
Max. fluorescent lamp load (duo circuit): 400 VA
Max. fluorescent lamp load (parallel compensated): 400 VA
Fluorescent lamp load (parallel compensated): 300 VA
Max. switching current (cos phi 0.5): 300 VA
Switching current (cos phi 0.6): 5 A
Further details: Switching relay for flush-mounted box or switch box, monostable, 1 NO contact for 12 A, contact material AgSnO², max. inrush current 80 A for 5 ms. Lamp loads: incandescent and halogen lamps 800 W, energy saving lamps 200 W, LED (230 V AC) 200 W, LV halogen lamps or LED with electronic ballast 200 W, LV halogen lamps or LED with electronic ballast 400 W, fluorescent lamps with electronic ballast 400 W, fluorescent lamps with electronic ballast 300 W. Ambient temperature: -10 to +60° C. Coil data: 24 V DC, 0.4 W. Relay protection class: IP 20. EAN: 8012823376813.

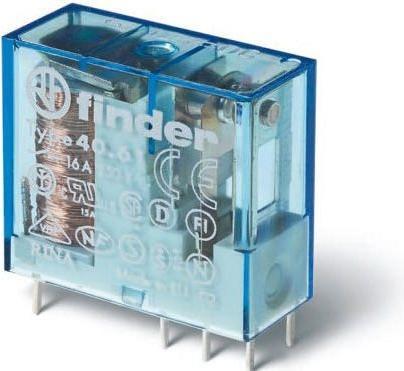

4. Finder Interfacerelais
SEV, VDE, CSA, UL-recognised component for Canada and USA, GOST, IMQ, RINA. Miniature relays for PCB mounting 8-10-12-16 A. A selection of miniature relays for PCB mounting from Finder. Features and benefits. 8 mm, 6 kV insulation coil/contact. Flux resistant: RT II. Dimensions (HxWxD): 25 x 29 x 12.4 mm. Information on product application. Medicine and dentistry. Control panels. Panels for power distribution. Toys. Automation for blinds, grilles and shutters. Door and gate openers. Electronic circuit boards. Vending machines.
5. Finder Time relay 1-pole
Supply voltage: 24 to 240 Vac/dc
Time range: 0.1 to 20 s, 0.1 to 20 min, 0.1 to 24 h
Operating mode: On-delay
Mounting type: DIN rail
Number of time functions: Single
Number of contacts: 1
Series: 80 Series
Time period: Hours, minutes, seconds
Power supply: External
Contact arrangement: 1-pole changeover switch
Current max: 16 A
Connection type: Screw mounting
Voltage min: 16.8 V ac/dc
Voltage max: 265 V ac/dc
Operating temperature max: +50°C
Series 80 - On-delay switch. Function - 111 with 6 time ranges, wide voltage range, contact material: AgCdO.

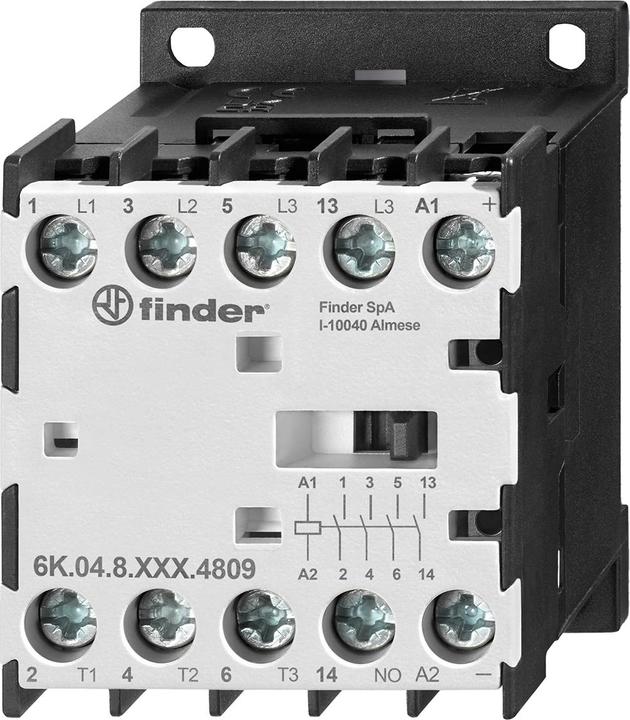

6. Finder Mini industrial contactor
The Finder mini industrial contactor is a powerful and compact device designed for mounting on a 35 mm DIN rail. With three normally closed contacts and one normally open contact, it provides reliable control for various applications. The contactor is rated for a maximum power of up to 4 kW at 440 V and 690 V, making it ideal for industrial applications. The AgSnO2 contact material ensures a long lifespan and reliability. With a coil voltage of 230 V AC and a width of only 45 mm, the mini industrial contactor is space-saving and easy to install. The IP 20 protection rating ensures that the device can be safely operated in dry environments. Auxiliary contacts are available as an option to further enhance functionality. This contactor complies with the EN 60947-4-1 standard, making it suitable for use in professional applications.
- AgSnO2 contact material for high reliability
- Suitable for industrial applications with up to 4 kW power
- Normally open contact with 2 A for additional control options
- Space-saving design with a width of 45 mm
- Complies with the EN 60947-4-1 standard for safety and quality.

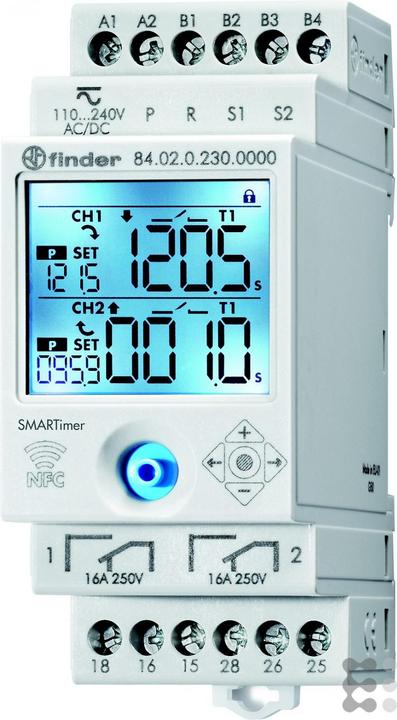

7. Finder Timer for
Programmable in "Smart" mode via smartphone using NFC communication or in "Classic" mode with the joystick. Large backlit display for good readability of all information during the programming phase and normal operation. Flexible inputs in both channels with 25 functions each allow for the programming of additional new functions. Adjustable times up to 4 digits between 0.1 seconds and 9999 hours. Large display for showing adjustable times, time progression, functions, input commands, and output contacts.
8. Finder 80010240N000 80.01.0.240.N000 Zeitrelais 250 V/AC, 400 V/AC 1 St. Zeitbe
The multifunctional time relay from Finder, model 80010240N000, is designed for mounting on DIN rails and offers a wide range of functions for the time control of electrical circuits. With a width of only 17.5 mm, it is compact and space-saving. The relay features a changeover contact suitable for loads of up to 16 A at 250 V AC. Programming is conveniently done via NFC, allowing for easy adjustment of settings. The various operating modes, including on-delay and off-delay, provide flexibility for different applications. The time range extends from 0.1 seconds to 24 hours, enabling precise control. The device is designed for a supply voltage of 12-240 V DC/AC at 50/60 Hz and offers an IP 20 protection rating, making it suitable for use in dry indoor environments.
- Programmable via NFC for easy adjustments
- Versatile functions such as on-delay and off-delay
- Time range from 0.1 s to 24 h for flexible applications
- Suitable for loads up to 16 A at 250 V AC
- Compact design for mounting on DIN rails.

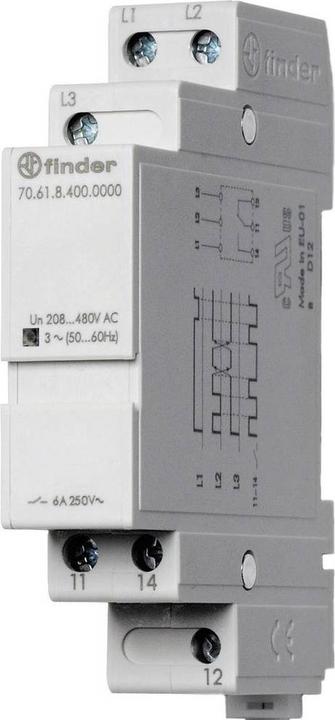

9. Finder Mains monitoring relay 70.61.8.400.0000 70.61.8.400.0000 3-phase mains monitoring (208
Description Mains monitoring relay 70.61.8.400.0000 Multifunctional with safety logic - opens the contact when a fault is detected. Control elements adjustable at the front. Colored LED status display. For DIN EN 60715 TH35 rail. Technical data: Version: 3-phase mains monitoring (208 - 480 V/AC), phase sequence, phase failure Switch-off delay: 0.5 s Operating voltage: (50 - 60 Hz) 208 - 480 V/AC Switch-on current: Max. 15 A Switch-on delay: 0.5 s Contact type: 1 changeover contact Contact material: AgCdO Rated voltage range: (50 - 60 Hz) 170 - 500 V Switching voltage: 250 V/AC/max. 400 V/AC Switching current: 6 A Protection class: IP20 Dielectric strength: (supply/contacts) 5 kV, (open contacts) 1000 V/AC Temperature range: -20 - +50 °C Type: 70.61.8.400.0000 Further technical data: Switching capacity AC1: Max. 1500 VA Switching capacity AC15: Max. 250 VA 1-phase motor load, AC3 operation (230 V): 0.185 kW Note: Approvals: cULus.
Relays
CHF60.95
Finder Mains monitoring relay 70.61.8.400.0000 70.61.8.400.0000 3-phase mains monitoring (208
10. Finder Clock generator asymetric 1W, 12-240VAC/DC,16A 80.91.0.240.0000
The Finder time relay asymmetrical 80.91.0.240.0000 is a versatile timing relay designed for a wide range of applications in automation technology. With a broad time range of 0.1 seconds to 20 hours, this device allows for precise control of electrical loads. It is suitable for both AC and DC applications, with a nominal voltage of 12 to 240 VAC/DC and a maximum switching current of 16 A. The relay is equipped with a changeover contact made of high-quality silver-nickel material, ensuring reliable performance. Installation is straightforward, as the device is designed for DIN rail mounting and features screw terminals. The IP20 protection rating ensures that the relay can be used in dry indoor environments. This timing relay is ideal for applications requiring time-controlled operation and offers high flexibility through its multifunctional features.
- Multifunctional time relay with a time range of 0.1 s to 20 h
- Suitable for AC and DC with a nominal voltage of 12-240 VAC/DC
- Maximum switching current of 16 A and switching capacity of up to 4 kVA
- Easy mounting on DIN rails with screw terminals
- Robust design with IP20 protection rating for use in dry indoor environments.
