Best Televes products in the LNB downconverter category
On this page you'll find a ranking of the best Televes products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Televes KLT1550
Set consisting of a WideBand LNB with RF output that captures the entire frequency spectrum of a satellite and transmits it through 2 outputs (V-H) in a frequency range between 290 and 2340 MHz, along with an optical transmitter. This transmitter has two satellite inputs where it receives the RF signal from the LNB, as well as a third input for terrestrial input signals (88-694 MHz). The optical output signal is provided via an FC/UPC connector and can be split into up to 32 lines in the 1550 nm window with an optical power of 8 dBm.
Additionally, the kit includes:
- Power supply for the transmitter, with a 3.5mm to F-type adapter cable for EU and UK plugs
- Caps
Highlights
- For installations with up to 32 optical splits
- Conversion and merging of terrestrial and satellite signals
- FC/PC optical connector and F-type connector for RF
- Can be mounted externally (on a satellite mast) or internally (on a wall or in a cabinet)
Good to know
Wideband Technology
WideBand (also known as FullBand) technology refers to a broadband transmission technique that utilizes a large frequency range. In WideBand TV systems, users have access to a large portion or the entire frequency spectrum. This technology can be used in combination with fiber optic systems where long cable runs are required, or in pure coaxial systems in combination with multi-switches that are adapted to this technology.
With WideBand technology, an LNB captures a complete satellite signal and distributes it through two universal outputs (vertical -V- and horizontal -H-), each with a combination of High (H) and Low Band (L), in a frequency range between 290 and 2340 MHz.
Despite the fact that Quattro technology is currently the most widely used technology in TV systems, WideBand technology offers significant advantages.
2. Televes SPU44EN
New LNB series from Televes with excellent reception characteristics and low power consumption. The low noise figure of 0.3 dB typical ensures trouble-free reception. The extra-long weather protection is pulled out from the inside and, like the rest of the housing, is made of weather-resistant plastic. Very easy to install.
3. Televes Preisner SP44EN 10.7
Low noise figure of 0.3 dB typical, suitable for offset mirrors with a feed receptacle of 40 mm. Operating temperature ranges from -40° to +60° C. Waterproof and weatherproof plastic housing with an IP 68 rating, featuring weather protection that can be extended from the inside to the outside.
Main features and technical details:
- Input frequency range: 10.7 - 11.7 GHz
- Oscillator frequency: 9.75 - 10.6 GHz
- Gain: 60 dB
- Noise figure: 0.3 dB
Connectors and interfaces:
- Number of RF connectors: 4
- Energy consumption: 150 mA
Weight and dimensions:
- Feedhorn diameter: 4 cm
- Product color: Gray.

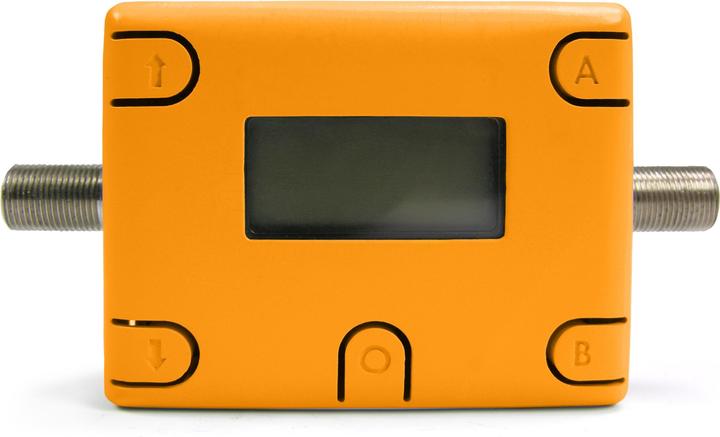

4. Televes Programmer for SCR-LNB SPP
With the programming unit, all parameters of the dLNBs can be checked and edited. Up to 5 frequency plans (configurations) can be stored on it and transferred to the dLNB as needed.
Highlights
- Used for system configuration and diagnostics
- Up to 5 configurations can be saved on the unit
- Easy operation with just 3 control buttons: up/down, back, select
Features
- USB to Mini USB connection cable included for programming the device on a PC
- Two F-connectors for connecting the LNB and a receiver/measurement device for power supply
Physical Data
- Net weight: 168 g
- Gross weight: 168 g
- Width: 99 mm
- Height: 52 mm
- Depth: 25 mm
- Main product weight: 168 g.

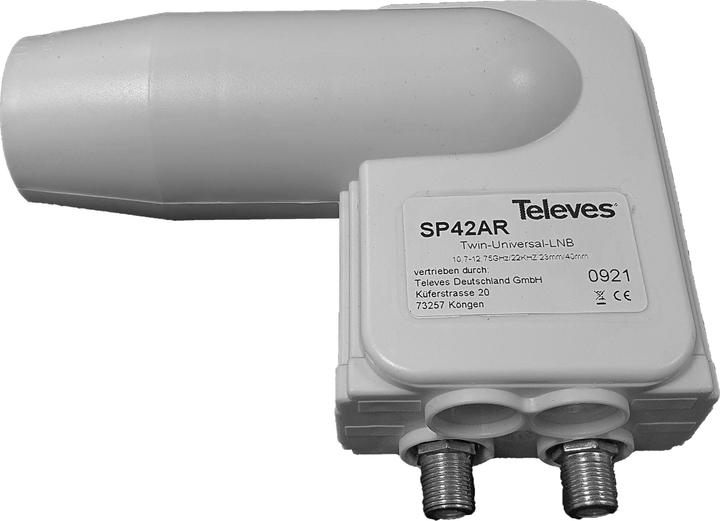

5. Televes Feed system SP 42 AR DIGITAL 3 degrees TWIN Feed holder 23/40mm
Televes Twin Feed System SP42AR
Manufacturer: Televes
Designation: Twin Feed System 40mm for Multifeed 3°
Type: SP42AR
Design: Twin LNB
Color: other
With protective housing: yes
Integrated multiswitch: no
Number of outputs: 2
Terrestrial feed: no
Mounting: 40 mm
The Twin Feed System with rocket feed horn for Multifeed reception from 3° satellite spacing. The power supply is provided via the receiver with a current consumption of approximately 120 mA. With a noise figure of a maximum of 0.3 dB typical and the new compact reception technology in a waterproof, weather-resistant housing with a plug-in weather protection, the SP42AR is the ideal feed system.
LNB downconverter
CHF69.90
Televes Feed system SP 42 AR DIGITAL 3 degrees TWIN Feed holder 23/40mm
Single LNB, 40mm

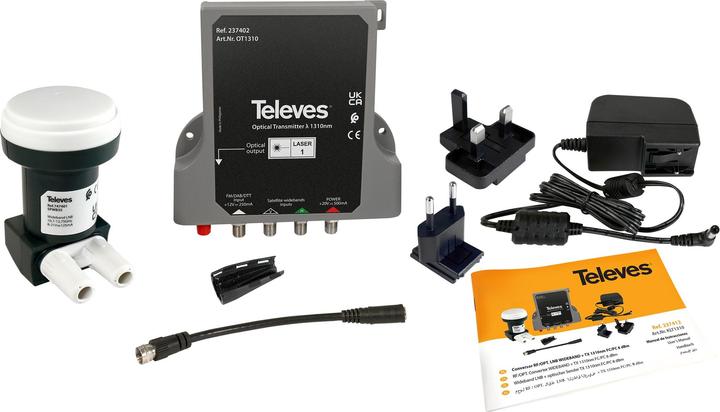

6. Televes KLT1310 Kit Wideband LNB/Optical Transmitter
Set consisting of a WideBand LNB with RF output that captures the entire frequency spectrum of a satellite and transmits it via 2 outputs (V-H) in a frequency range between 290 and 2340 MHz, as well as an optical transmitter. This features two satellite inputs, where it receives the RF signal from the LNB, and a third input for terrestrial input signals (88-694 MHz). The optical output signal is provided via an FC/UPC connector and can be split into up to 32 lines in the 1310 nm window with an optical power of 8 dBm.
Additionally, the kit includes:
- Power supply for the transmitter, with a 3.5mm to F-type adapter cable for EU and UK plugs
- Caps
Highlights
- For installations with up to 32 optical splits
- Conversion and merging of terrestrial and satellite signals
- FC/PC optical connector and F-type connector for RF
- Can be mounted externally (on a satellite mast) or internally (on a wall or in a cabinet)
Good to know
Wideband Technology
WideBand (also known as FullBand) technology refers to a broadband transmission technique that utilizes a large frequency range. In WideBand TV systems, users have access to a large portion or the entire frequency spectrum. This technology can be used in combination with fiber optic systems where long cable runs are required, or in pure coaxial systems in combination with multi-switches that are adapted to this technology.
With WideBand technology, an LNB captures a complete satellite signal and distributes it through two universal outputs (vertical -V- and horizontal -H-), each with a combination of high (H) and low-band (L), in a frequency range between 290 and 2340 MHz.
Despite the fact that Quattro technology is currently the most widely used technology in TV systems, WideBand technology offers significant advantages.

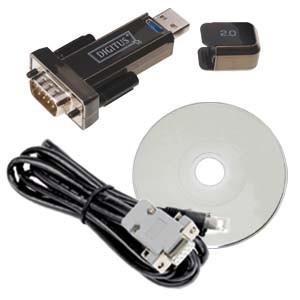

7. Televes UCDC T-0X - Programming software
To connect the T.0X module to a PC for configuring headends with the TSuite software.
The set includes:
- Connection cable between module (RJ45) and COM port (RS232)
- USB-COM (RS232) adapter with drivers
- USB cable (plug-socket)
Physical data:
- Net weight: 280 g
- Gross weight: 280 g
- Width: 35 mm
- Height: 74 mm
- Depth: 15 mm
- Main product weight: 24 g.
8. Televes Quattro LNB converter

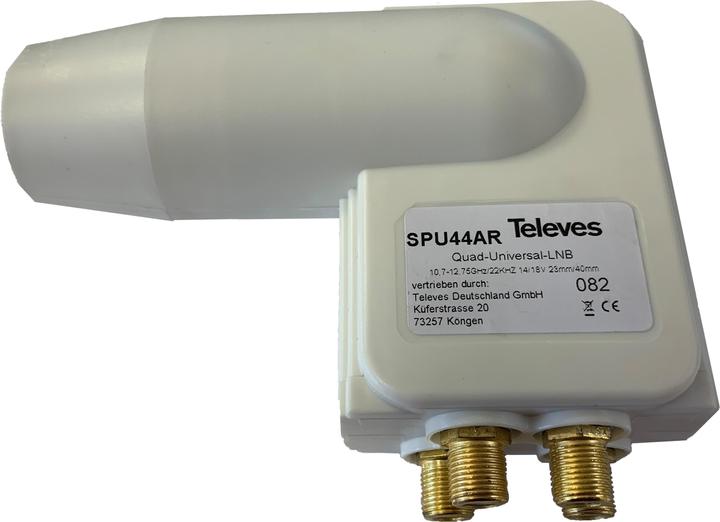

9. Televes Feed System Quad 40mm f.Multifeed 3Gr SPU44AR
Televes Feed System Quad SPU44AR
Manufacturer: Televes
Designation: Feed System Quad 40mm for Multifeed 3Gr
Type: SPU44AR
Design: Quad LNB
Color: other
With protective housing: yes
Integrated multiswitch: yes
Number of outputs: 4
Terrestrial feed: no
Mounting: 40 mm
The Quad feed system with rocket feed horn for multifeed reception from 3° satellite spacing. The power supply is provided via the receiver with a current consumption of approximately 150 mA. With a noise figure of a maximum of 0.3 dB typical and the new compact reception technology in a waterproof, weather-resistant housing with a detachable weather cover, the SPU44AR is the ideal feed system.
LNB downconverter
−13%
CHF103.– was CHF118.–
Televes Feed System Quad 40mm f.Multifeed 3Gr SPU44AR
Quad LNB, 40mm

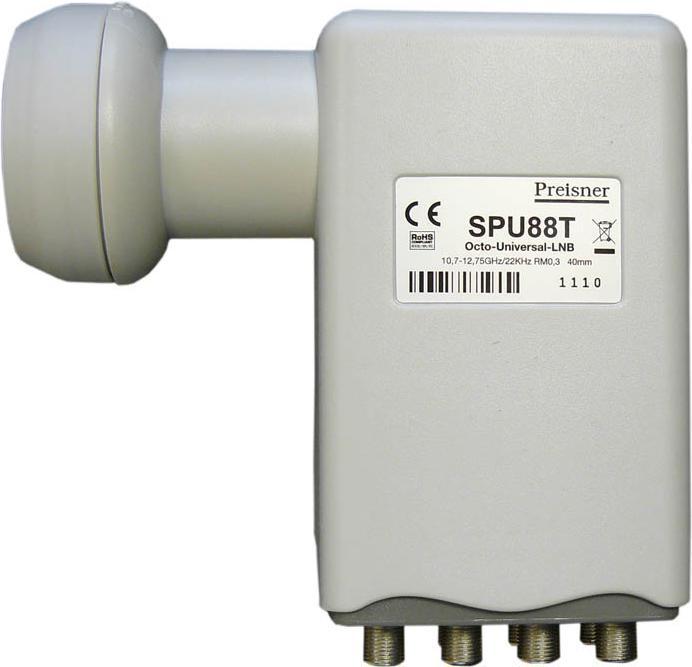

10. Televes Preisner SPU88T 10.7
The Televes SPU88T 10.7 is a highly advanced Octo LNB designed for use in satellite reception systems. With eight universal outputs, it allows for the connection of multiple receivers, with all four polarities (horizontal/vertical, high/low) available at each output. The device is equipped with a robust protective housing that shields it from weather conditions and has an IP66 certification, making it ideal for use in extreme weather. The LNB offers a low noise figure of 0.3 dB and a high signal gain of 60 dB, resulting in excellent signal quality. It is compatible with 40-mm feed holders, allowing for easy installation. The operating temperature ranges from -40 °C to +60 °C, highlighting the versatility of the device.
- Low noise figure of 0.3 dB for optimal signal quality
- High signal gain of 60 dB
- IP66 certified, waterproof housing for weather resistance
- Compatible with 40-mm feed holders
- Easy installation and connection
- Operating temperature range of -40 °C to +60 °C.
