Best Axing products in the Digital TV receiver accessories category

On this page you'll find a ranking of the best Axing products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Axing Tvs 8-01

2-way, 3-way distribution for small terrestrial and CATV networks. TVS 21-00 plug-on type on antenna wall outlets of any design.

2. Axing 2-fold distributor BVE 2-01P 51218 MHz design 01

The BVE 2-01P 2-way splitter from Axing is a high-quality accessory for satellite installation that enables reliable signal distribution for digital TV receivers. With a frequency range of 5 to 1218 MHz, this splitter is suitable for various multimedia applications. The hum-decoupled inputs and outputs ensure interference-free signal transmission, while the high return loss and intermodulation resistance optimize the quality of the received signal. The die-cast housing not only provides a robust construction but also includes a grounding terminal and a separate mounting base for easy installation. The splitter meets the shielding requirements of Class A with a shielding factor of over 90 dB, making it an excellent choice for demanding applications in cable and satellite television.

- High return loss for improved signal quality
- Hum-decoupled inputs and outputs to minimize interference
- Multimedia-compatible for versatile applications
- Robust die-cast housing with grounding terminal
- Class A shielding factor of over 90 dB.

3. Axing EOC 30-21

The EOC-Master is connected to the internet via Gigabit Ethernet. The EoC devices establish an encrypted Ethernet-over-Coax network using the G.hn standard over the coaxial cable of the TV wiring, while still transmitting television and radio. The EOC 30-xx utilizes the return channel range from 5 to 204 MHz, achieving a net data rate of 1800 Mbps (PHY) due to its bandwidth. This is easily feasible with a satellite reception system, but in a CATV network, it is only possible if the forward path frequency range starts at 258 MHz. Each endpoint has 2 Gigabit Ethernet ports, allowing for the connection of standard network devices such as PCs, smart TVs, gaming consoles, or streaming boxes, as well as switches for even more connections. The EOC 30-02 endpoints also offer Wi-Fi to wirelessly connect smartphones, tablets, and laptops. All settings, including those for the Wi-Fi, are configured at the master unit. A security-oriented administration with signal encryption and access protection ensures the highest possible security for users.

4. Axing CFS 97-48 F

The Axing CFS 97-48 F is a high-quality compression F connector specifically designed for use with coaxial cables with a dielectric diameter of up to 4.9 mm. This connector features easy and quick assembly, preventing deformation of the cable dielectric due to radial crimping forces. The metal construction with an anti-allergenic NITIN coating provides effective corrosion protection and high return loss. The CFS 97-48 F is suitable for frequencies from 0 to 2400 MHz and offers an impedance of 75 Ohms as well as a shielding effectiveness of over 100 dB, making it a reliable choice for digital TV applications. With a key width of 11 mm, the connector is easy to handle and can be assembled using the compression tool BWZ 7-00. It is available in packs of 50 pieces, making it ideal for professional installations.

- Easy and quick assembly without deformation of the cable dielectric
- High return loss for improved signal quality
- Anti-allergenic NITIN coating for corrosion protection
- Suitable for coaxial cables with a dielectric diameter of up to 4.9 mm
- Shielding effectiveness of over 100 dB for optimal signal transmission.

5. Axing TVS 10

This broadband amplifier is used to compensate for power losses due to long cable lengths or system expansions, as well as to improve weak antenna signals. The two-stage amplifier is housed in an interference-resistant enclosure and is connected behind any existing amplifier system.

6. Axing SAT amplifier SVS 2-01 9502400 MHz, 20 dB

Axing SVS 2-01 Axing SVS 2-02

- DiSEqC compatible
- DC pass-through
- The amplifier is powered via the coaxial cable
- 22 kHz compatible
- Single cable compatible
- SAT gain: 20 dB.

7. Axing Two-device distributor

Splitter for two TV or radio sets
- For the connection of two TV or radio receivers
- Also suitable for combining two signals
- Solid die-cast zinc housing
- Frequency range 0.1 to 2200 MHz
- Dimensions 55 × 34 × 18 mm.

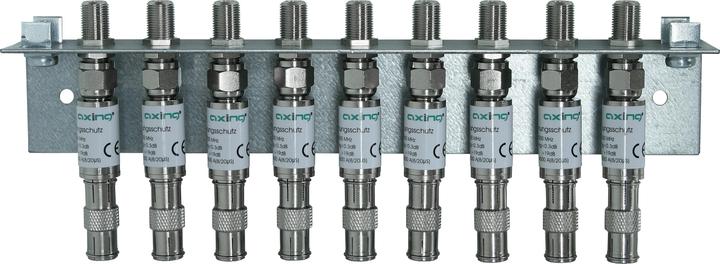

8. Axing Grounding bracket QEW 9-20 Overvoltage protection, 9-fold

Accessory type: SAT installation accessories.

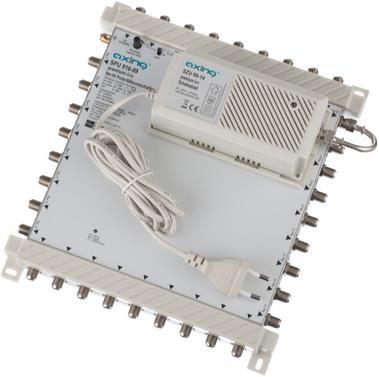

9. Axing SPU910-09, DiSEqC multi-switch 9/10

- Active terrestrial path
- Terrestrial adjustable and switchable to passive
- Compact design due to front-side SMPS (mountable up to 10 m from multiswitch)
- Cascadable
- Suitable for Quad LNB
- Suitable for return path
- AEC and multifunction LED
- 9 termination resistors CFA 11-00 included.

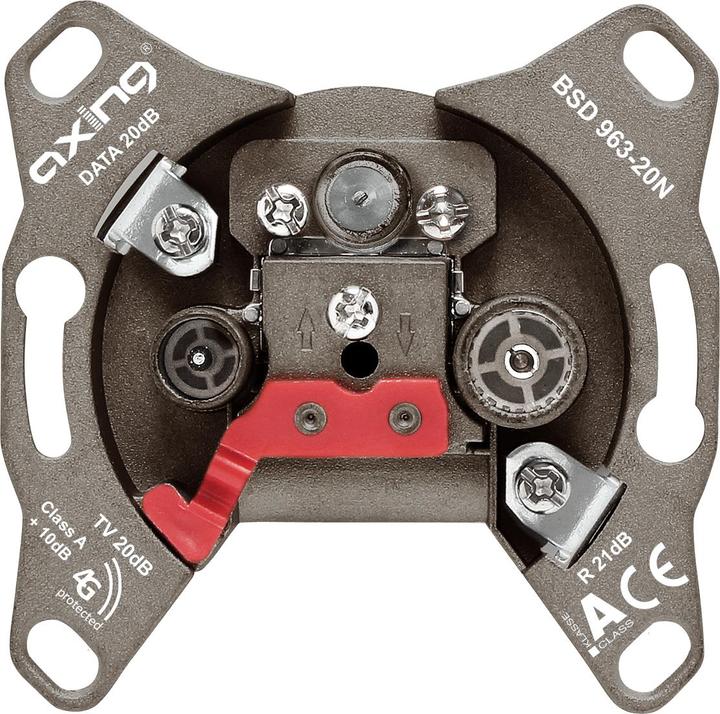

10. Axing BSD 963-20N R/TV+SAT Grey socket outlet (BSD 963-20)

Main features:
- Jack type: R/TV+SAT
- Product color: Gray
- Jack quantity: 3
- Certification: CE

Weight & dimensions:
- Width: 68 mm
- Depth: 39 mm
- Height: 68 mm.
