Best WaveShare products in the Development board accessories category

On this page you'll find a ranking of the best WaveShare products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. WaveShare PoE HAT for Raspberry Pi 5

With this module, it is possible to power your Raspberry Pi and connect it to the network using a single Ethernet cable.

2. WaveShare PCIe auf M.2 SSD HAT+ (B) mit PoE für Raspberry Pi 5

The PCIe to M.2 SSD HAT+ (B) combines Power over Ethernet (PoE) with PCIe expansion for the Raspberry Pi 5. This innovative solution supports M.2 NVMe SSDs in the formats 2230, 2242, 2260, and 2280, significantly enhancing the storage performance of the Raspberry Pi. With the IEEE 802.3af/at PoE standard, this HAT provides both network connectivity and power through a single cable. Thanks to support for PCIe Gen2 and Gen3, it offers high data transfer rates and enables booting directly from the SSD. The built-in 40-pin GPIO header allows for the use of additional HATs. With an integrated heatsink and status indicator LEDs, stable and reliable performance is ensured.

Recommended Accessories:
- Raspberry Pi 5
- M.2 SSD
- Raspberry Pi 5 Active Cooler with Fan (B)
- Ethernet Cable

Features:
- PoE Function: Supports the IEEE 802.3af/at standard for network and power supply over a single cable.
- NVMe Support: Compatible with NVMe SSDs in sizes 2230 to 2280 for maximum flexibility.
- High Performance: PCIe Gen2/Gen3 modes ensure fast read and write speeds.
- Power Outputs: 5V up to 4.5A and 12V up to 2A for Raspberry Pi and additional devices.
- Expandability: Standard 40-pin GPIO header for the use of other HATs.
- Compatibility: Specifically designed for the Raspberry Pi 5, not compatible with older models.

Technical Specifications:
- Manufacturer: Waveshare
- Manufacturer SKU: 29320
- Input Voltage: 37V – 57V DC via PoE.
- Power Output: 5V 4.5A (GPIO), 12V 2A (2-pin connector).
- Network Standard: IEEE 802.3af/at.
- SSD Support: NVMe protocol, formats 2230, 2242, 2260, 2280.
- PCIe Version: Gen2/Gen3.
- Compatibility: Only with Raspberry Pi 5
- Dimensions: 85 x 56 x 23.5 mm
- Weight: 66 g

Package Contents:
- 1x PCIe to M.2 SSD HAT+ (B) with PoE for Raspberry Pi 5
- 1× 16-pin PCIe cable
- 1× SSD mounting screw
- 1× screw set.

3. WaveShare Raspberry Pi 5 active cooler with fan (B)

The Raspberry Pi 5 Active Cooler with Fan (B) is a state of the art cooling solution designed specifically for the Raspberry Pi 5. This system combines a blower fan with an aluminium heat sink to ensure optimal heat dissipation. With an input voltage of 5V DC, this cooler offers a maximum airflow rate of 1.39 CFM at a speed of 8000±10% RPM. Installation is simple and user-friendly as the thermal pads and spring-loaded push pins allow for quick and secure mounting. This cooler is the ideal choice for anyone who wants to keep their Raspberry Pi 5 cool and stable under intensive workloads.

Features:
Specially designed for the Raspberry Pi 5.
Combines a blower fan with an aluminium heat sink.
Maximum airflow rate of 1.39 CFM.
Fan speed of 8000±10% RPM.
Easy installation with thermal pads and spring-loaded push pins.

Application examples:
Ideal for projects requiring high computing power.
Perfect for use in warm environments to avoid overheating.
Suitable for long-lasting operating times without loss of performance.

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 26412
Input voltage: 5V DC
Fan speed: 8000±10% RPM
Maximum airflow rate: 1.39 CFM
Material: Anodised aluminium
Dimension: 64 x 42.5 x 13.7mm
Weight: 16.1g

Scope of delivery:
1x active cooler with fan (B) for Raspberry Pi 5 (Raspberry Pi 5 not included)
3x thermal pads.

4. WaveShare Raspberry Pi 5 aluminium housing with fan

Optimise the performance of your Raspberry Pi 5 with the high-quality aluminium case, specially designed for maximum cooling. This case features integrated heat sinks and a built-in fan to keep your Raspberry Pi 5 cool even under intense load. The striped grooves on the top and bottom expand the heat dissipation area for fast passive cooling, while the uniform heat sink columns together with the fan ensure even more effective heat dissipation. The precise opening design maintains access to all connectors and GPIO pins without compromising Wi-Fi and Bluetooth signal strength. The simple assembly makes it a breeze to install your Raspberry Pi securely and firmly.

Features:
Made from high quality aluminium for optimal heat dissipation.
Integrated heat sinks and built-in fan for active cooling.
Striped grooves to extend the heat dissipation surface.
Precise openings for unrestricted access to all connections.
Easy installation with supplied screws.
Compact and robust design for durability and stability.

Application examples:
Intensive computing projects that require constant cooling.
Development and programming work where the Raspberry Pi runs for long periods of time.
Educational projects that require reliable hardware performance.
Media centres and gaming setups that require effective cooling.

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 26714
Material: Aluminium
Compatibility: Raspberry Pi 5
Cooling: Integrated fan and heat sink
Design: Striped grooves for improved heat dissipation
Port access: Precise openings for all ports
Installation: Simple with screws
Dimension: 90.5 x 65 x 33mm
Weight: 188g

Scope of delivery:
1x housing parts and cooling fan
4x thermal adhesive tape
1x L-shaped Allen key
1x key cap
1x screw package.

5. WaveShare Raspberry Pi 5 aluminium housing with dual fan

The Raspberry Pi 5 Aluminum Case with Dual Fans is a robust and efficient solution to optimally protect and cool your Raspberry Pi 5. This case is made from a high-quality aluminum alloy, known not only for its durability but also for its excellent thermal conductivity. With two quiet cooling fans and an aluminum heatsink, this case ensures rapid heat dissipation, enhancing the performance and stability of your Raspberry Pi 5 under various operating conditions. The precise cutouts for all ports and the easy assembly make it a user-friendly option for Raspberry Pi enthusiasts. Whether for gaming, media center applications, or IoT projects, this case ensures that your Raspberry Pi 5 remains cool, protected, and operational.

Features:
- Made from high-quality aluminum alloy, offering durability and excellent heat dissipation.
- Two quiet cooling fans provide efficient heat dissipation.
- Precise cutouts allow easy access to all ports.
- Easy installation with top and bottom covers and thermal adhesive tapes.
- Accelerates heat dissipation and ensures stable operation of the Raspberry Pi 5.

Application Examples:
- Ideal for demanding Raspberry Pi projects that require efficient cooling.
- Perfect for use as a media center to prevent overheating during long operating times.
- Suitable for IoT applications where reliability and durability are paramount.

Technical Specifications:
- Manufacturer: Waveshare
- Material: Aluminum alloy
- Cooling: Dual fans
- Compatibility: Raspberry Pi 5
- Dimensions: 87 x 56 x 40 mm
- Weight: 71 g

Delivery Contents:
- 1x Aluminum case (Raspberry Pi 5 not included)
- 1x Dual cooling fans
- 1x L-shaped hex key
- 4x Thermal adhesive tape
- 1x Screw package.

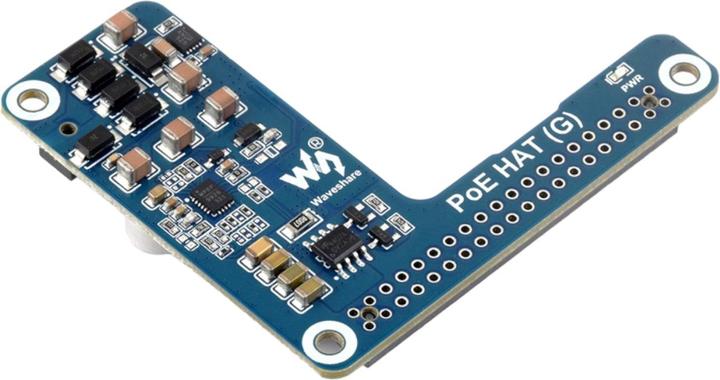

6. WaveShare PoE HAT (G) for Raspberry Pi 5

With the PoE HAT (G) for the Raspberry Pi 5, you can supply your Raspberry Pi with both power and a network connection via a single Ethernet cable. The HAT supports the IEEE 802.3af/at network standard and delivers stable power with an output of 5V and 5A. Thanks to its compact design, it can be easily integrated into the official Raspberry Pi 5 housing. It uses a non-isolated switching power supply for an efficient power supply and is equipped with a standard 40-PIN GPIO header. This PoE HAT is the perfect choice for projects where a reliable and space-saving power supply is required. Ideal for use in network-based applications, it allows you to operate your Raspberry Pi flexibly in different environments.

Recommended accessories:
Ethernet cable
Raspberry Pi 5

Features:
The PoE HAT supports the IEEE 802.3af/at network standard and offers high compatibility.
It provides an output voltage of 5V and a current of up to 5A, which enables a stable and efficient power supply.
Thanks to its compact design, the HAT can be easily integrated into the official Raspberry Pi 5 housing.
The HAT is equipped with a non-isolated switching power supply that ensures reliable and consistent power output.
It has a standard 40-PIN GPIO header that allows easy installation and connection to the Raspberry Pi 5.

Application examples:
Powering a Raspberry Pi 5 in a network server project directly via an Ethernet cable.
Use in a smart home automation system in which the Raspberry Pi 5 is operated centrally via PoE.
Use in a monitoring project in which several Raspberry Pi 5 devices are supplied with power and networked via PoE.

Documentation:
Waveshare Wiki

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 27670
PoE power input: 38V to 57V DC
Power output: 5V 5A maximum
Network standard: IEEE 802.3af/at POE
Dimension: 57 × 65 x 11 mm
Weight: 20g

Scope of delivery:
1x PoE HAT (G) for Raspberry Pi 5.

7. WaveShare Industrial metal housing (D) for Raspberry Pi 5

The industrial metal case (D) for Raspberry Pi 5 from WaveShare offers a robust and versatile solution for protecting and expanding the Raspberry Pi 5. It has been specifically designed for demanding applications and allows for easy integration of additional HATs or expansion boards thanks to its generous internal volume. The precisely crafted cutouts are optimally aligned with the interfaces of the Raspberry Pi 5 and provide optional openings for antenna connections to enhance signal quality. The case is equipped with mounts for wall and rail installation, enabling flexible installation in industrial environments. Additionally, it is compatible with the official fan and other cooling solutions to ensure optimal cooling even during intensive use. Assembly is straightforward through screw connections, and the removable panels allow for customization to individual requirements without compromising the structure of the case. This product is ideal for professional and industrial projects and integrates seamlessly into any technical environment.

- Robust design for demanding applications
- Large internal volume for additional HATs and expansions
- Precise cutouts for optimal interface alignment
- Flexible mounting options with wall and rail brackets
- Compatible with cooling solutions for efficient heat dissipation.

8. WaveShare 5inch Capacitive Touch Display for Raspberry Pi DSI Interface 1024x600

The 5-inch capacitive touch display for Raspberry Pi is an excellent addition to your development projects. With a resolution of 1024x600 pixels, it provides a clear and sharp image representation, making it ideal for detailed applications. The IPS panel allows for a wide viewing angle of 178 degrees, ensuring that colors and contrasts remain vibrant and consistent from various perspectives. The DSI connection ensures easy installation and a reliable connection without the need for additional drivers. The robust, tempered glass surface protects the display from scratches and damage, while the 5-point multitouch function enables precise control. The display is ready to use with Raspberry Pi OS and supports various Raspberry Pi models, making it a versatile solution for developers. A stable metal stand is included to ensure safe and comfortable use.

- Capacitive touch display with 5-point multitouch function for precise control
- Durable tempered glass surface with a hardness of up to 6H for added protection
- Easy installation via DSI connection without additional drivers
- Brightness adjustable via software for personalized use
- Compatible with various Raspberry Pi models, ready to use with Raspberry Pi OS.

9. WaveShare 8MP IMX219 camera 120 FOV for Raspberry Pi 5

The 8MP IMX219 camera with an extended field of view of 120° is tailor-made for use with the Raspberry Pi 5. Equipped with Sony's powerful IMX219 image sensor, this camera achieves a high resolution of 3280×2464 pixels. Its MIPI-CSI interface allows for a seamless connection with the Raspberry Pi 5, ensuring smooth integration into various projects. From photography to security systems and image processing projects, this camera promises sharp and clear images. A flexible 200mm CSI cable is included for easy installation. With an extended field of view of 120° and distortion of less than 13.6%, it is particularly suitable for applications requiring a wide field of view.

Features:
- 8 Megapixel resolution for detailed images.
- Extended field of view of 120° for comprehensive visibility.
- MIPI-CSI interface for direct connection to the Raspberry Pi 5.
- Distortion of less than 13.6% for high-quality recordings.
- Includes a flexible 200mm CSI cable for easy installation.
- Compatible with all Raspberry Pi models for versatile applications.
- Compact design and easy installation with 4 screw holes.

Application Examples:
- Panorama shots and wide-angle photography.
- Surveillance cameras with a wide field of view.
- Image processing projects that require a broad perspective.
- Creation of 360° content and interactive art installations.

Technical Specifications:
- Manufacturer: Waveshare
- Manufacturer SKU: 26185
- Sensor: IMX219
- Resolution: 3280×2464 pixels (8MP)
- CMOS Size: 1/4 inch
- Aperture (F): 2.0
- Focal Length: 1.79mm
- Field of View: 120°
- Distortion: <13.6%
- Dimensions: 25×24mm
- Weight: 9.2g

Package Includes:
- 1x 8MP IMX219 Camera 120 FOV for Raspberry Pi 5
- 1x 200mm flexible CSI cable for Raspberry Pi 5.

10. WaveShare PCIe to M.2 HAT SSD adapter for Raspberry Pi 5

Discover the PCIe to M.2 HAT SSD adapter, specially designed for your Raspberry Pi 5. This powerful adapter board supports the NVMe protocol and enables extremely fast read and write speeds, ideal for high-performance applications. The adapter fits M.2 solid state drives of sizes 2230 and 2242 and offers support for Gen2 and Gen3 mode. The connection is made via a 16-pin cable, based on the 16-pin PCIe interface of the Raspberry Pi 5. Additionally, there are two LED indicators on the board that clearly show the operating status. A specially reserved airflow opening for the Pi5 fan ensures improved cooling. Installation is straightforward, and the board comes with an EEPROM chip for additional functionality.

Recommended accessories:
- Raspberry Pi 5 active cooler with fan (B)
- Raspberry Pi 5
- M.2 SSD size 2230 or 2242

Features:
- Compatible only with the Raspberry Pi 5
- Supports NVMe protocol M.2 SSDs
- Compatible with M.2 SSD sizes 2230 and 2242
- Supports PCIe Gen2 and Gen3
- Onboard dual LED for operating status
- Built-in EEPROM chip
- Power monitoring chip for monitoring the SSD status
- Airflow opening for improved cooling
- Perfect for Home Assistant

Application examples:
- Fast booting of your Raspberry Pi 5 from an M.2 SSD
- Increase data throughput speed for development projects
- Use in IoT applications that require fast memory access

Technical data:
- Manufacturer: Waveshare
- Manufacturer SKU: 26583
- Part number: PCIe TO M.2 HAT+
- Interface: PCIe ×1 Gen2/Gen3
- Size of compatible M.2 SSDs: 2230, 2242
- Operating indicators: PWR (steady light), ACT (flashing during read/write access)
- Dimension: 65 x 49 x 5.5 mm
- Weight: 42.8 g

Scope of delivery:
- 1x PCIe to M.2 HAT SSD adapter for Raspberry Pi 5 (Raspberry Pi 5, SSD, and cooling fan not included)
- 1x 2x20-pin header
- 1x 16P cable, 40 mm
- 1x mounting material set.
