1. Roline 12.02.1005

The Roline media converter 12.02.1005 enables the connection of RS422/RS485 devices to the RS232 port of a PC. This converter offers galvanic isolation with an isolation of up to 3000 VDC, ensuring safe data transmission. It is fully compatible with serial COM ports and features automatic send-receive direction switching (Auto-Toggling). With a maximum data transfer rate of 115 kbit/s, this converter is ideal for various applications. Connection options include a DB9 socket for RS-232 and a 7-pin terminal block for RS-422/485. The converter requires no software for setup, simplifying installation. Additionally, it provides 15 kV ESD protection for all signals and surge protection for RS-422/485 signals, enhancing reliability. The power supply is via a terminal block with a voltage range of 10 to 30 VDC, equipped with overvoltage protection.

- Galvanic isolation with 3000 VDC isolation
- Automatic send-receive direction switching
- Maximum data transfer rate of 115 kbit/s
- 15 kV ESD protection for all signals.


2. Roline Industrial converter RJ-45, FO 1000SX/LC

Complete wire-speed conversion of the Gigabit Ethernet signal. Automatic MDI/MDI-X link fault pass-through function. Numerous configuration options. Transparent conversion of 802.1Q packets. Low power consumption. DIN rail mountable. Operating voltage: +7 to +30 VDC. Operating temperature range: -20 ºC to +70 ºC. Two power connections: via screw terminal or DC socket.

Technical specifications:
Manufacturer: ROLINE
Part number: 21.13.1144
Product group: Network converter
Product type: Media converter
Shipping without RJ-45 port (Mbit/s): 1000
Fiber port (Mbit/s): 1000
Number of RJ-45 ports: 1
Number of fiber LC ports: 1
Fiber multimode Ethernet
Fiber standard: 1000Base-SX
Max. range fiber 50 µm: 500 m
Max. range fiber 62.5 µm: 220 m
Manageable: No
Technical features: -20 ºC to +70 ºC
Gross weight: 0.351 kg including packaging.

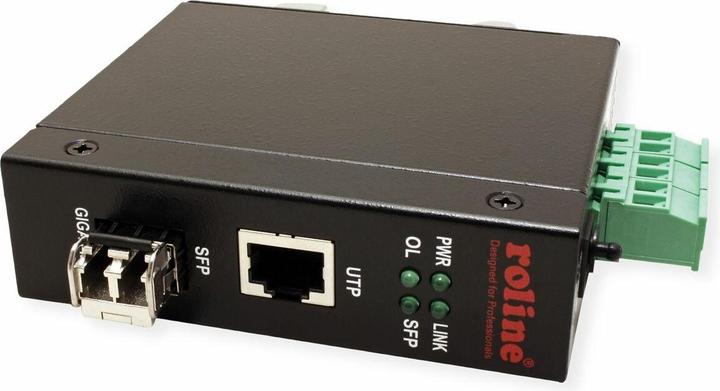

Actual product image Roline Industrial converter RJ-45, FO 1000SX/LC
Converters
CHF243.–

Roline Industrial converter RJ-45, FO 1000SX/LC

3. Roline RC-1000SX/LC media converter

These converters convert a Gigabit Ethernet TP port to fiber optic. Connections: RJ-45 on the TP side and Mini-GBIC slot on the fiber optic side. Mini-GBIC module SX: The maximum cable length on the fiber optic side is 220 m when using a 62.5/125 µm fiber and 500 m when using a 50/125 µm fiber. Includes Mini-GBIC module SX/LC. Dimensions (WxDxH): 72.5 x 108 x 23 mm. Color: gray. Power supply is provided via an included external power adapter. Note: The converters do not have a repeater function.

Scope of delivery: Converter, manual, plug-in power supply (7.5 V DC, 500 mA), Mini-GBIC module SX/LC.


Actual product image Roline RC-1000SX/LC media converter
Converters
CHF156.–

Roline RC-1000SX/LC media converter

4. Roline Compact media converter, SC 10/100TX to 100FX

This converter converts a Fast Ethernet TP port (RJ45) to multimode fiber optic (SC). It provides full wire speed conversion of the Fast Ethernet signal. Connections: RJ-45 on the TP side / SC on the fiber optic side. Auto-negotiation of 10/100 Mbit/s on the copper port. Auto MDI/MDI-X on the copper port. Transparent conversion of 802.1Q VLAN packets. Far End Fault Function (fault detection) on the fiber optic side. LEDs for power, TP speed, TP link, and FX link. Low power consumption (max. 1.53 W). Wall mounting is possible. Operating temperature range: 0 °C - +50 °C. Power supply via plug-in power supply or USB power supply. Dimensions: 64 x 59 x 21 mm (W x D x H).

Actual product image Roline Compact media converter, SC 10/100TX to 100FX
Converters
CHF96.90

Roline Compact media converter, SC 10/100TX to 100FX

5. Roline USB2.0-RS232 Ad.

The Roline USB 2.0 to RS-232 adapter is a versatile solution for connecting serial devices via a computer's USB port. With the ability to connect up to four serial devices simultaneously, this adapter provides an efficient way to integrate older peripherals into modern systems. The adapter is compatible with various USB versions, including USB 2.0, 1.1, and 1.0, and supports a data transfer rate of up to 115 Kbit/s. The built-in 15 KV ESD protection ensures safe usage, while the option to mount the adapter on a DIN rail allows for flexible installation. The Roline adapter is compatible with a wide range of operating systems, including various versions of Windows and Mac OS, making it a practical choice for different applications.

- Supports up to four serial DB9 connections
- Compatible with a variety of operating systems, including Windows and Mac OS
- Data transfer rate of up to 115 Kbit/s
- 15 KV ESD protection for all RS232 ports
- Easy mounting on DIN rail.


6. Roline Industrial Converter

The Roline Industrial Converter is a powerful media converter designed for use in demanding industrial environments. It supports a variety of network speeds, including 10Base-T, 100Base-TX, and 1000Base-T, allowing for seamless conversion between copper and fiber connections. With a maximum port speed of 1000 Mbps, this converter provides full wire speed conversion of the Fast Ethernet signal. The auto-negotiation feature ensures automatic speed adjustment, while the link fault pass-through function enables effective fault detection at the remote end. The converter is suitable for DIN rail mounting and is characterized by a low power consumption of only 2.6 watts. With an operating temperature range of -20 °C to +70 °C, it is ideal for use in harsh environments.

- Full wire speed conversion for optimal network performance
- Auto-negotiation for flexible speed adjustment
- Link fault pass-through for reliable fault detection
- Low power consumption of only 2.6 watts.


7. Roline Industry Mini Converter,10/100T-100SC

Full wire speed conversion of Fast Ethernet signals. Auto-negotiation for 10/100Mbps or fixed setting on the copper port. Auto MDI/MDI-X link fault pass-through function. Numerous configuration options. Transparent conversion of 802.1Q VLAN packets. Low power consumption. DIN rail mounting. Operating voltage: +5.5 to +50VDC: 2.6W (max.). Operating temperature range: -20 ºC to +70 ºC. DC input via terminal block or DC barrel connector. For a suitable power supply, we recommend using our model 21.13.1226. Technical specifications: Manufacturer ROLINE, Manufacturer number 21.13.1147, Product type media converter, Gross weight 0.232 kg including packaging.

Actual product image Roline Industry Mini Converter,10/100T-100SC
Converters
CHF184.–

Roline Industry Mini Converter,10/100T-100SC

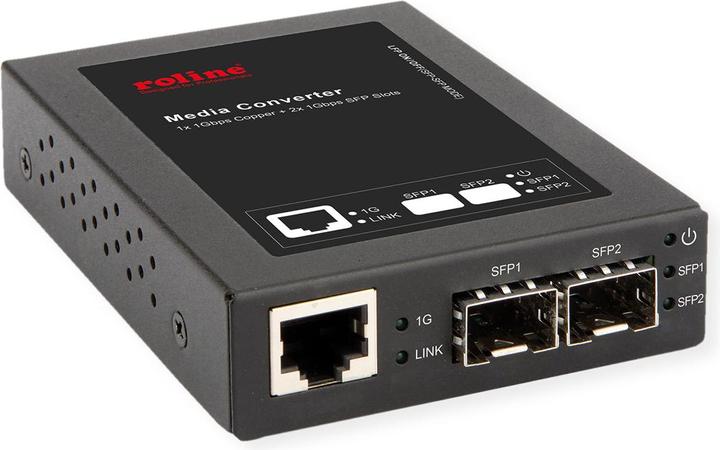

8. Roline Gigabit Konverter, RJ-45 - Mini-GBIC

To adapt different cabling within a LAN, fiber optic converters can be used to create a functional network. Whether for converting fiber optic to a classic twisted pair network with a mini-GBIC or for converting fiber optic to another fiber optic network with two mini-GBICs, the ROLINE Gigabit converter offers both options. The ROLINE Gigabit converter converts a Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely chosen using mini-GBIC modules. Mini-GBIC modules are available for SX/LC and LX/LC (10 km and 20 km). Connections: RJ-45 on the TP side / 2 x mini-GBIC slots on the fiber optic side. Power is supplied via an included external power supply. Dimensions: 102 × 74 × 23 mm. Delivery includes: converter, quick start guide, plug-in power supply (5V DC, 2A).

Actual product image Roline Gigabit Konverter, RJ-45 - Mini-GBIC
Converters
CHF203.–

Roline Gigabit Konverter, RJ-45 - Mini-GBIC

9. Roline Industrial converter RS232

Transparent conversion of RS-232 signal Automatic adjustment and conversion of received RS-232 bauds No separate configuration required Overvoltage protection on RS232 signal Optical isolation DIN rail mounting Operating voltage: +7 to +30VDC :(2.4W max.) Operating temperature range: - 20 ºC - +70 ºC Input DC via terminal block or DC hollow plug (6.3mm/2.0mm) As a suitable power supply we recommend the use of our 21.13.1226 Technical Data Manufacturer ROLINE Part Number 21.13.1141 Product Group Network Converter Product Type Media Converter Shipped no No. of Ports Fiber SC 1 Fiber Multimode Max. Range Fiber 50 µm 2 km Max. Range Fiber 62.5 µm 2 km manageable No Technical features - 20 ºC - +70 ºC Gross weight 0.34 kg / including packaging.

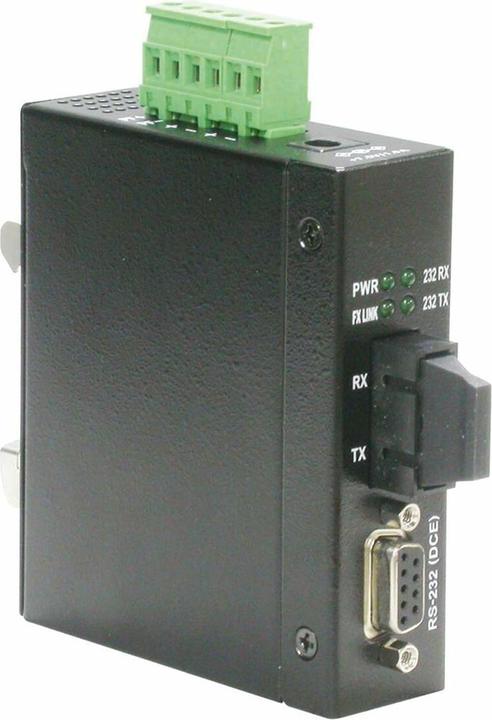

Actual product image Roline Industrial converter RS232
Converters
CHF223.–

Roline Industrial converter RS232

10. Roline Industrial converter Gigabit Ethernet - Dual Speed 100/1000 Fibre, with PoE function

Network converter for use in industrial environmentsIndustrial media converter with 1x 10/100/1000 Mbps RJ45 port and 1x 100/1000 Mbps SFP slot (dual speed) to accommodate standard mini-GBICs including Gigabit SFP module with 1x SM LC 10km, PoE according to IEEE802.3af/at/bt standard , management via web, SNMP, Power Saving EEE, DIN rail mounting, optimised latency behaviour, extended temperature range, fanless in metal housing Full Wire Speed conversion of the Gigabit Ethernet signal Auto MDI/MDI-X Link Fault Pass Through function (fault detection at the remote end) Transparent conversion of the 802.1Q VLAN packets Low power consumption DIN rail mounting Operating voltage: +7 to +30VDC Operating temperature range: - 20 °C - +70 °C Power connection via screw terminal block or DC hollow plug Power supply +12 to +57 VDC, power supply not included in delivery, as suitable power supply we recommend the DIN rail power supply NDR-75-24 (21.13.1311).

Actual product image Roline Industrial converter Gigabit Ethernet - Dual Speed 100/1000 Fibre, with PoE function
Converters
CHF489.–

Roline Industrial converter Gigabit Ethernet - Dual Speed 100/1000 Fibre, with PoE function
