Best selling Controller cards from Exsys
On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Exsys GmbH USB 3.2 Gen2 PCIe (x2) card with 5 ports (3A+2C connections)
The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports, including three USB-A and two USB-C connectors. It is designed to connect two additional USB 1.1, 2.0, 3.0, and 3.2 Gen 2 end devices to your workstation, desktop, or server. It supports USB 1.1 low-speed (1.5 Mbps), full-speed (12 Mbps), USB 2.0 high-speed (480 Mbps), USB 3.0 super-speed (5 Gbps), and USB 3.2 Gen 2x1 super-speed+ (10 Gbps). This technology is ideal for external storage, digital cameras, webcams, scanners, and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connectors.
- USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
- Compliant with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
- Fully PCI Express Gen3 Specification compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Supports hot swapping and plug-and-play
- Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
- Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
- Supports up to 127 USB devices (USB 1.1, USB 2.0, USB 3.0, and USB 3.2 Gen 2x1)
- Chipset: Asmedia ASM3142
Packaging contents:
EX-12006, Driver CD, Manual.
2. Exsys PCI-E card 4x USB 3.2 Gen 1
The EX-11194 USB 3.2 Gen 1 PCIe card provides four external Super-Speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0, or 3.2 Gen 1 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.2 Gen 1 Super-Speed (5 Gbps). This card is the perfect technology for external storage enclosures, digital cameras, webcams, scanners, and more. It is self-powered and supports 3.0 A of power at each port. The EX-11194 comes with a low-profile bracket that allows installation in slim PC cases with a maximum height of 8 cm.
USB 3.2 Gen 1 PCIe card with four external ports
Supports 3.0 A at each port
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 123 devices
Fully compliant with PCI Express Gen 2 specifications
Backward compatible with USB 1.1 and 2.0
Hot swapping and plug-and-play
Chipset: Renesas D720201
Package contents:
EX-11194, low-profile bracket, CD, manual.
3. Exsys Ex-11092-2
The EX-11092-2 USB 3.0 PCI-Express card provides two screwable USB 3.0 ports. It is designed to connect two additional USB 1.1, 2.0, or 3.0 devices to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), and USB 3.0 Super-Speed (5 Gbps). It is ideal for external storage enclosures, digital cameras, webcams, scanners, and more. To support the power of 900 mA at the external USB 3.0 ports, no additional power connection from the PC power supply is required.

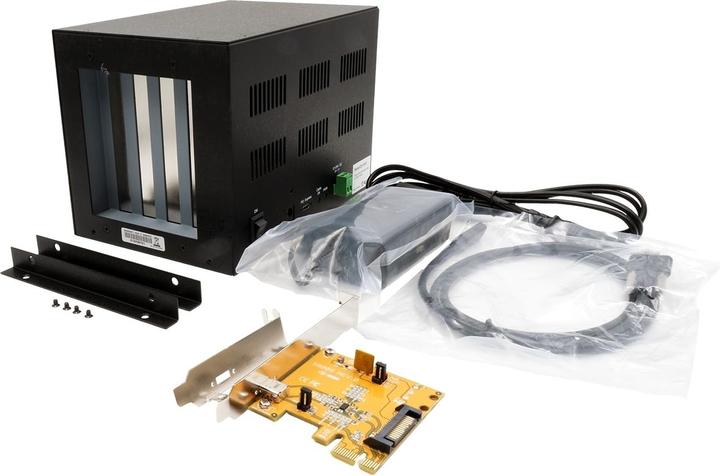

4. Exsys PCI-E to 4x PCI Expansion Box
The EX-1012 is an external expansion box with four PCI slots for expanding or supplementing PCI connections via a PCI Express slot. No jumpers are required for setting the I/O addresses and interrupts, as these are automatically assigned by the motherboard. The EX-1012 can be operated in addition to the motherboard PCI connections and supports all standard PCI I/O cards (e.g., serial, parallel, USB, FireWire, etc.) with 5 and 3.3 volts. Included in the package are a PCIe host adapter card, a USB-C extension cable, and the expansion box itself. The EX-1012 provides immediate PCI bus expansion through the PCI Express slot of any computer system. No drivers or software installation is required. An external 12V/3A power supply is included with the EX-1012.
Note: The USB-C cable is only for connecting the box to the PCIe host adapter card. The box cannot be directly connected to the USB-C port of a laptop or PC.
- 4x PCI slots expandable via a PCIe slot from the computer, connected with a C cable (not suitable for direct connection to the USB-C port of a laptop or PC)
- Supports both 5V and 3.3V add-on cards
- Fully compliant with PCI Express Base, PCI slots comply with PCI Bus Rev. 2.3, Specifications, Revision 1.0a
- PCI Express Advanced Error Reporting Capability including ECRC
- Sturdy metal housing, suitable for industrial applications
- Supports Extended Virtual Channel (VC) and Active State Link Power Management
- Low profile bracket with a maximum height of 8 cm included
- Requires a 12V/3A power supply (included)
- LED indicators for power and cable.

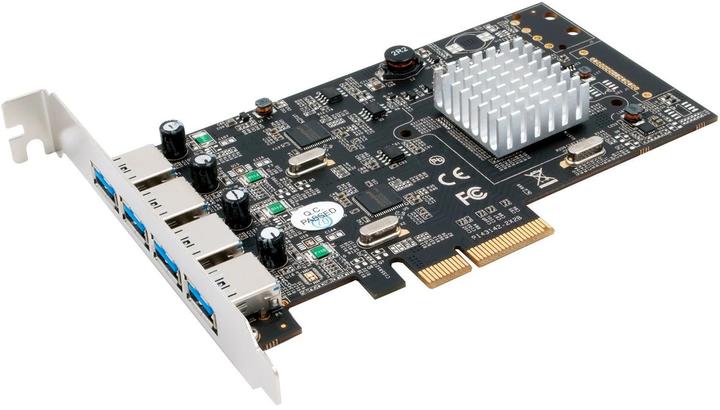

5. Exsys USB 3.1 Gen2 PCIe (x4) card with 4 x A ports (Asmedia)
The EX-12004-2 USB 3.2 Gen 2x1 PCIe (Gen2x4) card provides four external Super-Speed+ USB 3.2 Gen 2x1 ports with USB-A connectors. It is designed to connect four additional USB devices ranging from 1.1 to 3.2 to your workstation, desktop, or server. It supports USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps), USB 3.2 Gen 1 Super-Speed (5 Gbps), and USB 3.2 Gen 2x1 Super-Speed+ (10 Gbps). This technology is perfect for external storage, digital cameras, webcams, scanners, and more. The EX-12004-2 supports 900 mA of power at the external USB 3.2 Gen 2x1 ports. It utilizes two Asmedia chipsets, with one chip dedicated to two ports.
USB 3.2 Gen 2x1 PCIe x4 card with four USB-A connectors
Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
Compatible with PCI-Express Gen2 specifications
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports "Hot Swapping" and "Plug-and-Play"
Supports 900 mA power at each USB-A output
Supports up to 127 USB devices (USB 1.1 to USB 3.2 Gen 2x1)
Chipset: 2x Asmedia ASM3142
Package contents:
EX-12004-2, driver CD, manual.
6. Exsys GmbH PCI-Express FireWire 1394b/a card with 3 ports (TI)
The EX-16601 PCI-Express FireWire 1394b card expands PCs, workstations, or servers with two FireWire 1394b (FireWire 800) ports and one 6-pin FireWire 1394a (FireWire 400) port. It allows for the connection of FireWire devices such as camcorders or professional audio equipment. The EX-16601 comes with a low-profile bracket for slim computer cases up to 8 cm in height.
FireWire 1394b PCIe card with three external outputs
Supports up to 63 devices
PCI Express interface compatible with the 1.0a specification
Hot swapping: devices can be plugged in and out without shutting down the computer
Can be installed in addition to the FireWire ports on the motherboard
Complies with the IEEE1394b standard and is backward compatible with IEEE1394a-2000 and the 1394-1995 standard
Supports PC and MAC systems
Chipset: Texas Instrument XIO2213
Package contents:
EX-16601, IEEE 1394b cable, low-profile bracket, manual.

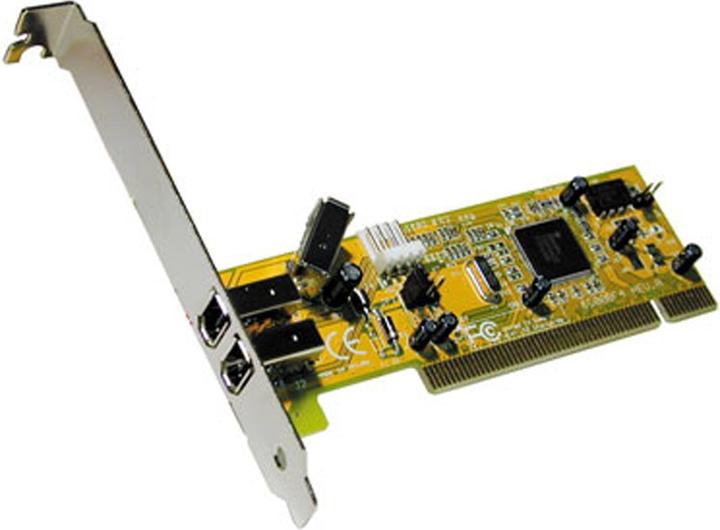

7. Exsys Ex-6450
The EX-6450 PCI FireWire 1394A (FireWire 400) card provides two external and one internal FireWire 1394A ports. It supports PC and Apple Power Mac systems.
8. Exsys Ex-41150
The Exsys EX-41150 is a versatile controller card designed as an adapter for parallel and serial interfaces. It allows the connection of peripheral devices via two RS-232 ports and one IEEE 1284 parallel port. This plug-in card utilizes the PCI bus, making it easy to integrate into compatible systems. The EX-41150 is ideal for applications that require reliable data transmission between different devices and supports a variety of operating systems, including Microsoft DOS and various versions of Windows. With its compact design and plug-and-play functionality, it is a practical solution for expanding the connectivity options of computers and workstations.
- Supports two RS-232 ports and one IEEE 1284 parallel port
- Compatible with a variety of operating systems, including Microsoft Windows and DOS
- Easy installation through plug-and-play functionality
- Suitable for use in industrial and business applications
- Enables the connection of older peripheral devices to modern systems.

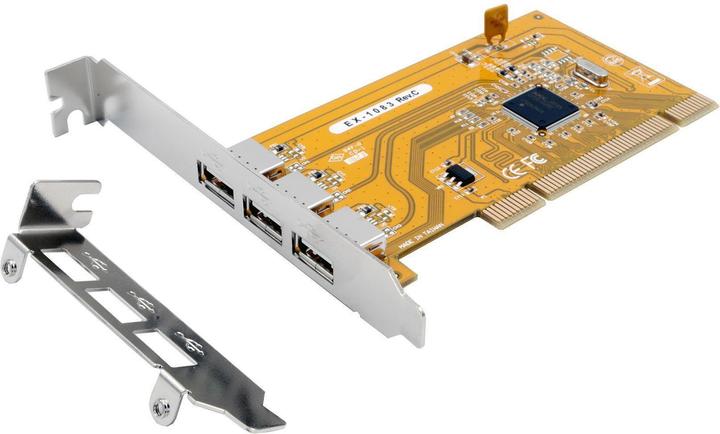

9. Exsys EX-1083, 3 port USB 2.0
The EX-1083 USB 2.0 PCI bus card provides three external ports that are fully compatible with OHCI specifications 1.1 and USB 2.0 ECHI standards. It is designed to expand a total of three additional USB high-speed ports for PCs, workstations, or servers via the PCI bus. It also supports older USB 1.1 peripherals. This is the optimal expansion card for external hard drive enclosures, digital cameras, webcams, scanners, and many other peripherals. The EX-1083 comes with a low-profile bracket for slim computer cases up to 8 cm in height.
USB Version 1.1 to 2.0
Compatible with Microsoft Windows Standard Open HCD drivers
Supports up to 127 devices
Supports 32-bit PCI bus and PCI-X bus with 5V and 3.3V (33MHz)
Supports "Hot Swapping" and "Plug-and-Play"
Chipset: NEC
Package contents:
EX-1083, low-profile bracket, manual.
10. Exsys PCIe card 2P Parallel EPP/ECP incl.LowProfileB?gel,ASIX chipset
The EX-46001 PCI-Express parallel card provides a parallel SPP/EPP/ECP high-performance output. It expands your PC, workstation, or server with an additional parallel output via the PCI-Express bus. With the EX-46001, there are no conflicts with IRQ and I/O addresses, and it is PCIe Plug-and-Play compatible. The package includes a low-profile bracket for installation in slim PC cases.
PCI-Express x1 parallel card with one port
Interface: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port), ECP (Enhanced Capacity Port)
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with Rev. 1.0a to 3.0 specifications
Compatible with IEEE 1284-SPP/Byte/ECP mode
128 Byte FIFO Buffer
Package contents:
EX-46001, low-profile bracket, driver CD, manual.
