WaveShare PoE HAT (G) for Raspberry Pi 5

With the PoE HAT (G) for the Raspberry Pi 5, you can supply your Raspberry Pi with both power and a network connection via a single Ethernet cable. The HAT supports the IEEE 802.3af/at network standard and delivers stable power with an output of 5V and 5A. Thanks to its compact design, it can be easily integrated into the official Raspberry Pi 5 housing. It uses a non-isolated switching power supply for an efficient power supply and is equipped with a standard 40-PIN GPIO header. This PoE HAT is the perfect choice for projects where a reliable and space-saving power supply is required. Ideal for use in network-based applications, it allows you to operate your Raspberry Pi flexibly in different environments.

Recommended accessories:
Ethernet cable
Raspberry Pi 5

Features:
The PoE HAT supports the IEEE 802.3af/at network standard and offers high compatibility.
It provides an output voltage of 5V and a current of up to 5A, which enables a stable and efficient power supply.

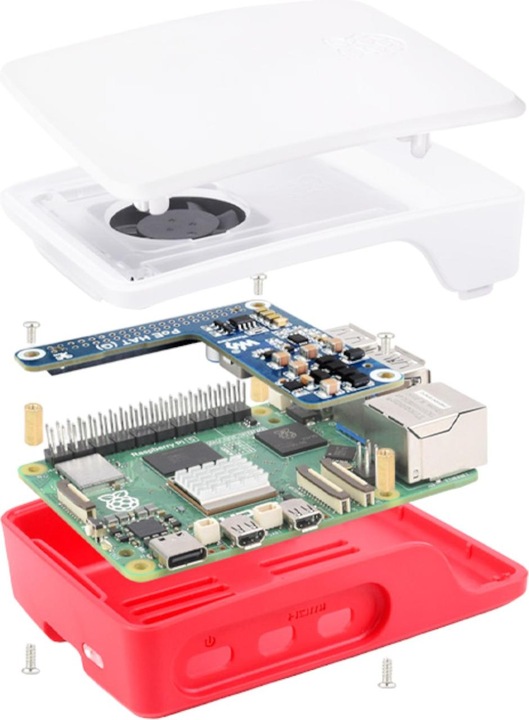

Thanks to its compact design, the HAT can be easily integrated into the official Raspberry Pi 5 housing.
The HAT is equipped with a non-isolated switching power supply that ensures reliable and consistent power output.

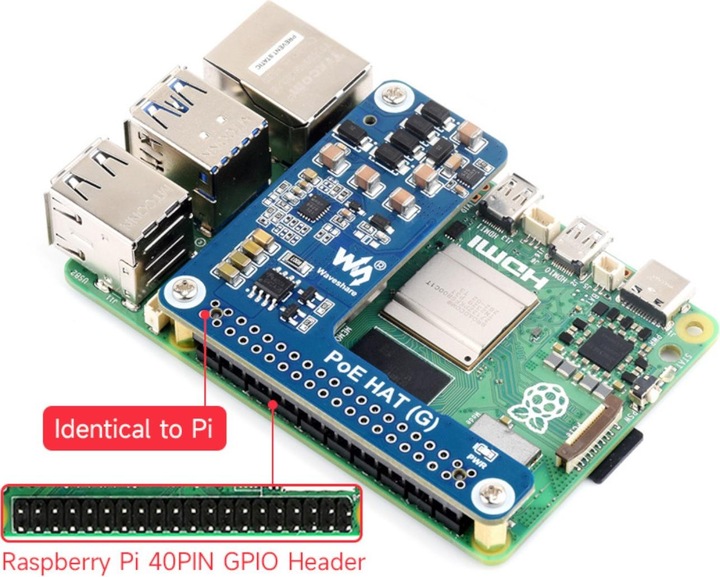

It has a standard 40-PIN GPIO header that allows easy installation and connection to the Raspberry Pi 5.

Application examples:
Powering a Raspberry Pi 5 in a network server project directly via an Ethernet cable.
Use in a smart home automation system in which the Raspberry Pi 5 is operated centrally via PoE.
Use in a monitoring project in which several Raspberry Pi 5 devices are supplied with power and networked via PoE.

Documentation:
Waveshare Wiki

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 27670
PoE power input: 38V to 57V DC
Power output: 5V 5A maximum
Network standard: IEEE 802.3af/at POE
Dimension: 57 × 65 x 11 mm
Weight: 20g

Scope of delivery:
1x PoE HAT (G) for Raspberry Pi 5.
