Wago Initi. feed terminal

WAGO GmbH & Co. KG initiator feed terminal 280-584/281-483.

Manufacturer: WAGO GmbH & Co. KG
Designation: Initiator feed terminal
Feed-in terminal: 0.08-2.5 mm² green
Type: 280-584/281-483
Connectable conductor cross-section fine stranded without ferrule: 0.08 to 2.5 mm²
Connectable conductor cross-section fine stranded with ferrule: 0.25 to 1.5 mm²
Connectable conductor cross-section solid: 0.08 to 2.5 mm²
Connectable conductor cross-section stranded: 0.08 to 2.5 mm²
Rated current: 20 A
Rated voltage: 24 V
Number of levels: 1
Number of terminals per level: 2
Levels internally bridged: No
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Mounting type: Top-hat rail TH35
Cross-connectable: No
Insulator material: Thermoplastic
Operating temperature: 105 °C
Flammability class of the insulating material according to UL 94: V0

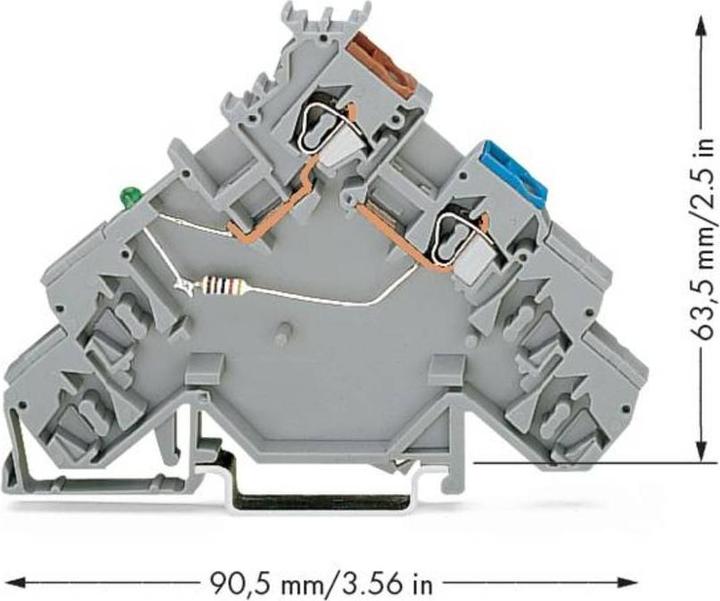

Width: 5 mm
Height: 90.5 mm
Depth: 63.5 mm
Explosion-tested version "Ex e": No
Cover plate required: Yes
Colour: Grey
Colour of light source: Green
LED switching for: PNP
With PE connection: No
With shield connection: No
With power feed function: Yes
Isolating function: No

WAGO GmbH & Co. KG initiator power feed terminal 280-584/281-483: more details

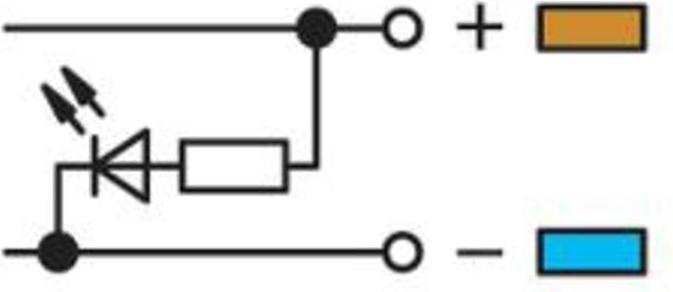

4-wire initiator power feed terminal LED green for PNP (plus) switching initiators. Power feed on the initiator side with colour-printed conductor entries 2.5 mm² CAGE CLAMP® 2.50 mm² grey.
