Product details
Manufacturer series = 750
Input type = Voltage
Output type = Transmitter
For use with = 750 series
Length = 100mm
Width = 24mm
Depth = 70.5mm
Dimensions = 100 x 24 x 70.5mm
Application = Communication

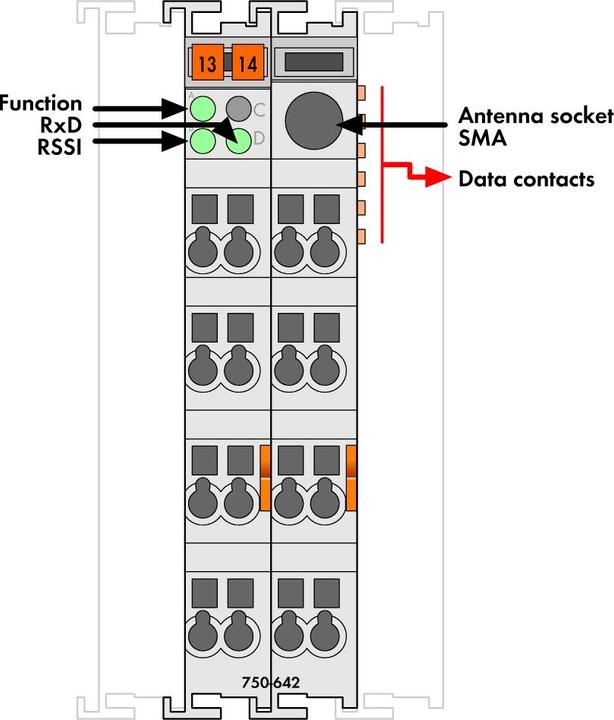

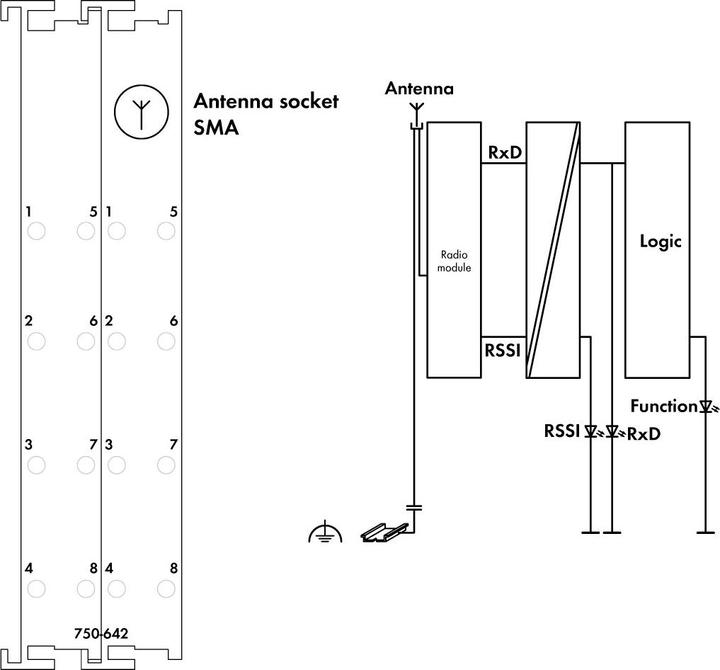

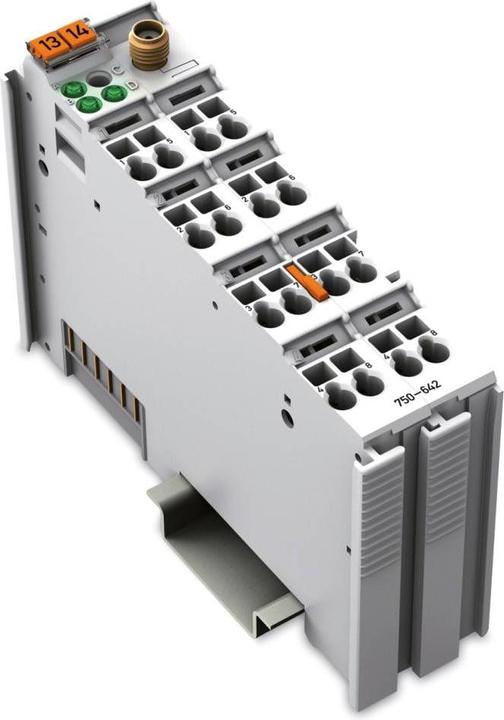

Radio receiver module EnOcean. The 750-642 I/O module receives radio telegrams from maintenance-free, battery-free and wireless switches and sensors based on EnOcean radio technology. The module can be used with any controller of the WAGO-I/O-SYSTEM 750. Preprogrammed function blocks facilitate system integration. The energy requirement for switch or sensor operation is met by converting one type of energy (heat, solar or mechanical energy) into usable electrical energy. The energy radiated by the transmitter modules is about one million times smaller than that of cell phones. Almost any number of sensors is possible. Radio receiver module EnOcean Maximum 100 transmitters per module Connection distances of up to 300 m with external antenna Short transmission time, high protection against external sources of interference Diagnostic functions Status LEDs Power supply via system voltage V ac/dc.
