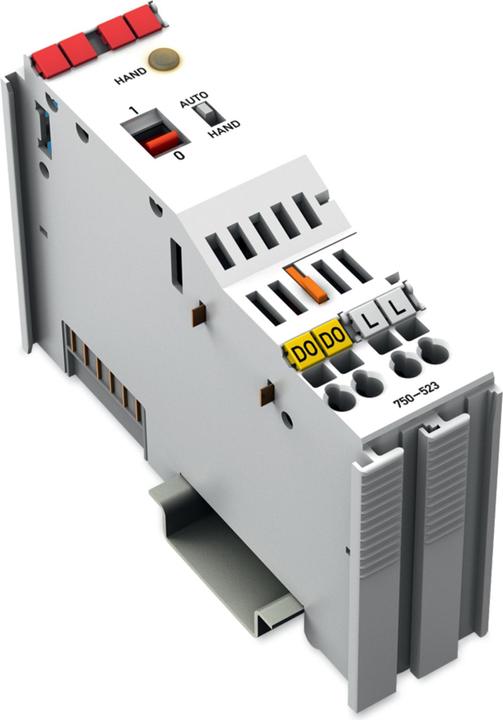

Wago Digital I/O Module AC Series 750 230V 750-523

Ratings
BrandMore from Wago
Delivered between Fri, 22.8. and Tue, 9.9.

Product details

1-channel relay output
AC 250 V
16 A
Potential-free
1 normally open contact

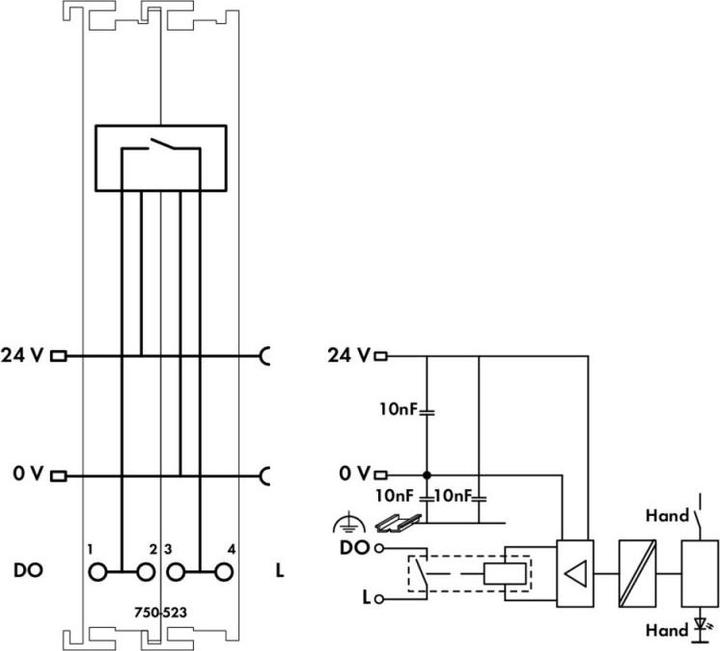

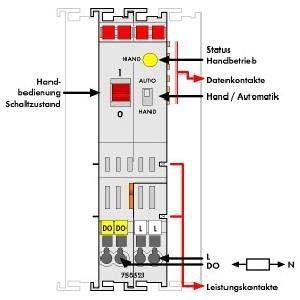

The relay module controls a connected actuator. The 24V supply through the power contacts is required for relay operation. The switch (1/0) for manual operation always indicates the relay's switching state. An auto/manual switch allows the operating mode to be set. The operating mode is indicated by an LED and transmitted as a status bit in the process image.

Manual: The coil control is interrupted. Activation is only possible via the red manual control switch.
Auto: Relay activation is performed by the control system. Manual state changes via the manual control are reset by the control system in less than 500 ms.

The manual control can also be used without a 24V supply to switch the actuator. The relay complies with both international standards according to IEC and DIN EN 61810 Part 1 / VDE 0435 Part 201 and the requirements for short-term overloads and short-circuit resistance according to IEC and EN 61036 / 61037.

Key specifications

input voltage
24 V
Scope of delivery
1
Output current type
AC
Electric current output
16 A
Relay type
Contactor relay
Item number
33376298

General information

Manufacturer
Wago
Category
Relays
Manufacturer no.
750-523
Release date
17.5.2023

Relay properties

Relay type
Contactor relay
input voltage
24 V
Electric current output
16 A
Output current type
AC

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1

Product dimensions

Length
67.80 mm
Width
12 mm
Height
100 mm
