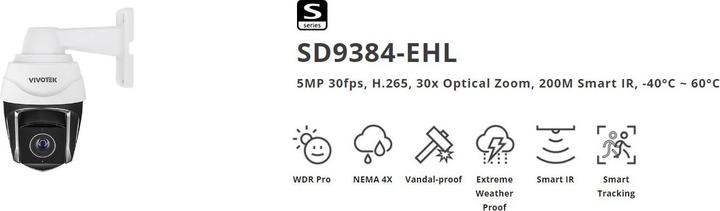

Vivotek S Series SD9384-EHL - Network Surveillance Camera - PTZ - Vandal Resistant / We

2560 x 1920 pixels
Ratings
BrandMore from Vivotek
Delivered between Tue, 30.12. and Fri, 2.1.
Only 1 piece in stock at supplier
free shipping

Product details

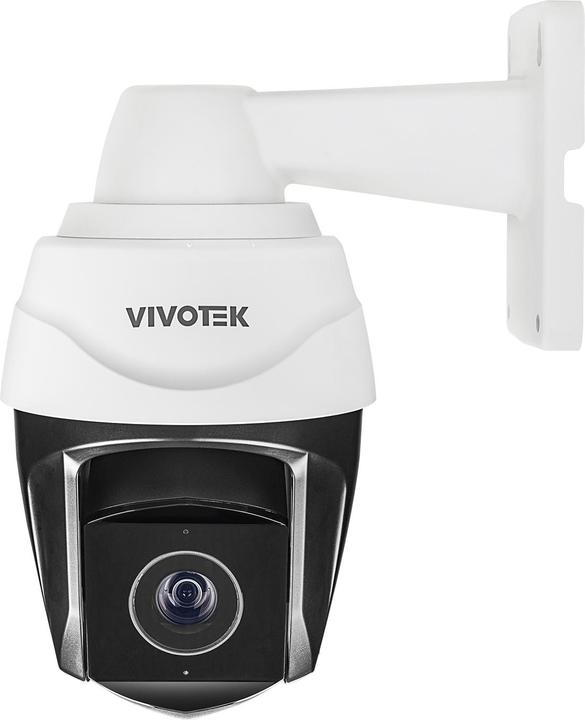

The SD9384-EHL is VIVOTEK's latest professional IR speed dome camera (PTZ) with a resolution of 5 MP, making it ideal for video surveillance in expansive areas such as airports, city monitoring, and production sites. The SD9384-EHL is equipped with 200 m IR illuminators and a 30x optical zoom to capture more details in every scene. The intelligent IR technology allows for a wide detection range and very uniform IR intensity while avoiding hotspots.

The integrated Smart Tracking Advanced feature of the SD9384-EHL (our latest AI technology for Smart VCA) enables the user to detect risks and automatically track suspicious individuals in real-time.

The camera housing of the SD9384-EHL is protected against rain, dust, and corrosion with certifications of IP66, IK10, and NEMA 4X. Additionally, it supports a wide operating temperature range of -40 °C to 60 °C for operation in extreme weather conditions.

Key specifications

Power supply
Electrical connection, PoE
Network interface
PoE, RJ45 port
Lens type
Zoom
Advanced functions
Microphone, Motion sensor, Night vision function, PTZ, Two-way audio
Type of memory
Memory card
Network camera type
Outdoor surveillance camera
Item number
31927470

General information

Manufacturer
Vivotek
Category
Network camera
Manufacturer no.
SD9384-EHL
Release date
21.10.2022

Colour

Colour
Black, White
Exact colour description
Black, White

Camera properties

Network camera type
Outdoor surveillance camera
Camera design
PTZ camera
Camera resolution
5 Mpx
Max. picture resolution
2560 x 1920 pixels
Viewing angle (H)
54.10°
Viewing angle (V)
41.20°
Viewing angle (D)
65.70°
Lens type
Zoom
Aperture
f/1.3
Optical zoom
30x
Digital zoom
32x
Image sensor type
CMOS
Refresh rate
30 FPS
Shutter speed
1 - 1/100000 s
Tilt range
-110 - 110°
Swivel range
0 - 360°
Advanced functions
Microphone, Motion sensor, Night vision function, PTZ, Two-way audio
Remote access
Web browser
Video file formats
H.264, H.265, MJPEG
Audio formats
G.711, G.726
Protection type (IP code)
IP66

Connections

Connection A
RJ45

Data storage properties

Memory card type
microSD, SDHC, SDXC
Type of memory
Memory card

Network

Network interface
PoE, RJ45 port
Max. port speed
1000 Mbit/s

Smart home features

Smart Home
Compatible

Application range

Installation place
Ceiling, Wall
Application range
Outside

Power supply

Power supply
Electrical connection, PoE
PoE Standard
802.3bt (PoE++)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Number of cameras
1x
Scope of delivery
Quick installation guide, Screws

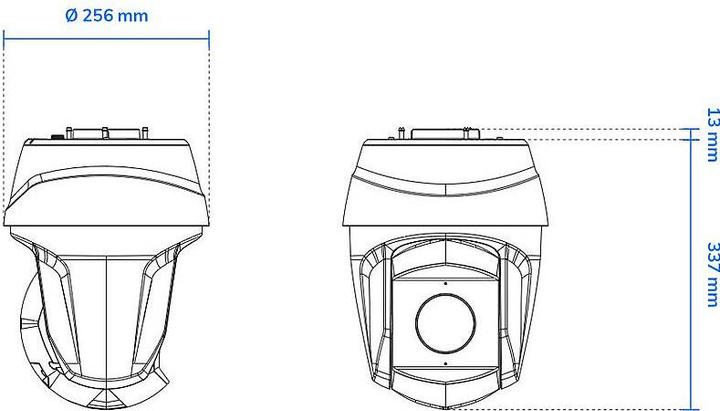

Product dimensions

Height
336 mm
Length
336 mm
Width
256 mm
Weight
7100 g

Package dimensions

Length
49.10 cm
Width
53 cm
Height
41 cm
Weight
11.24 kg
