Vivotek C-SERIE FE9180-H-V2 Fisheye IP Camera 5MP, Indoor, 1.16mm, 360°, PoE

1920 x 1920 pixels
Delivered between Tue, 5.8. and Thu, 7.8.
Only 3 pieces in stock at supplier
free shipping

Product details

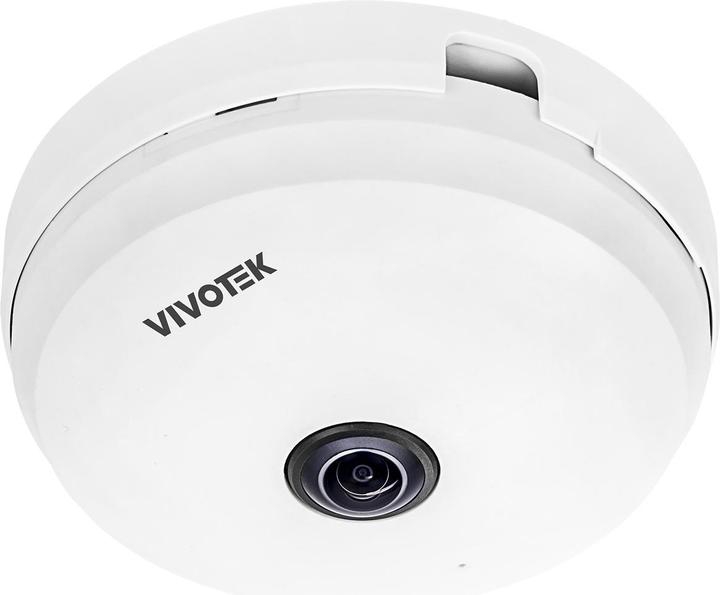

The updated FE9180-H-v2 from VIVOTEK is a flat fisheye network camera featuring a detailed 5-megapixel resolution sensor that delivers excellent image quality. With a width of just 94 mm, the FE9180-H-v2 is a true all-in-one surveillance solution that meets a variety of indoor monitoring needs. The FE9180-H-v2 is now equipped with WDR Pro, providing consistently crystal-clear video quality even in high-contrast lighting conditions. With the added built-in microphone, the FE9180-H-v2 is now more versatile than ever.

Technical Specifications:

  • Manufacturer: VIVOTEK
  • Product Group: Security Cameras
  • Product Type: Fisheye Network Camera
  • Package Contents: Camera, Quick Installation Guide, Alignment Sticker
  • Form Factor: Fisheye
  • Interface: LAN
  • ONVIF: Yes
  • Image Sensor Type: 1/2.7 Progressive CMOS at 2688x1944
  • Resolution: 5 MP
  • Max Image Resolution (Pixels): 1920 x 1920
  • Frame Rate at Max Resolution (Frames/Second): 24
  • Compression Methods: H.265, H.264, MJPEG
  • Number of Video Streams: 4
  • Lens Type: Fixed Lens
  • Lens Focal Length: f = 1.16 mm
  • Lens Field of View: 180°/360°
  • Automatic IR Cut Filter: Yes
  • Day/Night Mode: Yes
  • IR LED: No
  • Light Sensitivity: 0.05 Lux
  • WDR Technology: WDR Pro
  • Audio Input: Yes
  • Audio Output: No
  • Motion Detection: Yes
  • Memory Card Slot: Yes
  • Power over Ethernet (PoE): Yes
  • Wi-Fi: No
  • Suitable for Outdoor Use: No
  • Power Connection: Power over Ethernet (PoE)
  • Minimum Operating Temperature: -10 °C
  • Maximum Operating Temperature: 50 °C
  • Height: 94 mm
  • Width: 35 mm
  • Weight: 140 g
  • Gross Weight: 0.3 kg.

Key specifications

Network camera type
Surveillance camera indoor
Network interface
Wi-Fi
Power supply
PoE
Lens type
Prime lens
Type of memory
Local networkMemory card
Advanced functions
Motion sensor
Item number
35769006

General information

Manufacturer
Vivotek
Category
Network camera
Manufacturer no.
FE9180-H-V2
Release date
22.5.2023

Colour

Colour
White
Exact colour description
White

Camera properties

Network camera type
Surveillance camera indoor
Camera resolution
5 Mpx
Max. picture resolution
1920 x 1920 pixels
Viewing angle (H)
360°
Viewing angle (V)
180°
Viewing angle (D)
360°
Lens type
Prime lens
Focal length
1.16 mm
Aperture
f/2.25
Optical zoom
12 x
Digital zoom
12 x
Refresh rate
24 FPS
Advanced functions
Motion sensor
Video file formats
H.264H.265MJPEG
Audio formats
G.711G.726

Connections

Connection A
RJ45

Data storage properties

Memory card type
microSDSDHCSDXC
Type of memory
Local networkMemory card

Network

Network interface
Wi-Fi

Application range

Installation place
CeilingWall

Power supply

Power supply
PoE
PoE Standard
UPOE

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Alignment stickerCameraQuick installation guide

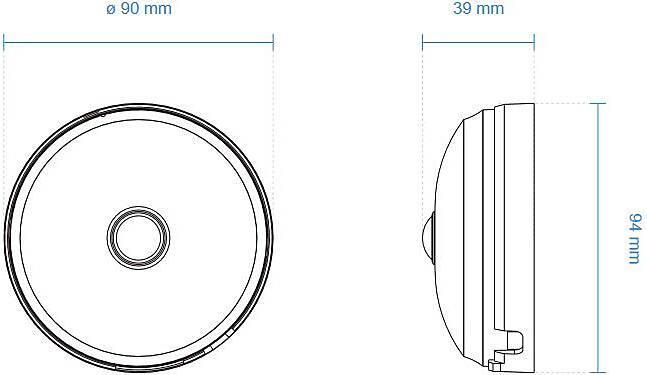

Product dimensions

Height
39 mm
Length
94 mm
Width
94 mm
Weight
140 g

Package dimensions

Length
15.90 cm
Width
14.70 cm
Height
10.60 cm
Weight
15 g
