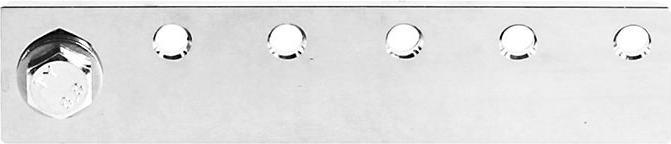

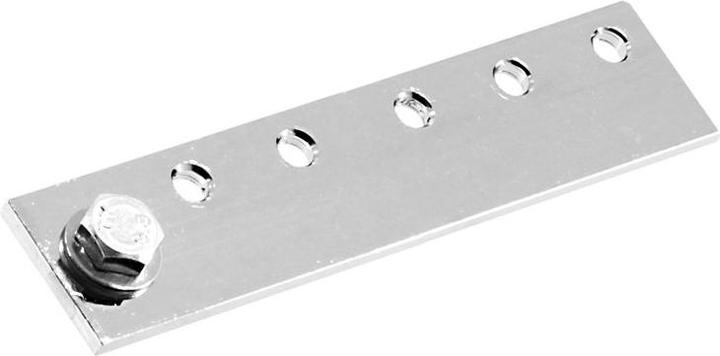

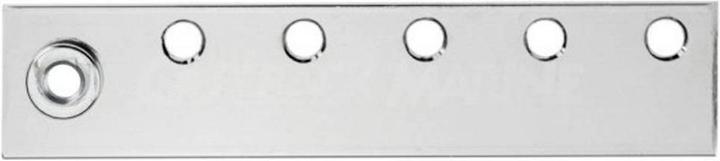

Victron Energy Terminal block Victron for 5 CIP100200100 (500 A)

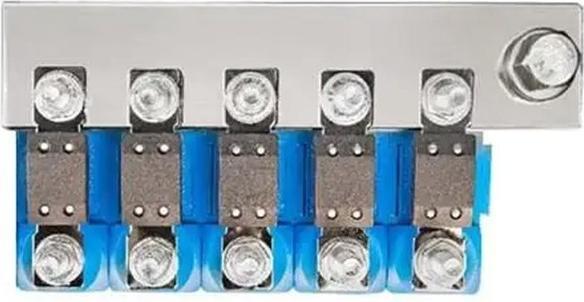

The BusBar 5 CIP100400060 is a high-current busbar designed for a maximum of 5 mega fuses and 500A current from Victron Energy. It provides a professional way to consolidate multiple devices protected by mega fuses. Instead of connecting 5 individual cables, you only need to connect one bus cable coming from the busbar to the DC power source(s). The BusBar 5 is optimally designed for use with the modular Mega-Fuse holder. This can be easily and securely connected to any number of other modular Mega fuse holders as needed. The connected holders can then be connected to a common DC power source via the high-current busbar. Currents of up to 500A can be safely and professionally managed with this system.

Key features of the BusBar 5 CIP100400060:

• Compatible with all mega fuses
• Compatible with the modular mega fuse holder
• Space for a maximum of 5 Mega type fuses
• Secure screw connection to the busbar for maximum safety
• Maximum 500A current
• 1 M10 connection for the DC power source
• Saves you from connecting too many DC cables to the battery, where space is often limited

Compatible accessories:

• Mega fuse fuses 32V 60A – 300A
• Mega fuse fuses 58V 125 – 500A
• Modular fuse holder for mega fuses

Delivery includes:
1x Victron CIP100400060 BusBar 5 high-current busbar including the required screws.
