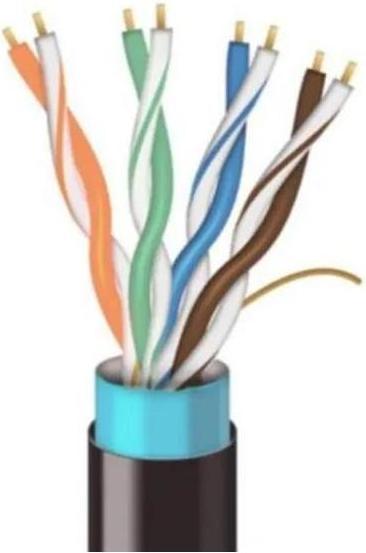

Ubiquiti UISP-CABLE-CARRIER-1 - Patchcable Cat.5e, SF/UTP, 1m, black

Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.

• Category 5e cable
• Insulated, weatherproof cable jacket
• Internal foil shielding and drain wire for increased ESD damage protection
• Internal anti-crosstalk divider to preserve signal integrity in high-traffic areas
• Cable length: 1 m

Technical Specification
Mechanical

• Box dimensions: 330 x 425 x 340 mm (13 x 16.7 x 13.4")
• Box weight: 16 kg (35.3 lb)
• Cable length: 1 m (1,000 ft)
• Cable color: Black
• Cable type: CAT5e, shielded
• UV resistance: ASTM G 151/154
• Ethernet support: Up to 1 Gbps
• Conductor wire gauge: 24 AWG
• Conductor: Solid bare copper
• Conductor diameter: 0.500 ± 0.005 mm
• Insulation type: Solid polyethylene
• Insulation thickness:
• Average: 0.295 mm
• Minimum: 0.29 mm
• Insulation diameter: 1.16 ± 0.02 mm
• Separation (Polyester wrapping):
• Thick: 0.025 mm
• Extent: 20 mm
• Anti-crosstalk divider: LDPE: 4.2*0.3 mm
• Cable shield (Aluminum foil):
• Thick: 0.060 mm
• Extent: 20 mm
• ESD drain wire: 0.4 TC
• Rip cord: Yes
• Secondary cable shield (Braid): 16*8*0.16AA
• Density: 95%
• Jacket material: Polyethylene
• Jacket thickness:
• Average: 0.52 mm
• Minimum: 0.46 mm
• Jacket outer diameter: 6.8 ± 0.30 mm
• Jacket color: Black
• Storage temperature: -30 to 75° C (-22 to 167° F)
• Installation temperature: -20 to 60° C (-4 to 140° F)
• Ambient operating temperature: -40 to 80° C (-40 to 176° F)
• Standards: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2).
