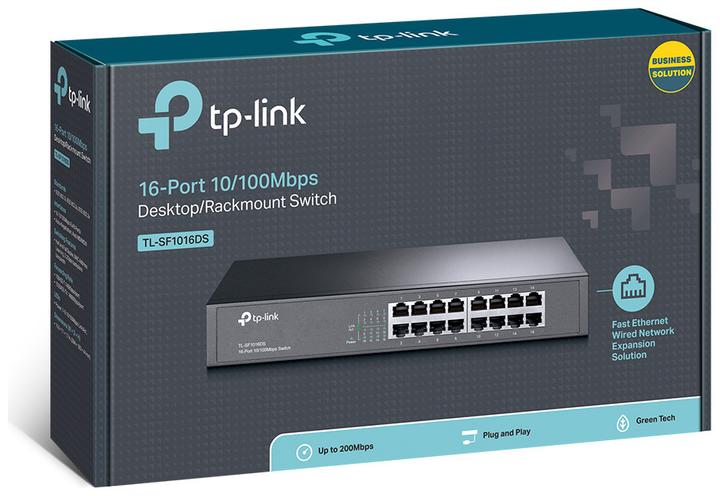

TP-Link Tl-Sf1016ds

16 Ports
Delivered between Wed, 14.5. and Fri, 16.5.
More than 10 items in stock at supplier

Product details

The TL-SF1016DS Fast Ethernet Switch offers a powerful, cost-effective, and easy-to-handle upgrade for expanding your old network with additional ports. All 16 ports support Auto-MDI/MDIX, so you don't have to worry about the cable type (patch or crossover); just plug it in and get started. Additionally, the TL-SF1016DS can save up to 75% energy with its innovative, energy-efficient technology, and 70% of the packaging materials can be recycled, making it an environmentally friendly solution for your business network.

This next-generation Fast Ethernet Switch features innovative, energy-efficient technology that allows you to significantly expand your network capacity while consuming considerably less power. It automatically adjusts power consumption based on link status and cable length to improve your network's carbon footprint. It also complies with EU RoHS regulations, which prohibit the use of certain hazardous substances. Furthermore, 70% of the packaging materials can be recycled.

The metal housing designed for rackmount size, combined with a safety-certified internal power supply, makes the switch a robust product that is very cost-effective for environments with fewer than 16 users. With a non-blocking switching architecture, the TL-SF1016DS forwards and filters packets at full cable speed to achieve maximum data throughput. Thanks to 10k Jumbo Frames, performance is significantly improved when transferring large files. IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode alleviate data congestion, allowing the TL-SF1016DS to operate reliably.

The automatic features of this Fast Ethernet Switch make it easy to use.

Key specifications

Max. port speed
100 Mbit/s
Network connections
RJ45 (16x)
Switchtype
Rack Switch
Management
Unmanaged
Switch functions
Quality of Service (QoS)
Item number
5822780

General information

Manufacturer
TP-Link
Category
Network switches
Manufacturer no.
TL-SF1016DS
Release date
23.11.2010
External links

Colour

Colour
Black
Exact colour description
Black

Switch properties

Switchtype
Rack Switch
Rack Unit
1U
Number of ports
16 Ports
Management
Unmanaged
Switch functions
Quality of Service (QoS)
switching layer
Layer 2
Switching capacity
3.20 Gbit/s
MAC adress table size
8000
Manufacturer Type
TL-SF1016DS

Network connections

Network connections
RJ45 (16x)
Max. port speed
100 Mbit/s
Max. port speed RJ45
1000 Mbit/s
Max. Port speed
100 Mbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant
Power consumption
2.10 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Power cordRack mounting kitShort manualSwitch

Product dimensions

Length
18 cm
Width
29.40 cm
Height
4.40 cm
Weight
2000 g

Package dimensions

Length
40.30 cm
Width
24.50 cm
Height
8 cm
Weight
1.86 kg
