TP-Link SG3452XMPP - Omada managed switch L2+, PoE++, 750W

This first-class PoE switch is ready for you with a budget of up to 750 W, PoE++ support, and 4 optical SFP+ slots.

Manage your access points, switches, and gateways at multiple locations remotely via a single interface.

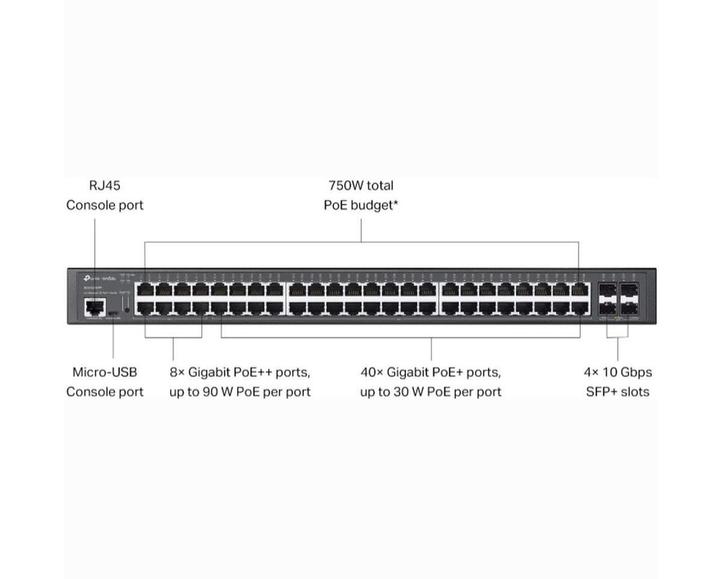

Main features:

• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40× Gigabit 802.3af/at PoE+ ports (Max. 30 W budget for each port)
• Up to 750 W total PoE budget
• Centralized cloud management via web or Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static routing helps to route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports fast protection and recovery in a ring topology
• Robust metal housing and rack-mountable design

Packaging contents:

• Device
• Power cable
• Quick installation guide
• Rackmount kit
• Rubber feet

Technical parameters:

Connections and interfaces:
LAN speed: (48) 10/100/1000 Mbps
Optical interfaces: (4) 1G/10 Gbps
Serial port: micro USB, RJ45

Power supply:
Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3bt, 802.3af, 802.3at, 802.3at - ultra PoE (60W)
PoE-Out ports: 48
PoE budget [W]: 750
Max. power consumption [W]: 913
Power supply via plug/terminal: 230V AC

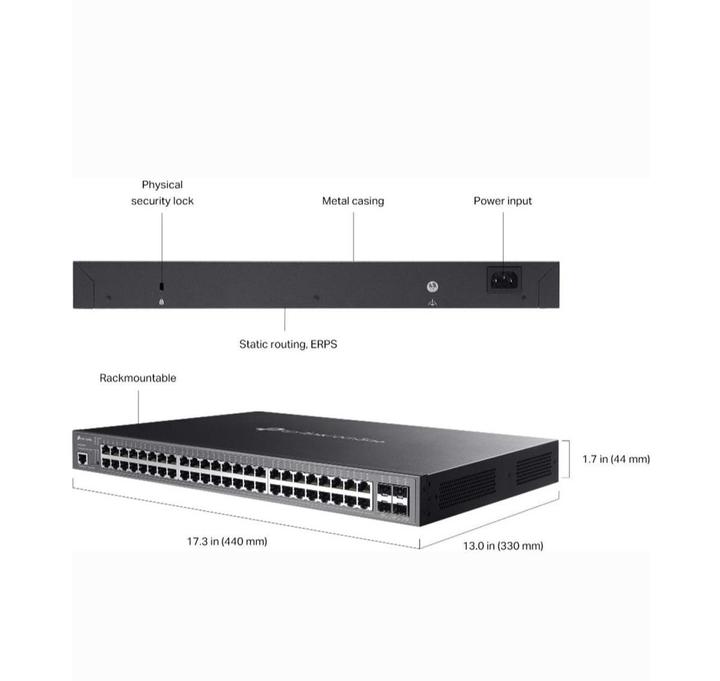

Physical properties:
Design: Rackmount
Fan: (3) 40 x 40 mm
Housing design: Metal
Buttons: Reset
Operating temperature [°C]: 0 to 40
Width [mm]: 440
Height [mm]: 44
Depth [mm]: 330

General:
Distribution capacity [Gbps]: 176
MAC address table: 16000
Jumbo frame [bytes]: 9000
Packet forwarding rate [Mpps]: 130

Software:
Web management: Yes
Management: Web management, Omada controller
Functions: VLAN, QoS, L2+.
