TP-Link LS1210GP - Gigabit PoE switch

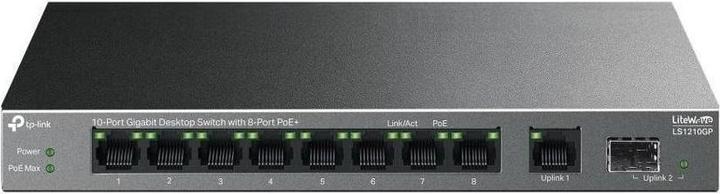

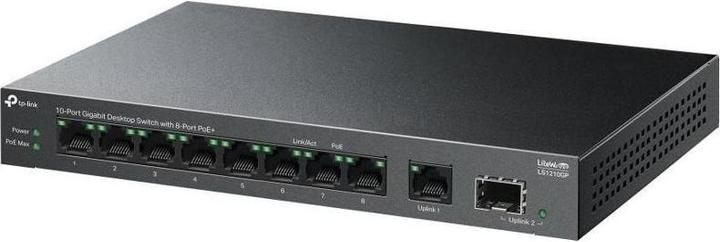

TP-Link LS1210GP Gigabit PoE Switch

Manufacturer: TP-Link
Code: 10410920
Part No.: LS1210GP

Product Description:
The TP-Link PoE Switch LS1210GP is an unmanaged Gigabit PoE switch with 9x 10/100/1000Mbps LAN ports and 1x SFP port. It supports PoE 802.3af/at on 8 Ethernet ports with up to 30W per port. The total PoE budget of the switch is 61W. The switch also enables PoE over a distance of 250m by switching to a special mode that reduces the connection speed at the PoE ports to 10Mbps, which is sufficient for transmitting images from cameras. Another feature is PoE auto-recovery, which automatically restarts unresponsive devices powered by PoE or port isolation.

Main Features:

• 8x PoE-out 802.3af/at
• 1x SFP port
• Total PoE budget 61W
• Extended mode for distances up to 250m
• Port isolation
• PoE auto-recovery automatically restarts unresponsive devices

Package Contents:

• Switch

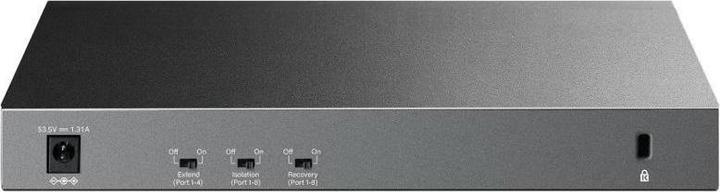

• Power supply 53.5V/1.31A
• Installation guide

Technical Parameters:

Connections and Interfaces:

• LAN speed: (9) 10/100/1000Mbps
• Optical interfaces: (1) 1000Mbps

Power Supply:

• Power supply type: DC connector
• PoE type: PoE-Out (only)
• PoE-Out standards: 802.3af, 802.3at
• PoE outputs: 8
• PoE budget [W]: 61
• Long-range PoE - up to 250m: Yes
• Max. power consumption [W]: 7.3
• Power supply via connector/terminal: 53V DC

Physical Characteristics:

• Design: Desktop
• Fan: Fanless
• Housing design: Metal
• Operating temperature [°C]: 0 to 40
• Width [mm]: 209
• Height [mm]: 26
• Depth [mm]: 126

General:

• Switching capacity [Gbps]: 20
• MAC address table: 4000
• Jumbo Frame [Bytes]: 16000
• Packet forwarding rate [Mpps]: 14.9.
