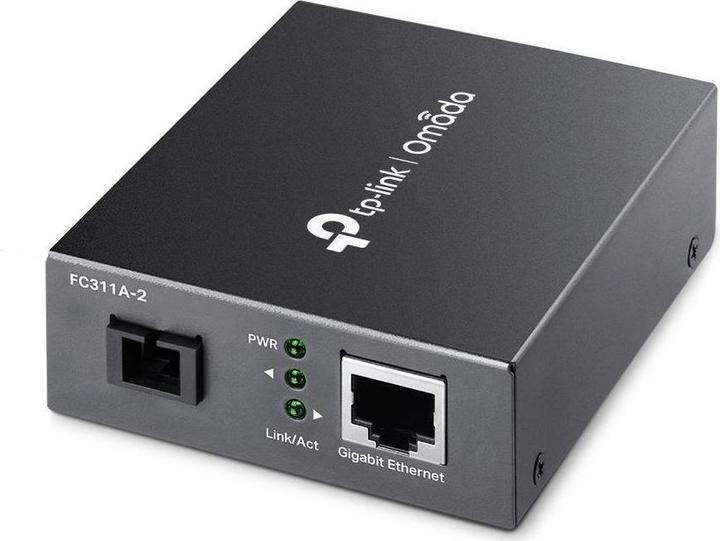

TP-Link FC311A-2 - (TL-) Omada Gigabit WDM Media Converter

What this product does
The FC311A-2 (TL-FC311A-2) is a Gigabit media converter with a Gigabit RJ-45 port and a Gigabit SC fiber optic port, capable of converting between electrical and optical signals. Data transmission over long distances using fiber optic cables can be utilized in commercial scenarios such as park surveillance and wireless networks.

How the product works
The FC311A-2 (TL-FC311A-2) employs WDM technology (Wavelength Division Multiplexing) and allows for data transmission and reception over distances of up to 2 km using only a single-mode fiber, enabling customers to save half the costs on cabling. The FC311A-2 transmits data at a wavelength of 1550 nm and receives data at a wavelength of 1310 nm over fiber. Therefore, the end device used in conjunction with the FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link also offers another media converter, the FC311B-2, which can work alongside the FC311A-2.

Additional features
This media converter can be used as a standalone device (no rack required) or with TP-Link's FC1420 rack for Auto-MDI/MDI-X on the TX port, where the duplex mode is negotiated automatically.

Network
Standards and protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

Environment
Operating temperature: 0˚C to 50˚C (32˚F to 122˚F)
Storage temperature: -40˚C to 70˚C (-40˚F to 158˚F)
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing

Hardware features
Interface:

• 1× Gigabit SC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Cables:

• Single-mode Fiber (9/125μm, maximum 2 km)
• UTP Category 5, 5e cable (maximum 100 m)

Power supply...
