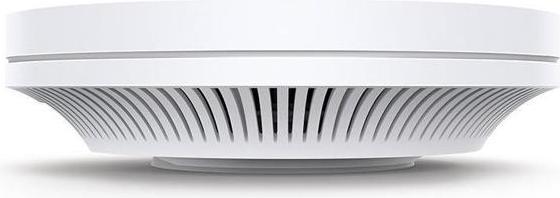

TP-Link EAP660 HD. - EAP660 HD access point v1

2402 Mbit/s
Delivered between Fri, 17.4. and Wed, 6.5.
8 pieces in stock at supplier
free shipping

Product details

The EAP660 HD is currently the best EAP access point with roaming capabilities, supporting the latest wireless protocol 802.11ax with MU-MIMO technology. Thanks to 4x4 MIMO on both radio bands, it effortlessly achieves speeds of up to 2402 + 1148 Mbps in a dual-band Wi-Fi network for multiple devices simultaneously. A Gigabit LAN port is no longer sufficient, so the AP is equipped with a LAN port that supports speeds of up to 2.5 Gbps. For good coverage, the AP features 8 built-in antennas, with 4 operating at 2.4 GHz and the antennas for 5 GHz providing a gain of 6 dBi. Due to these enhancements, the access point has a higher power consumption of 19W and can be powered either directly via a 12V DC power supply or through 802.3at PoE. A good news is the encryption of wireless traffic with WPA3.

Easily manage and monitor hundreds of EAPs from a single location. The TP-Link Omada Controller software offers an intuitive management interface. You can control and map the entire network from any connected PC. There are no additional costs, and no special training is required. Managing enterprise Wi-Fi has never been so efficient and cost-effective.

The captive portal ensures that only authorized guests can use the network and provides devices with a convenient, user-friendly authentication method for Wi-Fi access. By adding SMS and Facebook authentication, the captive portal is further simplified to enhance connectivity and promote your business.

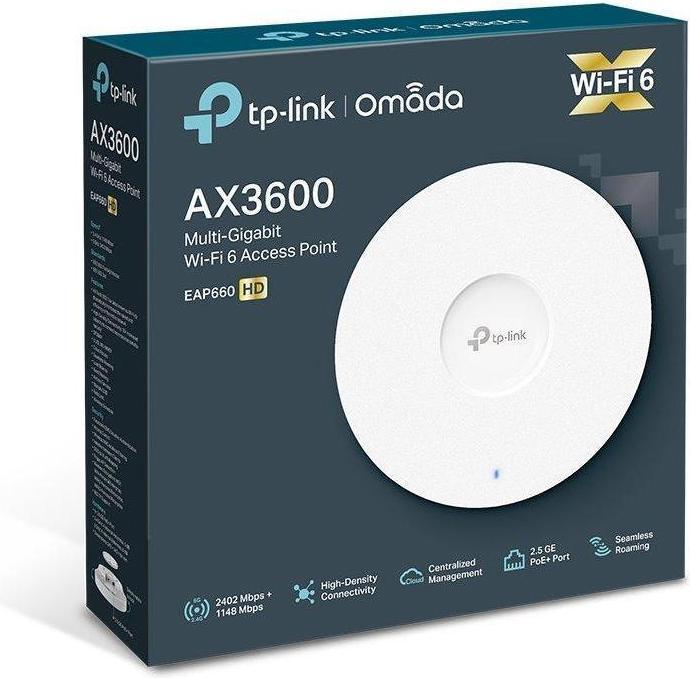

Package includes:

  • EAP660 HD unit
  • 12V/2A power supply
  • Ceiling kit

Technical parameters:
Wireless...

Key specifications

Number of RJ45/LAN ports
1
Max. port speed
2500 Mbit/s
Wi-Fi standard
Wi-Fi 6 / 802.11ax
Wi-Fi frequency band
Dual band
PoE Standard
802.3at (PoE+)

General information

Item number
47878099
Manufacturer
TP-Link
Category
Access points
Manufacturer no.
EAP660 HD.
Release date
19.8.2024

Access point properties

Number of antennas
8x
Antenna gain
6 dB
Number of RJ45/LAN ports
1
Max. port speed
2500 Mbit/s
Access Point Functions
Guest accessSeamless roaming

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
5 GHz transfer rate
2402 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA3

Application range

Installation place
Ceiling

Power supply

Power supply
Electrical connectionPoE
PoE Standard
802.3at (PoE+)
Power consumption
19 W

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
Ceiling mounting setPower supply

30-day right of return
36 Months Warranty (Bring-in)
