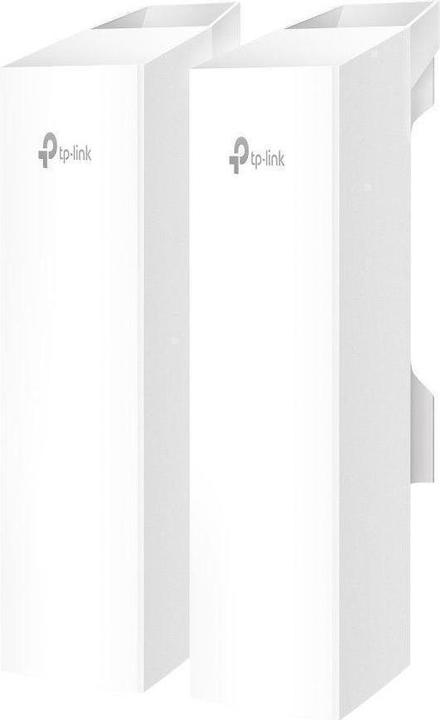

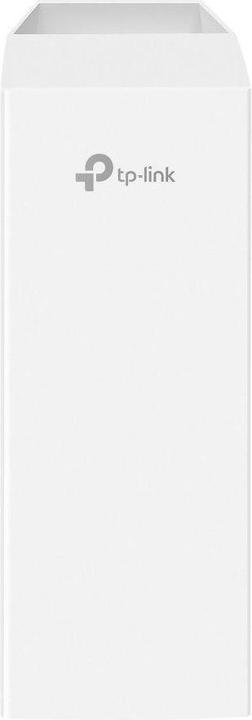

TP-Link EAP211-BRIDGE KIT - Outdoor bridge / access point

With the TP-Link EAP211-Bridge KIT, you can easily establish a transparent connection over distances of up to 1 km. Thanks to the 802.11ac standard, it achieves connection speeds of up to 867 Mbps in the 5 GHz band. It supports technologies such as Mesh, MU-MIMO, and Beamforming. For optimal efficiency, the devices support automatic pairing and integration into Omada SDN for remote and centralized management.

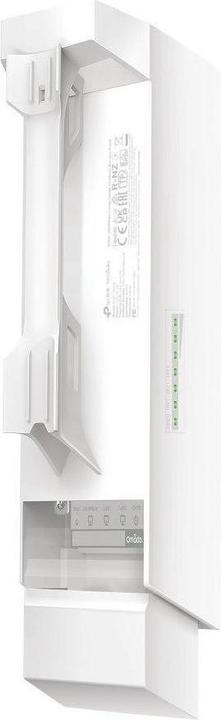

Each device features three 10/100/1000 Mbps Ethernet ports, a reset button, and a grounding connection. On the side of the device, there are LEDs to indicate device status, Ethernet connection, and signal strength. The first of the Ethernet ports supports a passive PoE-24V input, while the second power supply option is provided via a DC connector for 12V. The devices can be mounted on a pole using the included plastic ties.

Efficient Central Network Management
Thanks to Omada's controller software, small and medium-sized businesses can manage hundreds of access points indoors and outdoors from a single location. This is network management as it should be - efficient and intuitive.

Specifications

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for wireless transmissions with a range of up to 1 km.
• Auto-pairing and agile LEDs for efficient deployment.
• Three Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralized management.
• Weatherproof housing according to IP65 and 6kV lightning protection ensure all-weather suitability.
• Supports passive PoE for flexible deployment (adapter included).

Package Contents

• Two devices
• Two 24V PoE power supplies
• Two power cables
• Four plastic ties.
