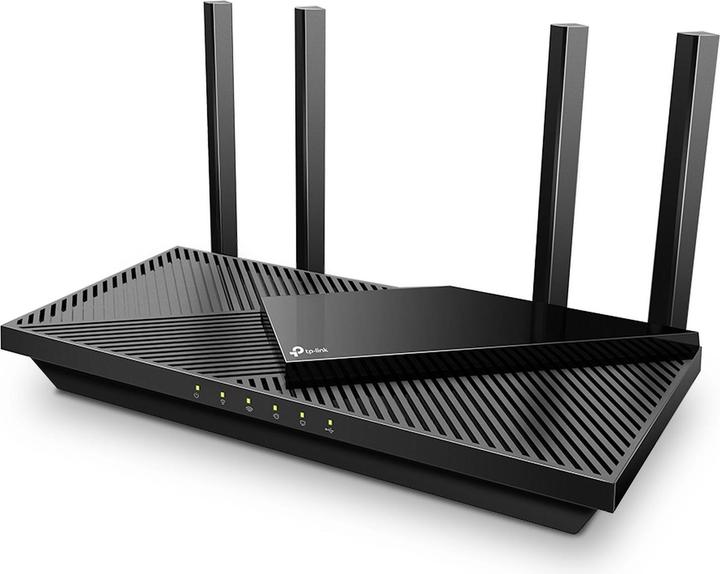

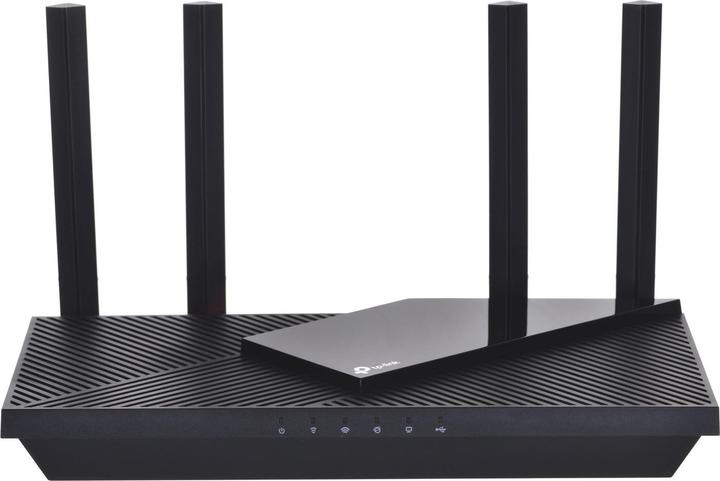

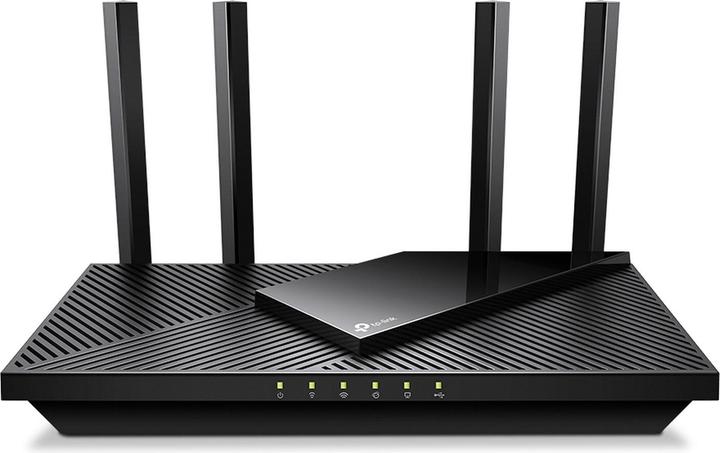

TP-Link Archer AX55 Pro Wi-Fi 6 Dual-Band 2.5Gbit Router AX5400

Archer AX55 Pro is a Wi-Fi 6 dual-band router from TP-Link that includes 4× 10/100/1000 Mbps LAN ports, 1× 10/100/1000/2500 Mbps WAN port, and 4 fixed antennas. The wireless functionality operates on two bands simultaneously, with speeds of 574 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band. The router supports both IPv4 and the latest IPv6 routing. In addition to the commonly used AP router mode, it also supports access point mode.

Key features:

• Gigabit Wi-Fi network for 8K streaming: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• 2 × 2 MIMO (5 GHz) + 2 × 2 MIMO (2.4 GHz)
• Support for OFDMA technologies, reducing network congestion and quadrupling average throughput, accommodating up to 100 devices
• Wide coverage: 4 antennas and beamforming technologies provide comprehensive coverage
• USB sharing port: 1 USB 3.0 port enables easy sharing of media and creation of a private cloud

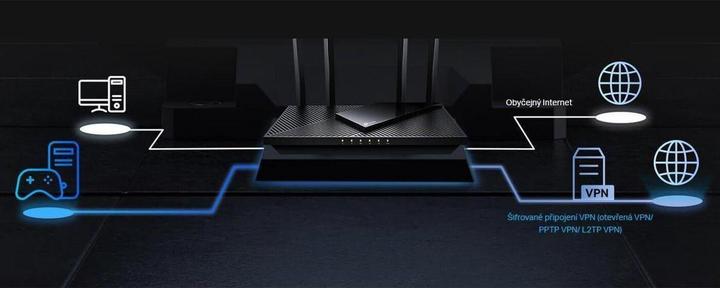

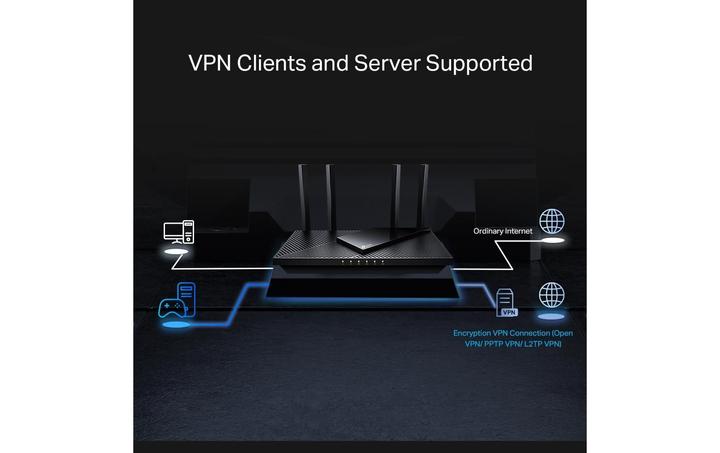

• VPN support: OpenVPN and PPTP

Package contents:

• Device

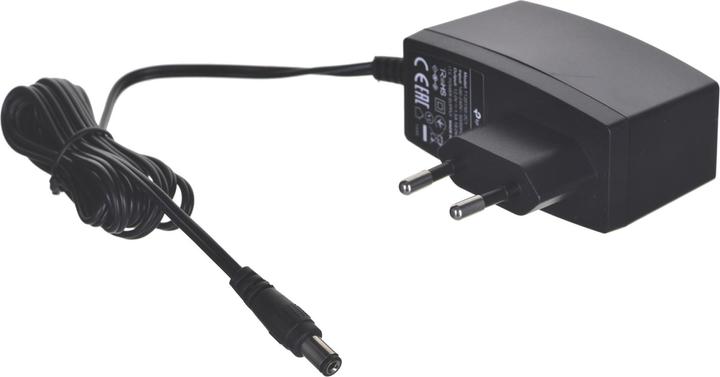

• Power supply 12 V/1.5 A
• Patch cable

Wireless features:

• Wireless frequency: 2.4 + 5 GHz (dual band)
• Wi-Fi standards: 802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
• MU-MIMO: Yes
• Transmission speed - 5 GHz [Mb/s]: 2402
• Transmission speed - 2.4 GHz [Mb/s]: 574
• Transmission power 2.4 GHz [dBm]: 20
• Transmission power 5 GHz [dBm]: 30
• Security: WPA, WPA2, WPA3
• 2.4 GHz MIMO: 2 x 2
• 5 GHz MIMO: 2 x 2
• Antenna type: Fixed antenna
• Fixed antennas: 4

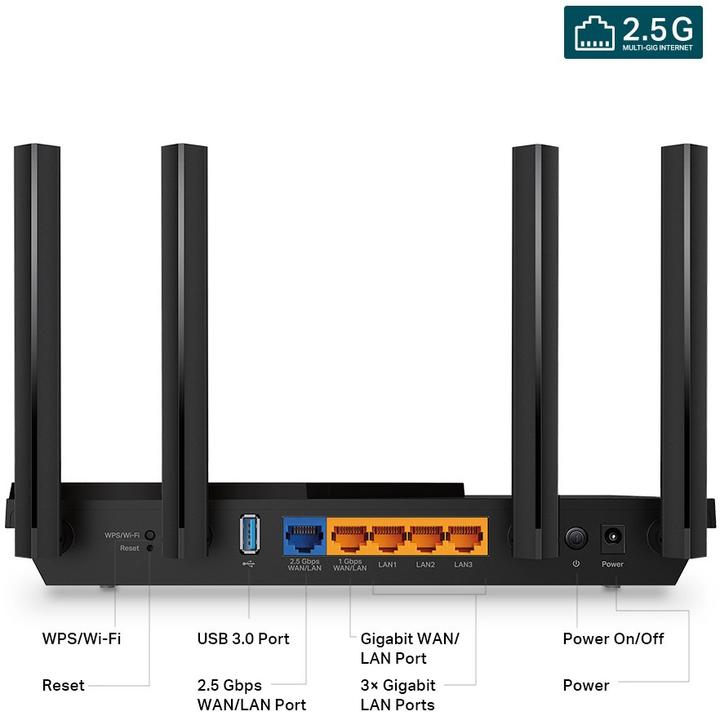

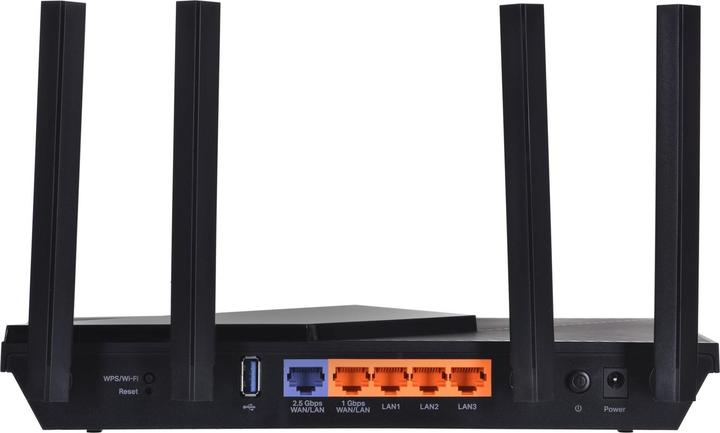

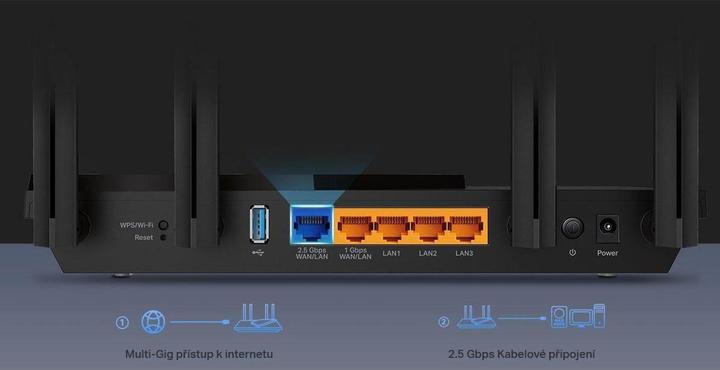

Connections and interfaces:

• WAN speed: 100/1000/2500 Mbps
• USB ports 3.0: 1
• LAN speed: 10/100/1000 Mbps (3) + 10/100/1000 Mbps LAN/WAN (1)
• Gigabit LAN: Yes
• USB: Yes

Power supply:

• Power supply via connection/terminal: 12 V / 1.5 A

Physical properties:

• Intended use: Indoor use
• Operating temperature [°C]: 0 to 40
• Width [mm]: 261
• Height [mm]: 41
• Depth [mm]: 135

General:

• Technology and amenities: OneMesh

Software:

• Operating mode: AP Router, Access Point
• IPv6 support: Yes
• Default IP address: 192.168.0.1
• Default login and password: admin / -.
