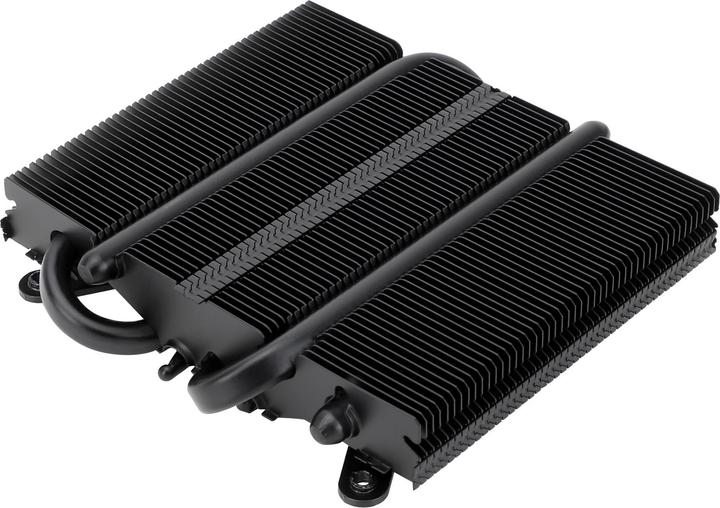

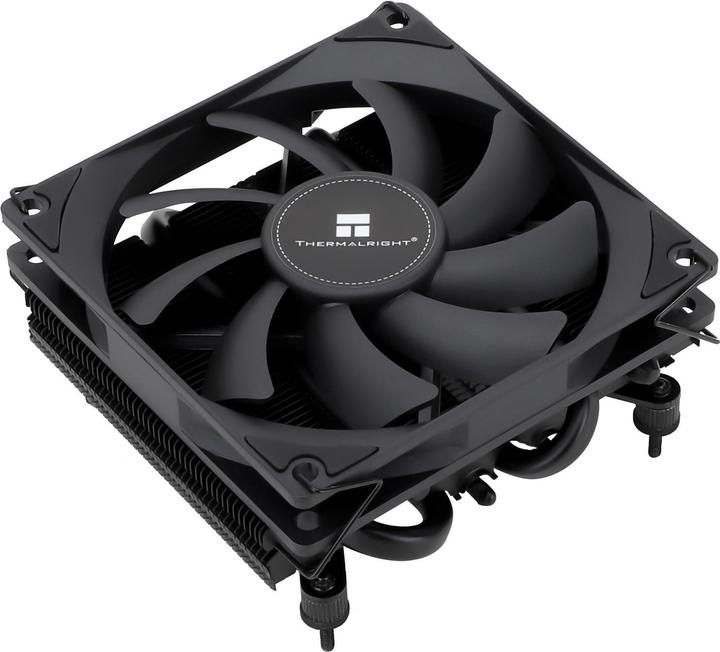

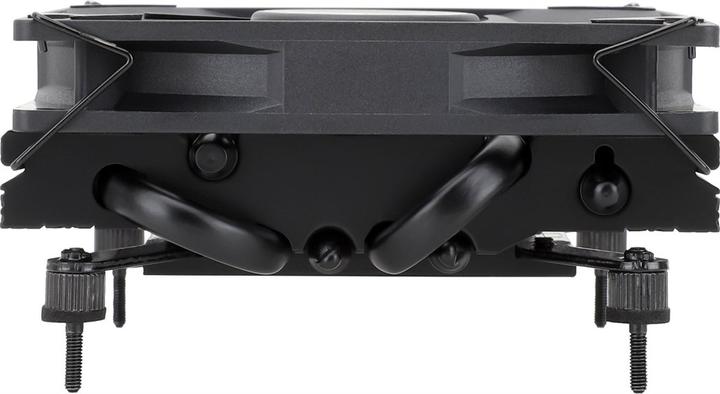

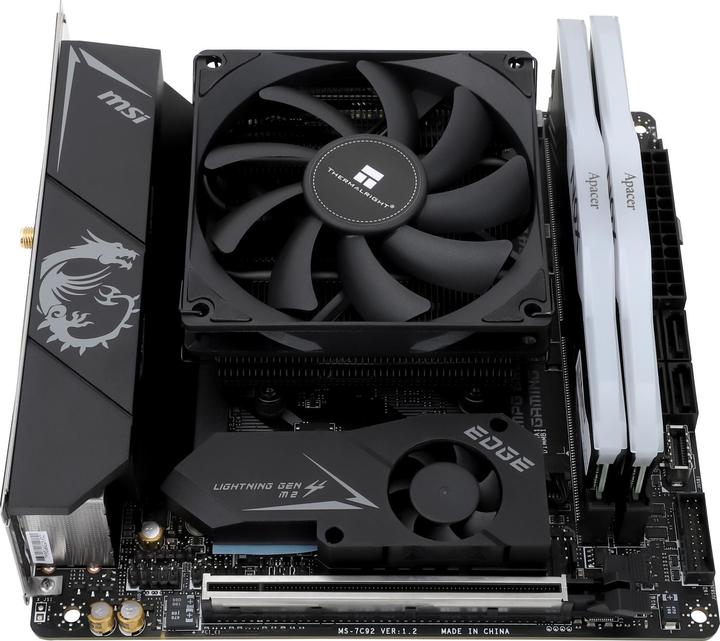

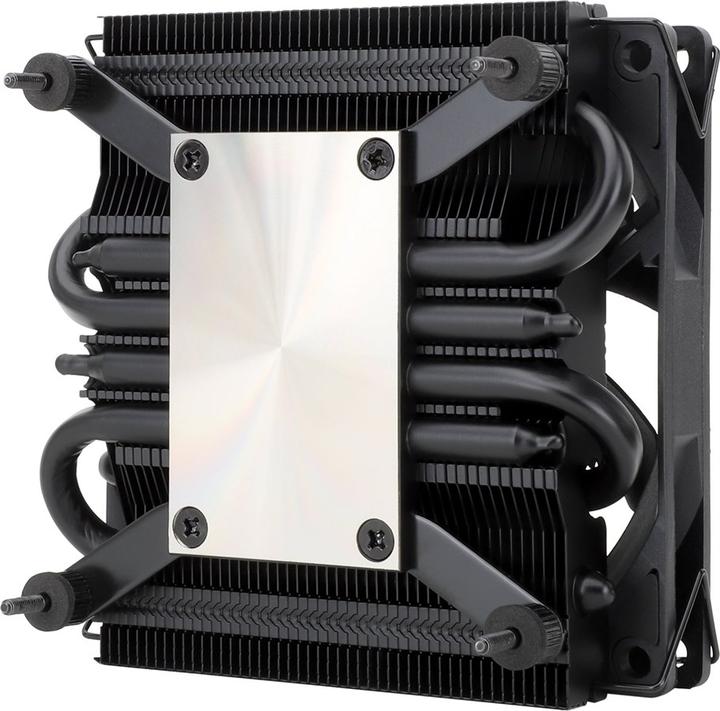

The Thermalright AXP90-X36 is a powerful top blower CPU cooler designed for a variety of processor sockets, including LGA 1151, AM4, and LGA 1700. With a compact design of just 36 mm in height, this cooler is particularly well-suited for systems with limited space, such as Mini-ITX cases. The cooler utilizes a combination of copper cooling fins and four heat pipes to ensure efficient heat dissipation. The 92 mm fan can reach a maximum speed of 2700 RPM, providing effective cooling while maintaining a relatively quiet noise level of up to 22.4 dB(A). Therefore, the AXP90-X36 is an ideal choice for users seeking powerful cooling in a compact format.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700 |
Height (with fan) | 36 mm |
Diameter | 92 mm |
Number of fans | 1 x |
Airflow | 72.34 m³/h |
power connector | 4-pin PWM |
Item number | 24867313 |
Manufacturer | Thermalright |
Category | CPU coolers |
Manufacturer no. | AXP-90 X36 BLACK |
Release date | 23.3.2023 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Top Blower |
Fan type | Top-Down Cooler |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700 |
Supported fan sizes | 92mm |
Number of heatpipes | 4 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 54 |
Materials radiator core | Copper |
Material cooling fins | Copper |
Diameter | 92 mm |
Number of fans | 1 x |
Maximum mountable fan | 1 |
Max. Speed | 2700 RPM |
Airflow | 72.34 m³/h |
Static pressure | 0.14 Pa |
Max. noise level | 22.40 dB |
power connector | 4-pin PWM |
Scope of delivery | Cables supplied: 4-pin, Heat pad included: Yes, Mounting kit: Yes, Number of nuts: 5, Screws included: Yes, Thermal grease, Type of packaging: Box |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 95 mm |
Length (with fan) | 94.50 mm |
Height (with fan) | 36 mm |
Weight | 230 g |
Length | 14.90 cm |
Width | 13.60 cm |
Height | 8.90 cm |
Weight | 456 g |
