Thermal Grizzly

Combination of contact frame and CPU guard

The AM5 Contact & Sealing Frame is a combination of contact frame and CPU guard for AMD's Ryzen 7000 processors. As a contact frame, the AM5 Contact & Sealing Frame creates optimal contact pressure of the CPU into the socket, while an optional inlay made of silicone foam serves to protect the exposed components on the CPU.
- Encloses the heat spreader
- Replaces the SAM of the mainboard
- Made of anodized aluminum

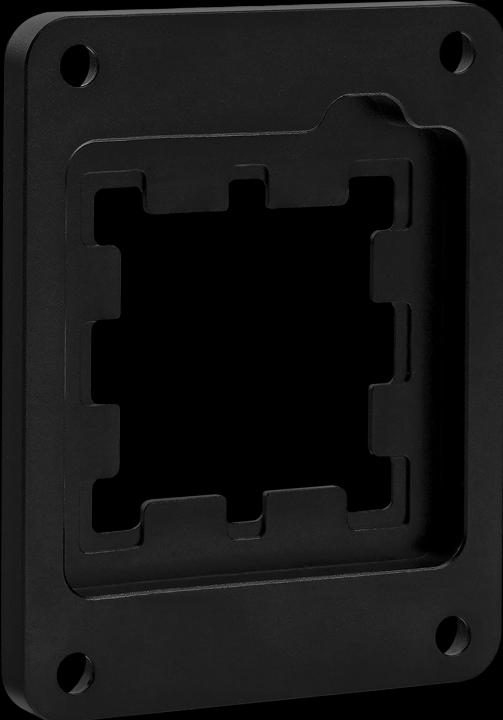

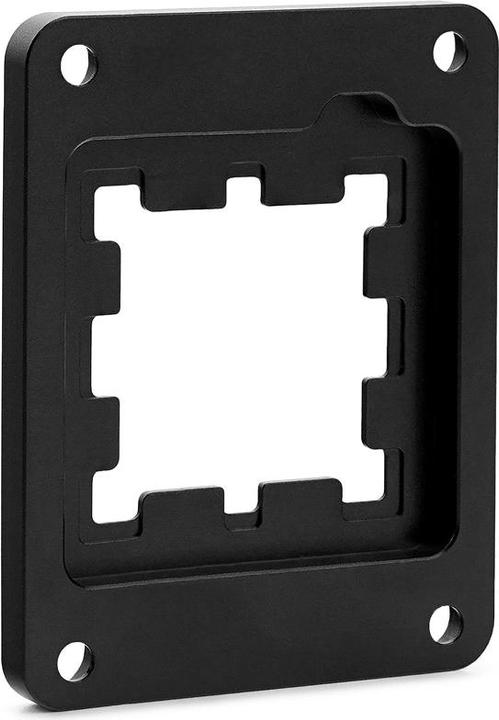

Optimized inner contour for even pressure distribution

The precision-milled inner contour of the AM5 Contact & Sealing Frame creates multiple contact points to the heat spreader compared to the standard SAM. These contact points distribute the contact pressure on the CPU evenly. This ensures that the contact surfaces of the CPU rest uniformly on the pins of the socket. For example, problems with the detection of system memory can be avoided this way.

Innovative silicone foam inlay for protection and sealing

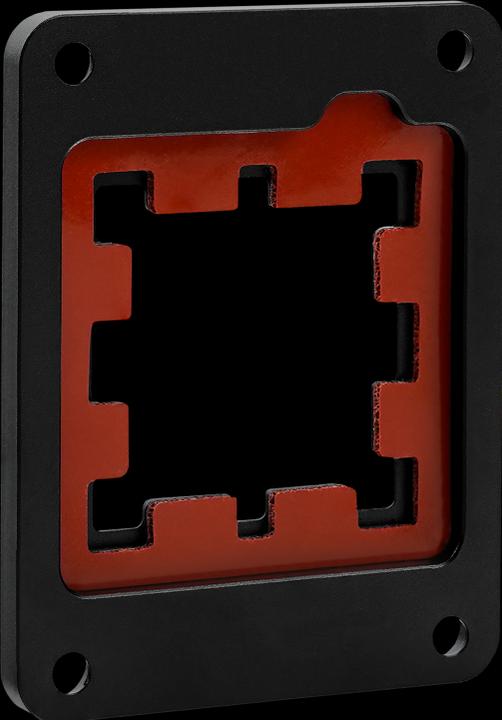

The AM5 Contact & Sealing Frame comes with a silicone foam inlay. This can be placed on the PCB of the processor, similar to the AMD Ryzen 7000 CPU guard. When installing the AM5 Contact & Sealing Frame, the gap between the heat spreader and the aluminum frame is sealed by the silicone foam by pressing the foam onto the PCB. This prevents thermal paste or liquid metal from getting onto the CPU's unprotected components. The foam inlay is optional when used with thermal pastes, but mandatory when used with liquid metal.

User-friendly assembly with clear marking and compatibility

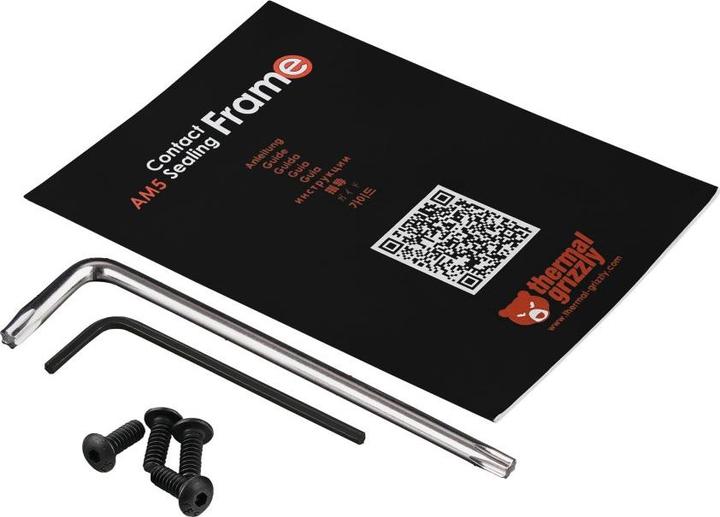

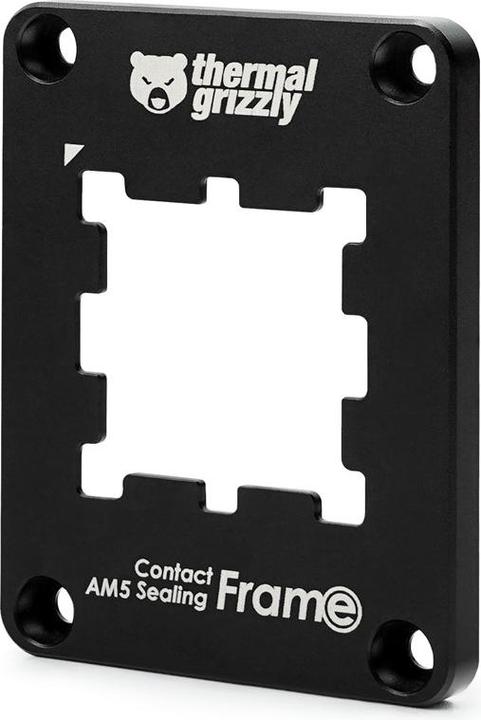

To simplify installation, there is a corresponding marking on the top of the AM5 Contact & Sealing Frame. Since the socket has a bulge on the upper edge, mounting is only possible in one orientation. Four screws are included for mounting the frame and compatibility with the Thermal Grizzly AM5 backplates is given.

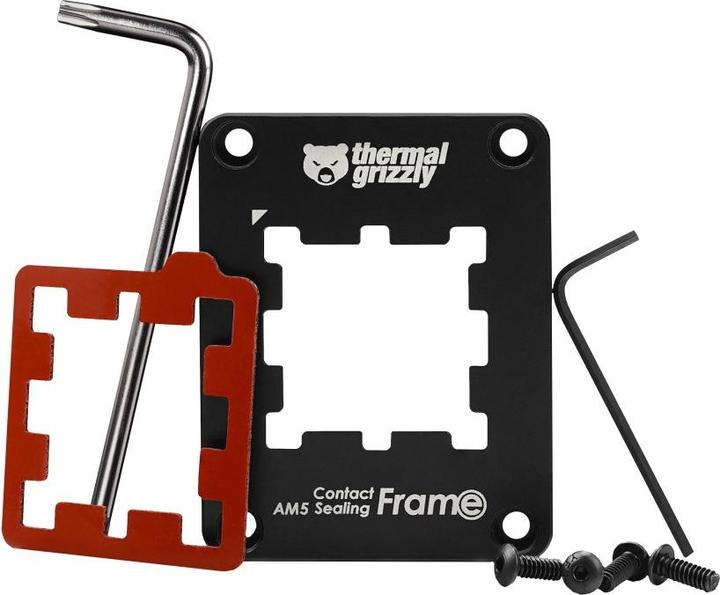

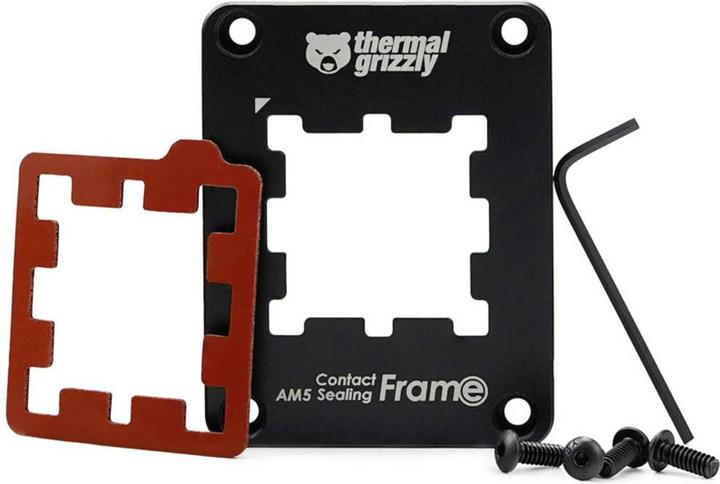

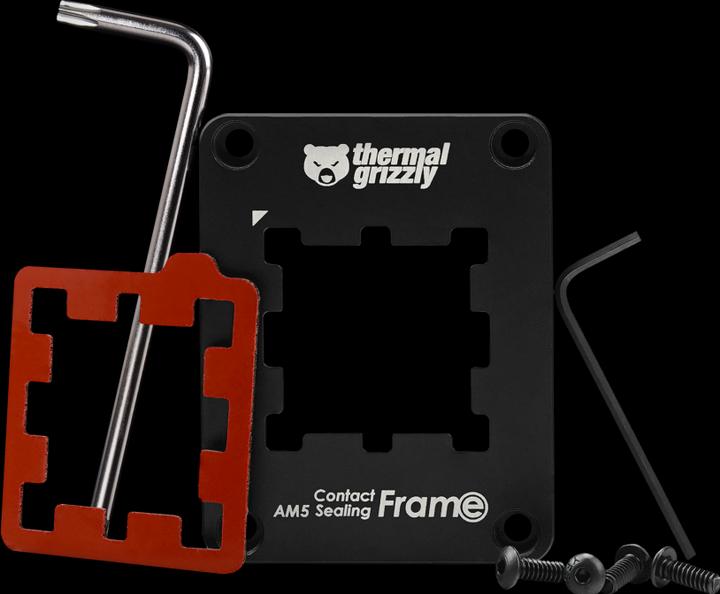

Actual product image Thermal Grizzly AM5 Contact & Sealing Frame

Key specifications

Accessory type

AM5 Contact & Sealing Frame

CPU water cooler accessories

CPU water coolers

30-day right of return

General information

CPU water cooling accessory properties

Origin

Voluntary climate contribution

Scope of delivery

Package dimensions

The silicone foam insert reliably seals the gap to prevent damage from escaping thermal paste or liquid metal.

Protection via silicone foam insert

The frame serves as a replacement for the motherboard's factory-fitted SAM when using AMD Ryzen 7000 processors.

Compatibility with AM5 sockets

The precision-machined aluminium ensures an even distribution of contact pressure across the pins of the processor socket.

Pressure distribution through aluminium frame
