Teltonika TSW304 4 Port Gigabit Industrial Unmanaged Switch DIN RAIL

4 Ports
Ratings
BrandMore from Teltonika
Delivered between Wed, 9.7. and Tue, 15.7.
More than 10 pieces in stock at supplier
free shipping

Product details

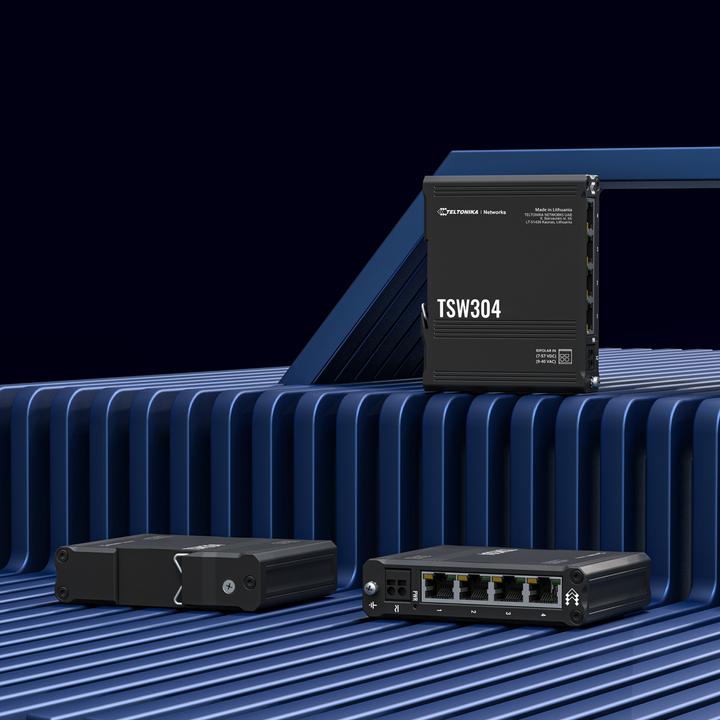

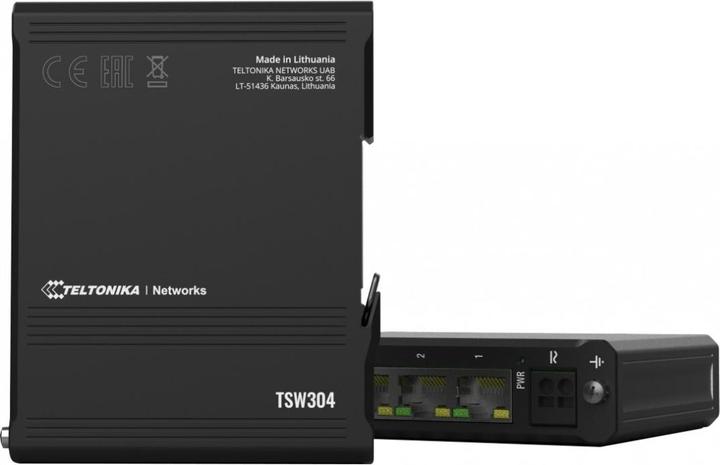

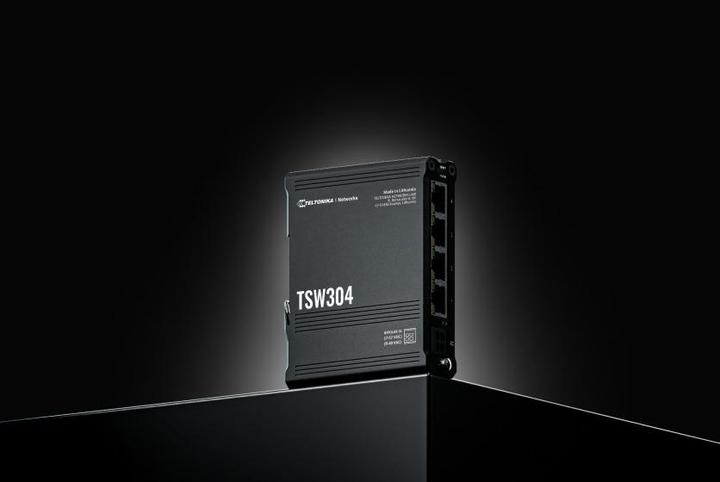

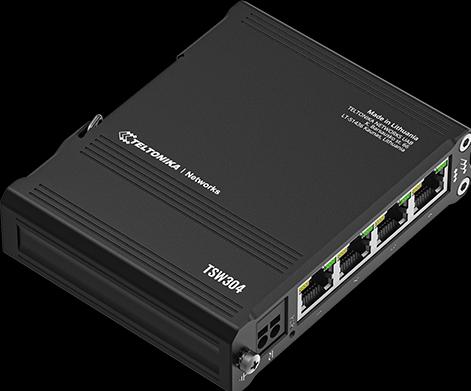

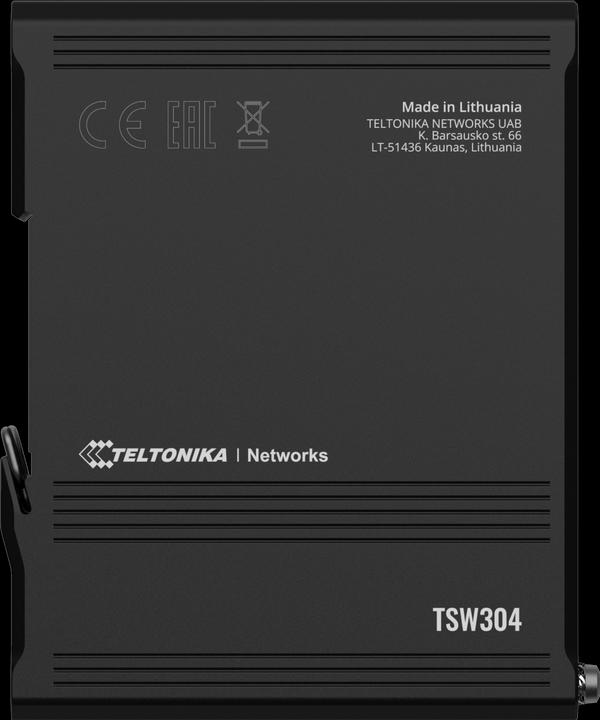

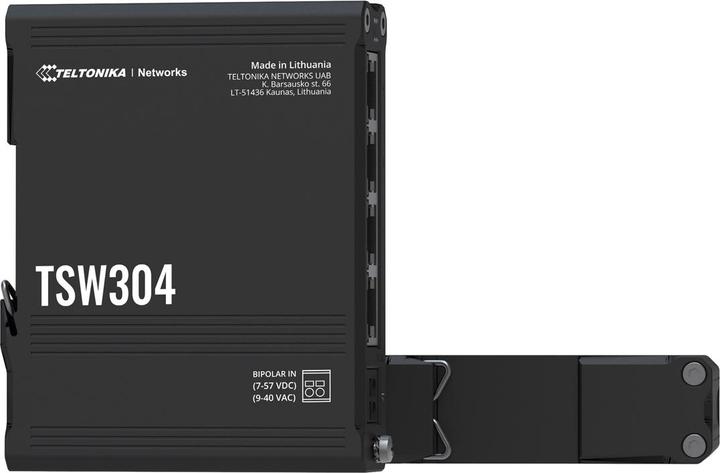

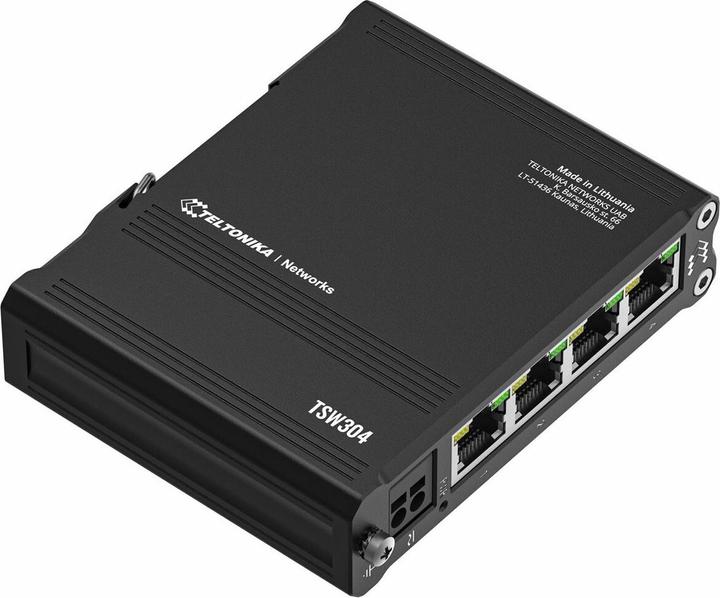

The TSW304 is Teltonika Networks' first unmanaged switch with integrated DIN rail mounting. It is equipped with four Gigabit Ethernet ports that support Ethernet standards IEEE802.3, IEEE802.3u, and 802.3az. The TSW304 is designed for easy installation and features a compact size with a shock-resistant housing that includes the integrated DIN bracket.

The 10/100/1000 Mbps Ethernet ports provide cost-effective, high-bandwidth solutions for reliable data throughput. The 2-pin industrial power connector supports a wide range of supply voltages (7-57 VDC and 9-40 VAC).

Technical Details:

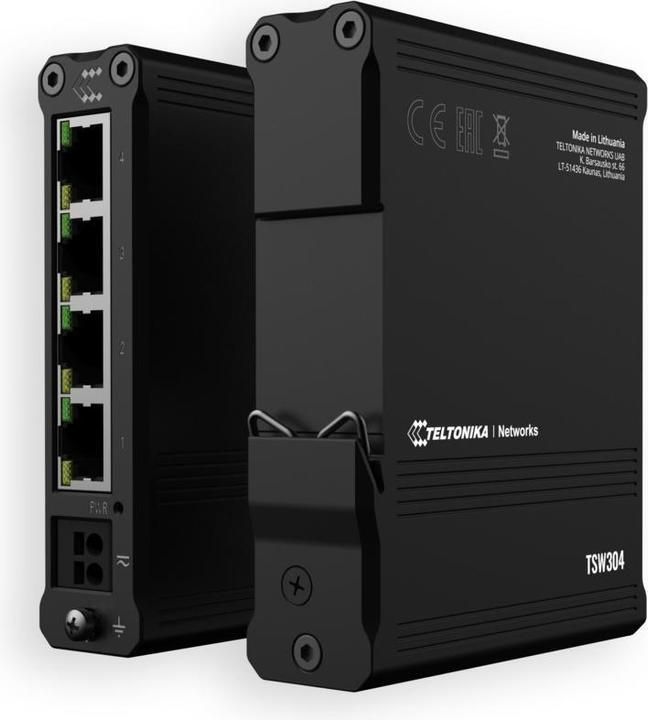

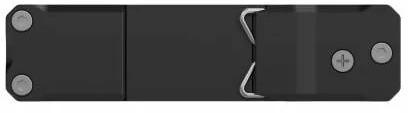

  • DIN Rail: Built-in, integrated DIN mounting
  • Dimensions: 102 x 25 x 81.5 mm
  • Gigabit Ethernet: 4 x Gigabit Ethernet with speeds of up to 1000 Mbps
  • Supply Voltage: 7-57 V
  • Durability: Robust aluminum housing
  • Operating Temperature Range: -40 °C to 75 °C

Included in the package: TSW, Quick Start Guide, packaging box

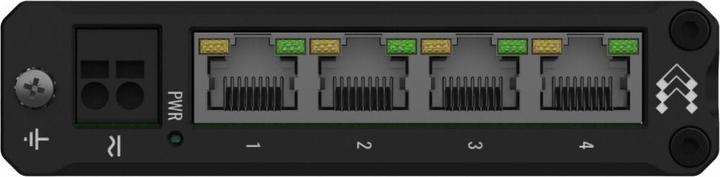

Power Supply Option: 2-pin power connector, 7-57 VDC / 9-40 VAC
Power Consumption: Idle: < 0.26 W, Max.: < 1.44 W
Ethernet: 4 x 10/100/1000 Ethernet Ports
Status LEDs: 8 x Ethernet, 1 x Power
Protection Class: IP30

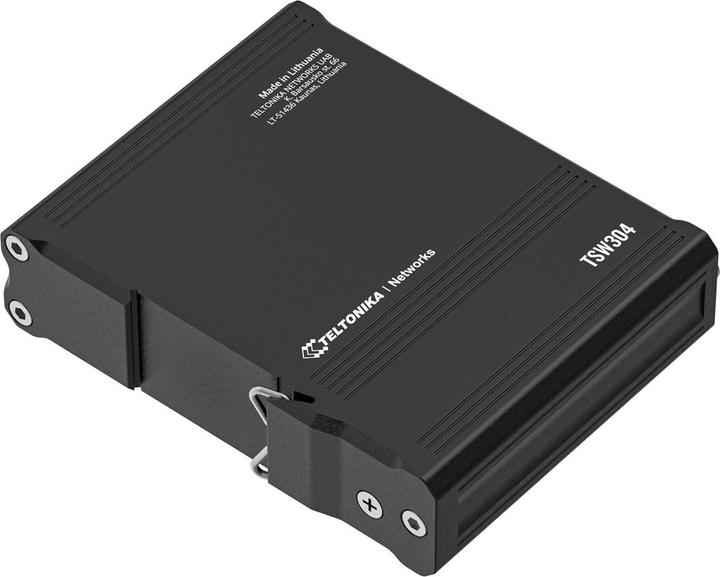

Housing: Aluminum housing with wall or DIN rail mounting option and grounding capability

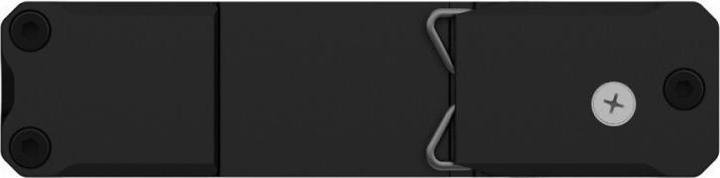

Installation: DIN rail mountable (no additional kit required)
Weight: 210 g
Bandwidth: 8 Gbps
Packet Buffer: 128 KB
Jumbo Frame Support: 9216 Bytes
MAC Address Table Size: 2K entries
Auto MDI / MDI-X Cable Detection: Yes.

Key specifications

Max. port speed
1000 Mbit/s
Network connections
RJ45 (4x)
Switchtype
DIN Rail Switch
Management
Unmanaged
Switch functions
PoE
Item number
24894381

General information

Manufacturer
Teltonika
Category
Network switches
Manufacturer no.
TSW30400B000
Release date
24.5.2023
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

Switch properties

Switchtype
DIN Rail Switch
Number of ports
4 Ports
PoE Standard
Passive 24V PoE-in
Management
Unmanaged
Switch functions
PoE
switching layer
Layer 2
Switching capacity
8 Gbit/s
MAC adress table size
2000
IGMP Snooping
v1
Manufacturer Type
TSW304

Network connections

Network connections
RJ45 (4x)
Max. port speed
1000 Mbit/s
Max. port speed RJ45
1000 Mbit/s
Max. Port speed
1000 Mbps / 1 Gbps

Application range

Application range
Network

Mains supply properties

Network operation
Power supply unit redundant
Power consumption
1.44 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x quick start guide, 1x TSW304

Product dimensions

Length
8.15 cm
Width
10.20 cm
Height
2.50 cm
Weight
210 g

Package dimensions

Length
20 cm
Width
20 cm
Height
5 cm
Weight
100 g
