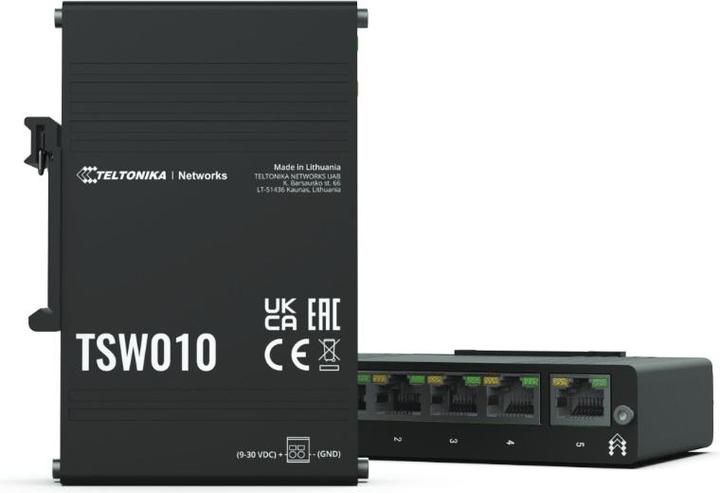

Teltonika TSW010

The TSW010 offers the most cost-effective way to expand network connectivity to multiple Ethernet devices. Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

Thanks to the wide range of supported supply voltages (9-30 V) and its robust design, the device is suitable for professional solutions. Its compact size and integrated DIN rail mount allow for easy installation in various industrial environments.

Ethernet

LAN: 5x RJ45 ports, 10/100 Mbit/s, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto-MDI/MDIX crossover

Power Specifications

Bandwidth (non-blocking): 1 Gbit/s
MAC address table size: 2K entries
Jumbo frame support: 2048 bytes

Power Supply:

Connection: 2-pin industrial DC power supply socket
Input voltage range: 9 - 30 V DC
PoE (passive): Passive PoE, with the option to power through the first LAN port, not compatible with IEEE 802.3af, 802.3at, and 802.3bt standards
Power consumption (idle/max.): Idle: 0.3 W/max.: 0.9 W

Physical Interfaces (Ports, LEDs)

Ethernet: 5x RJ45 connectors, 10/100 Mbit/s
Status LEDs: 1x Power LED, 10x LAN status LEDs
Power supply: 1x 2-pin industrial DC power socket

Physical Specification

Housing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
Weight: 146.5 g
Mounting options: DIN rail or wall mounting (additional kit required), placement on a flat surface

Certification and Approvals

Regulatory: CE, REACH, RoHS, WEEE; UKCA, FCC, IC, CB, RCM

Operating Environment

Operating temperature: -40°C to 75°C
Humidity during operation: 10% to 90% non-condensing
Ingress protection:...
