Televes OB4470 Optical Box 4 Outputs with 70m Cable

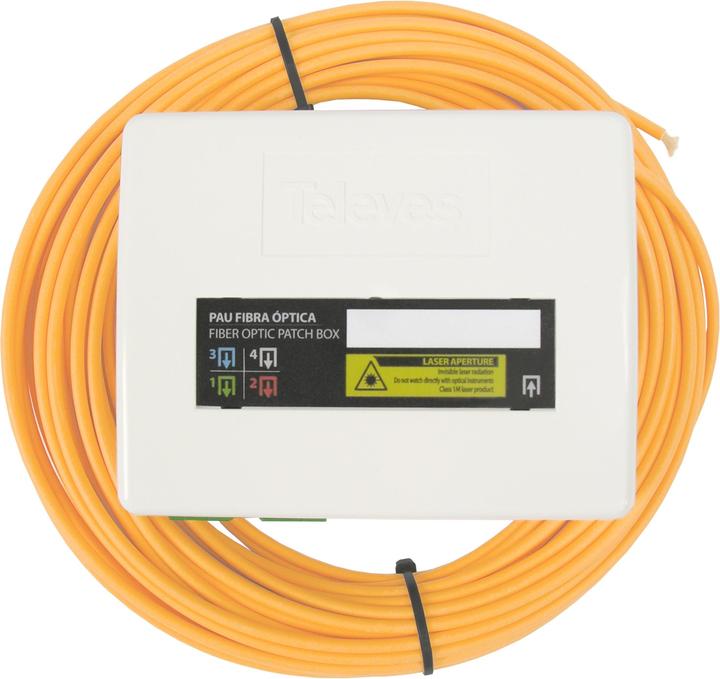

Optical patch box pre-assembled in roll boxes with 4 SC/APC outputs

Suitable as a connection unit or termination unit for a fiber optic network. The patch box serves as a handover and testing point for the fiber optic network in communication infrastructures. It contains Cca fibers and is therefore recommended for installation in individual buildings (airports, hospitals, shopping centers, schools, universities) that require a high level of safety due to the large number of people. The Euroclass Cca guarantees an appropriate level of safety regarding fire behavior and the emission of toxic fumes, thereby reducing the risks of a fire.

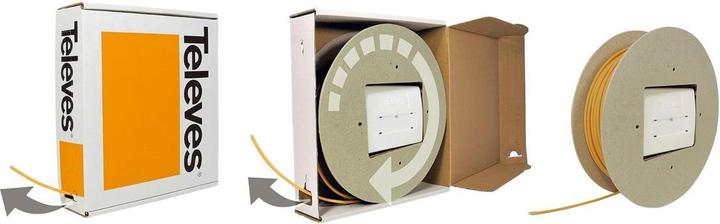

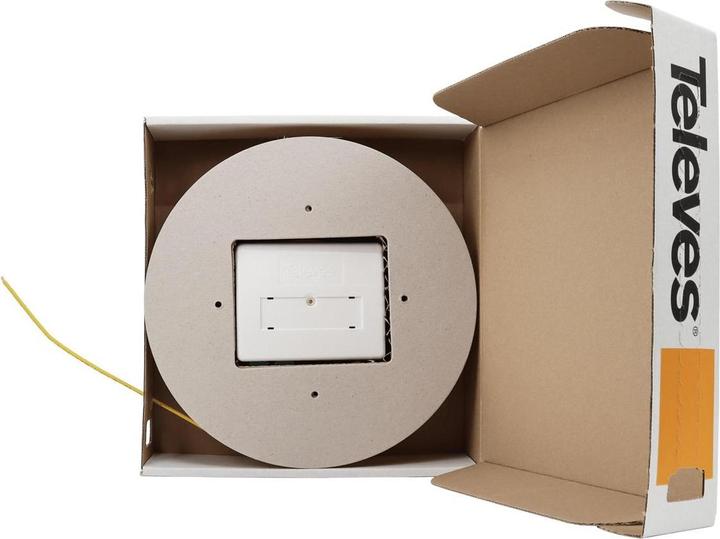

The patch box includes fiber optic cables, one end of which is pre-connected with 4 SC/APC connectors at the patch box. This provides the installer with greater comfort and flexibility during installation, as the fiber can be routed through the various cable channels to the desired point. The installer only needs to perform the splice or connection of 4 fiber optic connectors at the connection point. Additionally, the fibers are supplied in a patch box with a spool, which significantly facilitates cable laying and reduces installation time as well as the risk of damaging the fibers.

The design also allows for installation in other types of premises (auto repair shops, classrooms, workstations, cabinets, etc.) as well as use as a connection point.

Art. No. OB4470
Length: 70 m

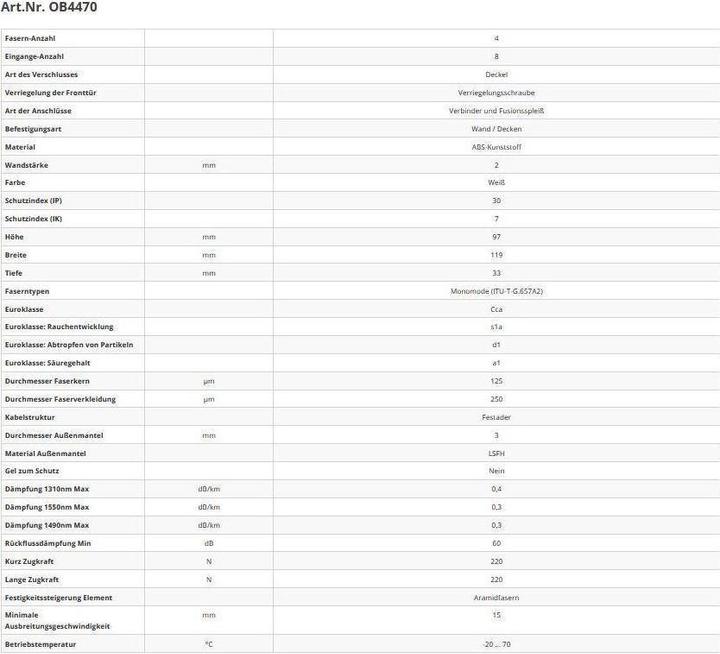

Product data
Ref. No.: 231534
EAN13: 8424450186992

Highlights

• Made from robust ABS plastic, white color (RAL 9003)
• With a capacity of up to 4 SC/APC output connectors
• Equipped with ITU-T G657A2 single-mode fibers and EU fire protection class Cca
• Fitted with 4 “SC/APC” socket-to-“SC/APC” socket simplex single-mode adapters (with self-locking cover).
