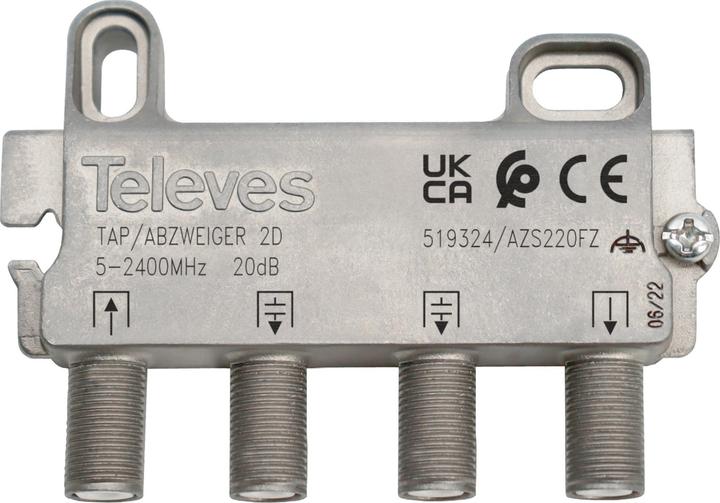

Televes Branch
Delivered between 2.2.2027 and 16.2.202710 items ordered
Free shipping on orders over 50.–
In Detail
2-way splitter with F-connectors for SMATV installations. With its branch losses (20 dB), it is suitable for installation in 4 to 6 floors.
Due to the reduction in electronic components, it exhibits very efficient electrical behavior. Additionally, its Zamak housing provides good shielding.
It is designed for indoor installation and can be mounted on walls, on mounting plates, or on a standard DIN rail. Delivered in boxes containing 10 units each.
Highlights
- Flexibility in installation: can be screwed to the wall, mounted on plates with nuts at the connections, or installed on a standard DIN rail (with adapter No. 519901)
- Convenient cable screwing thanks to a 10º angle of the F-connectors towards the installation wall
- Space optimization in enclosures and cabinets: the inputs and outputs are always on the same side
- Better organization of the installation: allows cabling to be routed from the rear
- The elements of the F series can be connected with the grounding screw, requiring only a single grounding cable
- The signal level is maintained at the sockets even with long cables, thanks to better response behavior of the flatness
- Excellent reliability: robotic manufacturing with next-generation microcomponents
- 100% European design, quality, and manufacturing
Features
- Low insertion losses
- Good shielding (Class A) made of Zamak
- F-connectors with longer threads to facilitate and secure installation on a mounting plate
- Indoor installation
- Includes grounding screw
- Bidirectional DC pass-through between inputs and outputs.
30-day right of return
24 Months Warranty (Bring-in)
