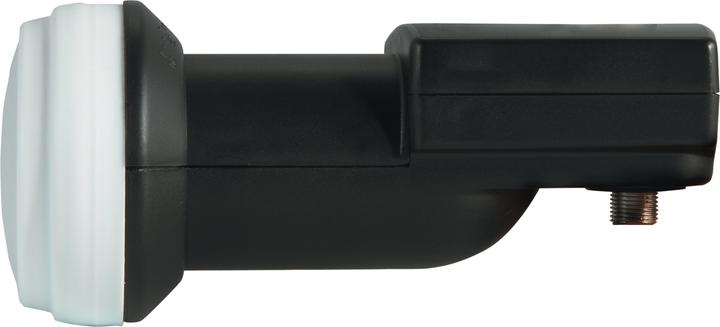

TechniSat 0019/8194 Universal V/H LNB, 40mm, with satellite finder

The LNB is suitable for all satellite dishes with a 40 mm feed mount and is designed for receiving TV, radio, and multimedia services broadcast via satellite. It is intended for single-user operation (Single LNB) and features a signal output that can be directly connected to a receiver. The integrated level meter and compass make the LNB perfect for use in camping and caravan applications, allowing for quick alignment of the antenna to the satellite being received. Its design protects the Universal V/H LNB from interference caused by LTE mobile signals.

Main Features:
Technical Details:

• Low-Band Input Frequency Range: 950 - 1950 GHz
• High-Band Input Frequency Range: 1100 - 2150 GHz
• Low-Band LO Frequency: 9.75 GHz
• High-Band LO Frequency: 10.6 GHz
• High-Band Output Frequency Range: 11700 - 12750 MHz
• Low-Band Output Frequency Range: 10700 - 11900 MHz
• Local Oscillator (LO) Phase Noise (10 kHz): 75 dBc/Hz
• Noise Figure: 0.9 dB
• Output Resistance: 75 Ohm
• Switching Frequency (max.): 22 kHz
• Temperature Drift: 2.5 MHz
• Initial Accuracy (±): 1 MHz
• Supply Voltage Ca (Vertical Polarization): 12 - 14.5 V
• Supply Voltage Cb (Horizontal Polarization): 16 - 20 V

Connections and Interfaces:

• Number of RF Connections: 1
• RF Connection Type: F

Power:

• Power Consumption: 150 mA

Weight and Dimensions:

• Feedhorn Diameter: 4 cm
• Width: 120 mm
• Depth: 57 mm
• Height: 57 mm
• Weight: 102 g
• Color: Black

Packaging Data:

• Packaging Width: 140 mm
• Packaging Depth: 63 mm
• Packaging Height: 63 mm
• Package Weight: 120 g

Operating Conditions:

• Operating Temperature: 10 - 60 °C

Scope of Delivery:

• Quantity: 1

Logistical Data:

• Quantity per Package: 1 piece(s).
