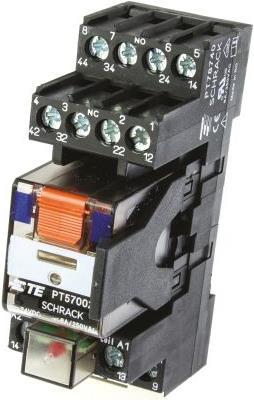

TE Connectivity 4PDT DIN relay pack,24 Vdc

Ratings
BrandMore from TE Connectivity
Delivered between Fri, 26.6. and Mon, 29.6.
5 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Coil voltage: 24V DC
Contact arrangement: 4-pole changeover
Switching current: 6 A
Connection type: Screw
Coil resistance: 777 Ω
Application type: Interface
Length: 73.5 mm
Depth: 27 mm
Height: 58 mm
Dimensions: 73.5 x 27 x 58 mm
Minimum operating temperature: -40°C

VDE interface modules, PT relays. The package includes relays, DIN rail socket, module, holder, and marking flag. Mechanical and electrical indicator flag for manual testing. DC version with LED and protection diode module. AC versions complete with LED and varistor module. The DIN coupling has a logical layout for control/load connections, with a second A2 connection terminal for easier wiring. Complies with IEC 61810-1.

Key specifications

Input voltage
24 V
Output voltage
240 V
Electric current output
6000 mA
Number of poles
4x

General information

Item number
10102937
Manufacturer
TE Connectivity
Category
Relays
Manufacturer No.
PT5S7LC4 1415076-1
Release date
13.11.2018

Relay properties

Input voltage
24 V
Output voltage
240 V
Electric current output
6000 mA
Resistor
777 Ω
Switching function
Changer
Number of poles
4x
Max. Switching capacity
0 kW

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Product dimensions

Length
73.50 mm
Width
27 mm
Height
58 mm
