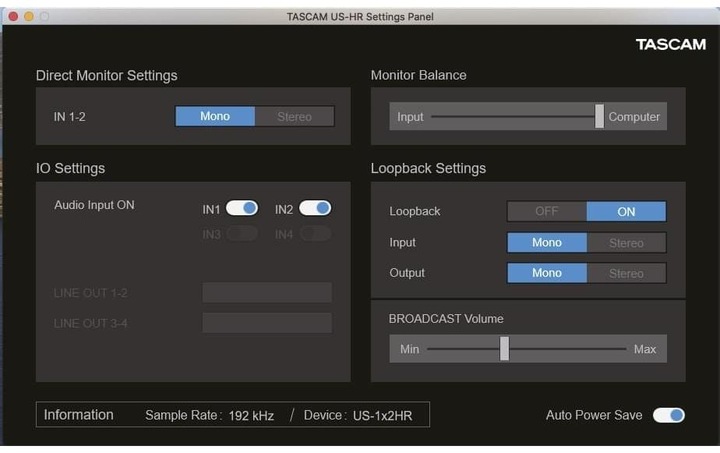

The US-1x2HR is the smallest high-resolution USB audio interface in Tascam's US-HR series. It features a microphone input and an instrument input, making it ideal for easy and intuitive recording of guitar and vocals using a computer. The built-in loopback function and support for Open Broadcaster Software (OBS Studio) also make it a great choice for creating podcasts and live streaming applications. Additionally, it's a perfect solution for providing high-quality music from a computer to an amplification system, such as for a birthday party.
The compact US-1x2HR impresses with many performance features, including high resolution up to 24-bit and 192 kHz sampling rate, extremely low latency with a Windows buffer size starting at four samples, and ultra-HDDA microphone preamps with 48-volt phantom power for outstanding sound quality with extremely low noise. It also includes a robust USB-C port and a rich selection of included software that lets you start recording and producing right away.
The lightweight interface is ideal for mobile recording and production with an iPhone or iPad and the included Cubasis LE. Whether you're taking it with you to your practice space, reporting from a live event, or recording nature sounds outdoors, all options are open to you.

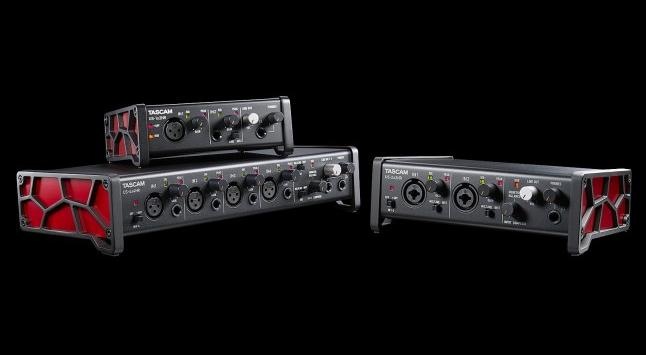

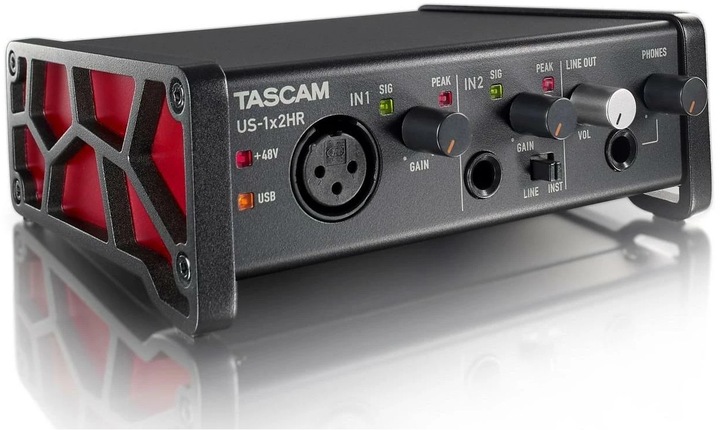

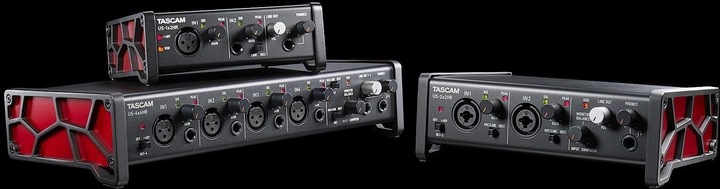

All US-HR models feature a unique honeycomb structure of cast aluminum on the side panels. This concept not only makes for a sleek, eye-catching design but also provides just the right amount of weight so the interface doesn't move when you connect or disconnect cables. The sides are angled, and the resulting upward sloping user interface is ergonomic and easy to handle.
If you are looking for a clear, user-friendly audio interface with two inputs and two outputs, very low noise, low distortion, and excellent sound quality, the Tascam US-1x2HR can be your reliable partner for many years.
Number of inputs | 1 |
Connection type | USB |
Item number | 14390409 |
Manufacturer | Tascam |
Category | Audio interfaces |
Manufacturer no. | US-1X2HR |
Release date | 22.10.2021 |
Colour | Black, Red |
Exact colour description | Black, Red |
Connection type | USB |
Number of inputs | 1 |
Interface Equipment | Guitar/Bass Input, Microphone input, Phantom Power Supply |
Sample rate | 192 kHz |
Audio resolution | 24 bits |
Audio inputs | 6.3 mm jack R/L stereo pair (1x), Stereo Cinch RCA (1x), XLR stereo pair (1x) |
Audio outputs | Headphones Out (1x), Stereo Cinch Master (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x installation guide for DAW plug-ins, 1x installation guide for DAW software, 1x operating instructions, 1x US-1x2HR, 1x USB cable (type A to type C) |
Width | 146 mm |
Depth | 120 mm |
Height | 55 mm |
Weight | 623 g |
Length | 17.50 cm |
Width | 16.70 cm |
Height | 10.40 cm |
Weight | 946 g |
