Tamiya Microcomputer Robot (Crawler Type)

Ratings
BrandMore from Tamiya
Currently out of stock
Free shipping starting at 50.–

Product details

Art. No: 300071201
Product Name: Stem Microcomputer Robot (Caterpillar)

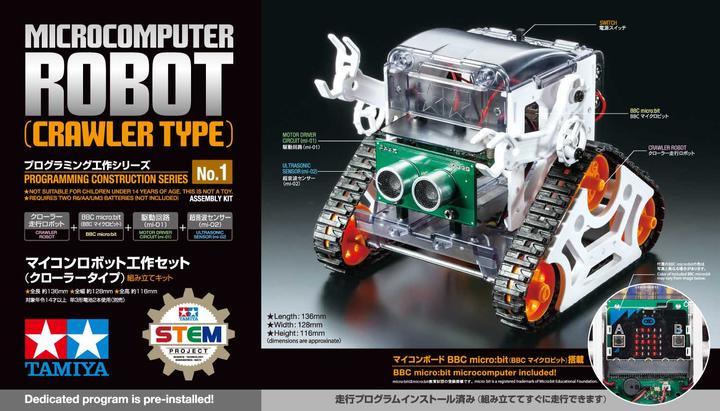

A programmable robot equipped with a "BBC micro:bit" board. This educational kit is the perfect introduction to the world of STEM subjects, which stands for Science, Technology, Engineering, and Mathematics. The caterpillar robot kit connects these areas, from assembly and operation to programming the control system.

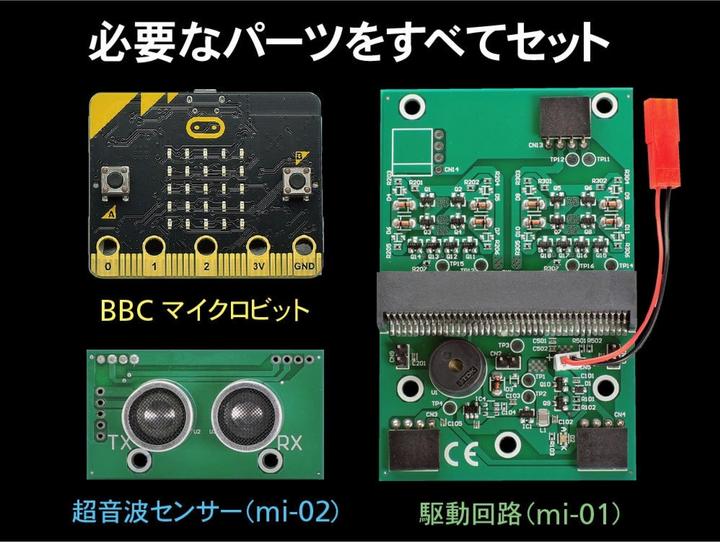

The robot with the microcomputer learning board "BBC micro:bit" features an ultrasonic sensor and dual motor control. When the ultrasonic sensor detects an obstacle, the "BBC micro:bit" unit receives this information and controls the two motors in the dual gearbox accordingly. A pre-installed basic driving program runs automatically, allowing the robot to avoid obstacles. The two chain drives are controlled separately.

A crank-shaped sprocket, which is in contact with the chain, moves the left and right arms up and down during movement, creating a typical robot behavior. The upper part of the robot consists of a light gray transparent body part, allowing you to see the LEDs of the "BBC micro:bit" unit clearly. The LEDs indicate which program has been selected before starting.

The crawler chassis and the body cover are made of durable plastic. With the illustrated and multilingual instructions, the microcomputer robot can be easily assembled and put into operation. The robot's brain, the "BBC micro:bit" unit, can be programmed according to your own ideas using the free software "MakeCode.".

Key specifications

Level
Beginner
Compatible hardware
Micro:bit
Movement type
sail

General information

Item number
14553220
Manufacturer
Tamiya
Category
Robotics kit
Manufacturer no.
TAM 71201
Release date
4.1.2021

Material

Material group
Plastic

Target group

Minimum age
14 years
Level
Beginner

Compatibility

Compatible hardware
Micro:bit

Robotics properties

Robot type
Vehicle robot

Robotic equipment + Functions

Movement type
sail
Sensors
Ultrasound sensor
Engine type
DC motor
communicating
Cable

Power supply

Power supply
Battery operated

Origin

Country of origin
Philippines

Scope of delivery

Scope of delivery
Microcomputer Robot (Crawler Type)
Additionally required (not included)
2 x AA batteries, Data cable from USB to Micro USB, Internet-enabled PC, Model making knife, Screwdriver (+/cross-recess) large, Screwdriver (+/cross-recess) medium, Wire cutting pliers

Product dimensions

Length
37.40 mm
Width
51 mm
Height
22.60 mm
Weight
4820 g
