Name: Barebone SuperServer Big Tower Dual Socket 4189 SYS-740GP-TNRT
Brand: Supermicro
SKU: 25120252
Price: 1852 CHF
Availability: InStock

productDetailPageQuery

Supermicro

The Supermicro Barebone SuperServer Big-Tower Dual Socket 4189 SYS-740GP-TNRT is a powerful server solution designed for demanding applications and data processing. With support for two LGA 4189 sockets, this server allows for the installation of Intel Xeon Scalable processors, ensuring high computing power and efficiency. The server accommodates up to 16 DDR4 ECC LRDIMM memory slots, supporting a maximum memory capacity of up to 4096 GB, making it ideal for memory-intensive applications. Additionally, the server features eight 3.5-inch drive bays and two M.2 connectors for flexible storage expansion. The dual LAN functionality with an Intel X550 10GBase-T Ethernet controller provides a fast and reliable network connection. Thus, the SuperServer SYS-740GP-TNRT is a robust and scalable solution for businesses that have high demands for their server infrastructure.

- Supports up to 6 TB of Intel Optane Persistent Memory in 16 DIMM slots
- Intel C621A controller for 10 SATA3 connections with RAID support
- Six PCI-Express 4.0 x16 and one PCI-Express 4.0 x8 slot for expansion options
- Dual LAN with 10GBase-T Ethernet for high network speeds
- Optimized for use in data-intensive applications and virtualization scenarios.

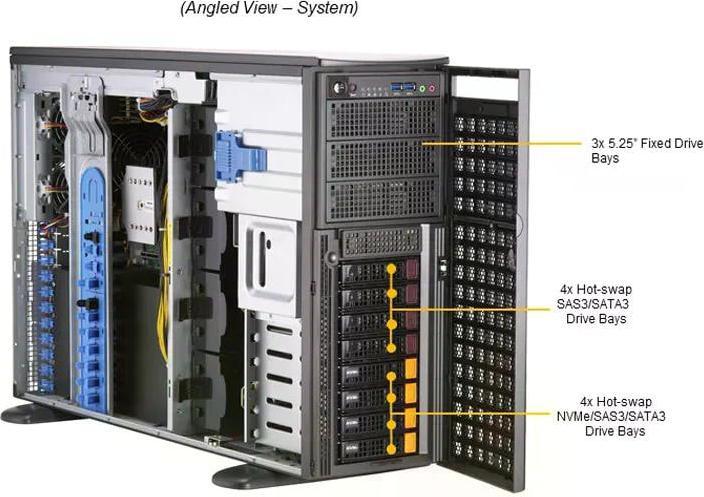

Actual product image Supermicro Barebone SuperServer Big Tower Dual Socket 4189 SYS-740GP-TNRT

Key specifications

Rack height units

Number of CPU sockets

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

Processor family

Max. memory slots
