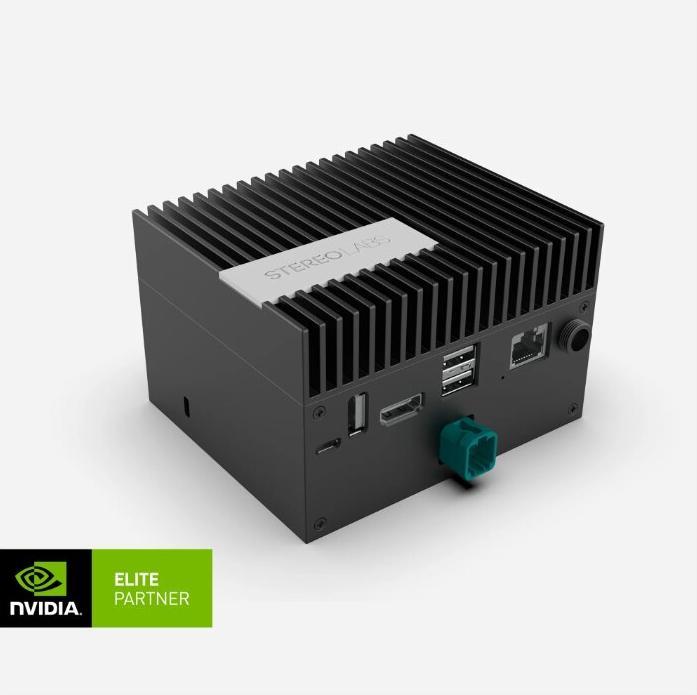

Stereolabs ZED Box NVIDIA? Jetson Orin? NX 16GB Without GMSL2 256GB Without GNSS

The ZED Box Orin series offers you the optimal solution for using the new ZED X GMSL2 cameras. With an optional Quad-Port GMSL2 interface, you can manage either two ZED X cameras or up to four individual GMSL2 cameras.

The ZED Box Jetson Orin NX is perfect for both indoor and outdoor applications, thanks to a variety of I/O options such as USB 3.2, HDMI, and PoE+. With the latest RTK-GNSS technology, it now enables highly precise autonomous navigation. Wi-Fi 6 and LTE/5G compatibility are provided through M.2 E-Key modules with 5 antenna connections, ensuring low latency and reliable wireless data transmission. With integrated PoE+ and the ZED Hub remote control, the deployment and management of multi-camera edge implementations in digital twin and smart building projects are accelerated.

General Specifications:

• Includes 1x WiFi 6 connectivity
• Power supply: PoE+ (25W) or DC-IN 5A 12-19V
• NVIDIA Jetson power mode: 10W | 15W | 25W
• Passively cooled aluminum housing

Dimensions: 118 x 92 x 71 mm (LxWxH) / 4.6 x 3.6 x 2.7 inches
Mounting options: 92x45mm mounting holes, wall (brackets included) and DIN rail mounting
Weight: 0.7 kg (1.5 lb)

NVIDIA Jetson Orin NX 16GB Specifications:

• NVIDIA Jetson Orin NX 16-GB module
• AI performance: 100 TOPS
• GPU: 1,024-core NVIDIA Ampere architecture with 32 Tensor cores @918MHz
• CPU: 8-core Arm Cortex-A78AE @2GHz
• DL accelerator: 2xNVDLA v2 @614MHz
• Memory: 16 GB LPDDR5 102.4 GB/s

Storage Options:

• SSD 256GB or 1TB

GMSL2 Option:

• Quad-Port GMSL2 interface for 2x stereo cameras or 4x mono cameras (1 to 4 GMSL2 cables included)

Delivery Contents:

• 1x ZED Box
• 1x GMSL2 cable.
