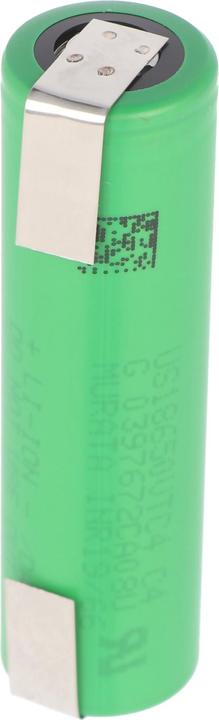

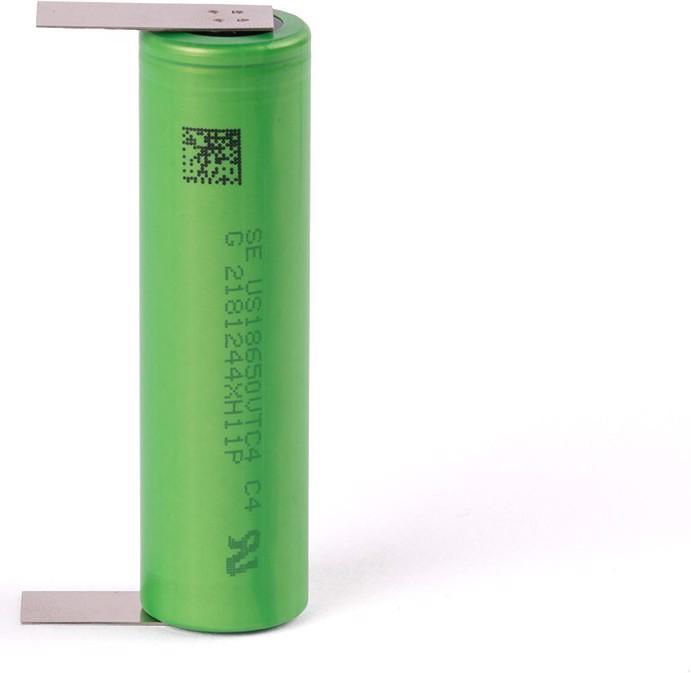

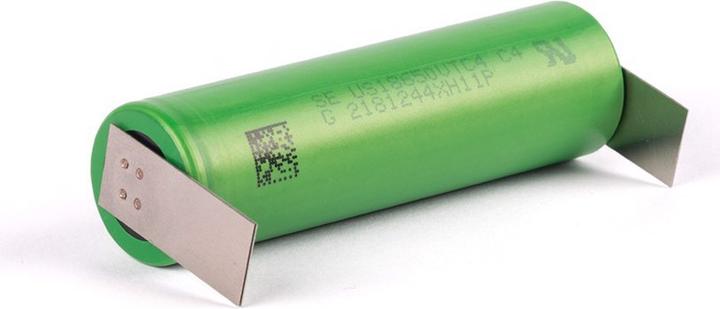

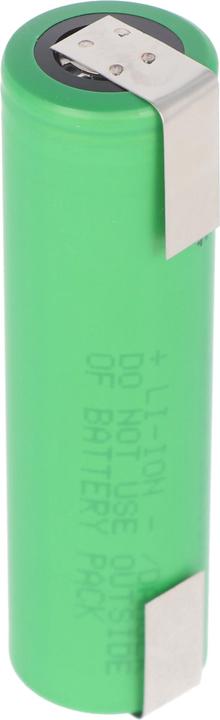

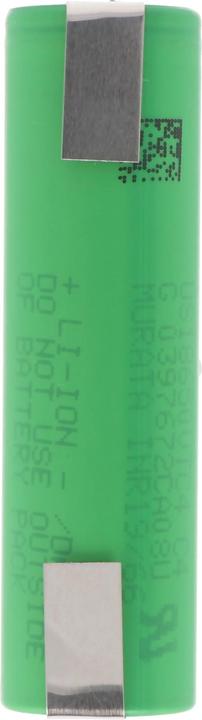

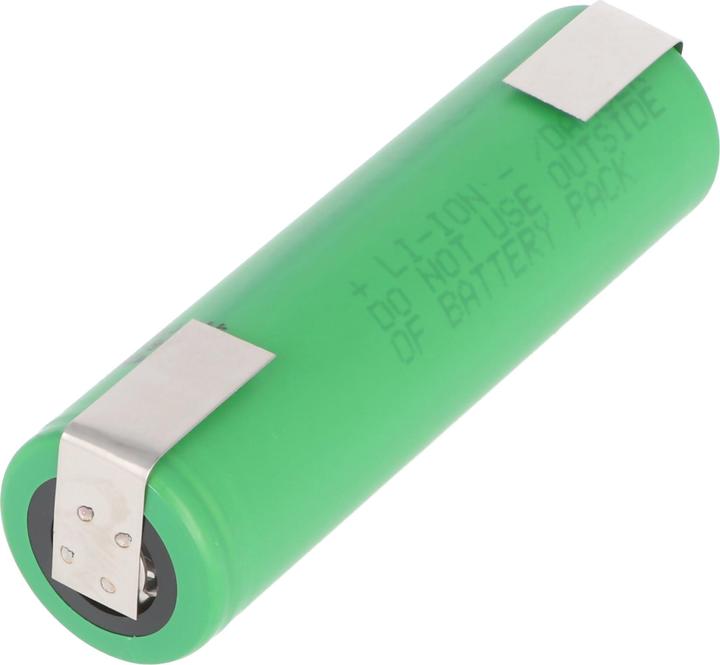

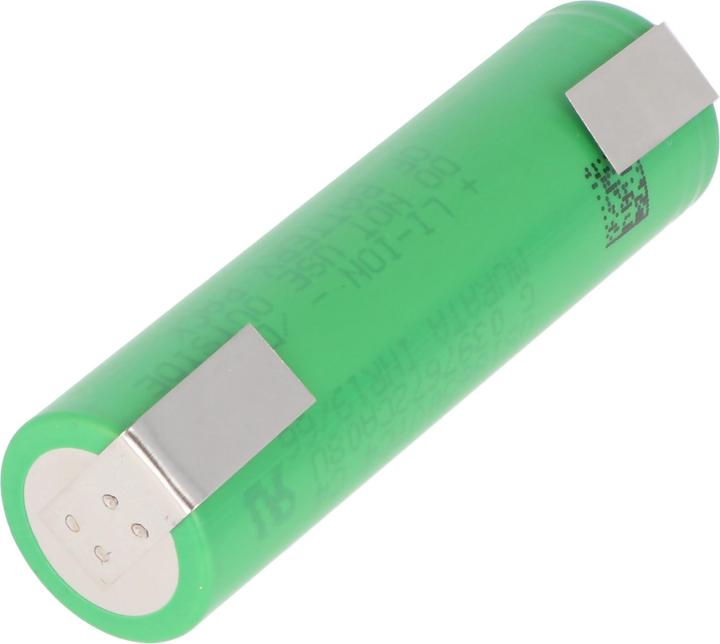

Sony Konion US18650 VTC4 battery - solder tag U

1 pcs., 2100 mAh, Rechargeable battery
Ratings
Currently out of stock

Product details

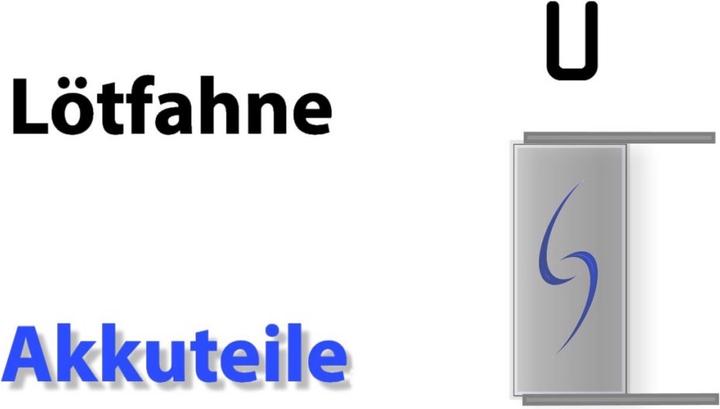

A high-quality high-current cell developed by Sony with a discharge current of up to 30A (15C). Ideal for tools and industrial applications. The Hilumin solder tab is spot-welded and measures: Width: 10 mm, Length: 25 mm. These items are custom-made and are non-returnable.

Type. Capacity (mAh): 2100mAh
Min. Capacity (mAh): 2000mAh
Nominal Voltage (Volt): 3.6V
Charge End Voltage (Volt): 4.2V ± 0.05V
Discharge End Voltage (Volt): 2.5V
Max. Charge Current (Amperes): 4A
Max. Discharge Current: 15C = 30A
Chemical Composition: LiNiMnCoO2
Protection Circuit: no
Positive Terminal (Design): flat (Flat Top)
Diameter (mm): 18.2 mm ± 0.05 mm
Height (mm): 65.1 mm ± 0.15 mm
Weight (g): 46 g ± 0.01 g
Charging Method: CC-CV
Test Results (Discharge Curve): Dampfakkus

Safety Notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by high energy density.

Technical Data for "Sony Konion US18650 VTC4 - 2100mAh, 3.6V + Solder Tab U":

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this increases their lifespan.

Key specifications

Items per sales unit
1 pcs.
Accumulator type
Rechargeable battery
Item number
14070353

General information

Manufacturer
Sony
Category
Battery charger
Manufacturer no.
AKT-1006501
Release date
23.10.2020

Battery properties

Accumulator type
Rechargeable battery
Battery type
Li-ion
Voltage
3.60 V
Capacity
2100 mAh
Items per sales unit
1 pcs.

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
46 g

Ingredients and instructions for use

Ingredients
Dimensions 65.1x18.2mm. VTC4, a high-quality high-current cell developed by Sony with a discharge current of up to 30A (15C)! Ideally suited for tools and industry. The Hilumin solder tag is spot-welded and has the dimensions: width: 10 mm, length: 25 mmSony Konion US18650 VTC4 unprotected + solder tag UThese items are customised and cannot be exchanged! Capacity (mAh)2100mAhMin. capacity (mAh)2000mAhNominal voltage (Volt)3.6VFinal charge voltage (Volt)4.2V ± 0.05VEntFinal charge voltage (Volt)2.5VMax. Charging current (Ampere)4Amax. current output15C = 30AChemical add.LiNiMnCoO2Protective circuitnonePlus terminal (design)Flat topDiameter (mm)18.2 mm ± 0.05 mmHeight (mm)65.1 mm ± 0.15 mmWeight (g)46 g ± 0.01 gCharging methodCC-CVSafety instructions:Lithium cells may only be operated with protective electronics!Please note that lithium cells may only be used by authorised specialist personnel. Further properties:Lithium-ion batteries are thermally stable and are not subject to a memory effect.they work on the basis of lithium and are characterised by a high energy density.Technical data for "Sony Konion US18650 VTC4 - 2100mAh, 3.6V + solder tag U "Notes:Charging lithium-ion batteries requires a special charger that charges the batteries using a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or number of charging cycles (possibly up to double). Only lithium-ion chargers may be used for charging. However, cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous. Please dispose of them as prescribed by law in the municipal collection centres or in the [usually green] containers provided for this purpose by retailers.
