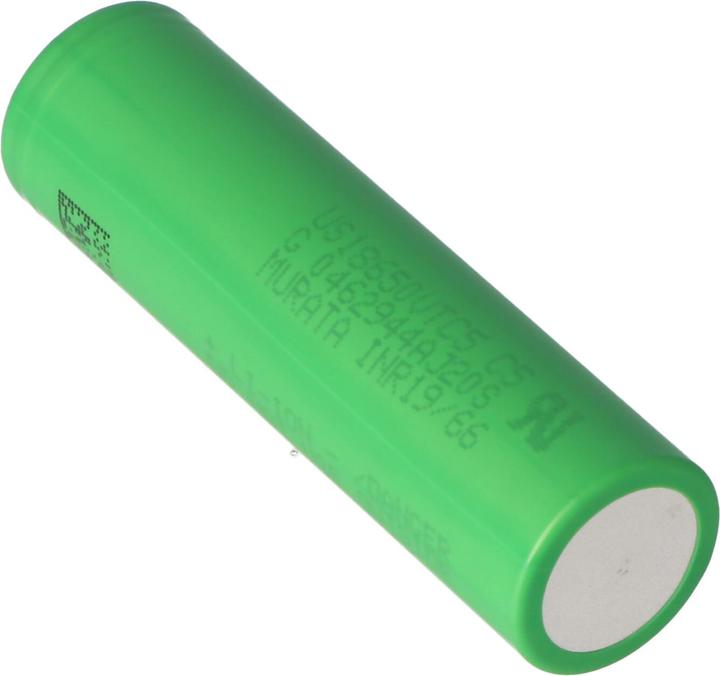

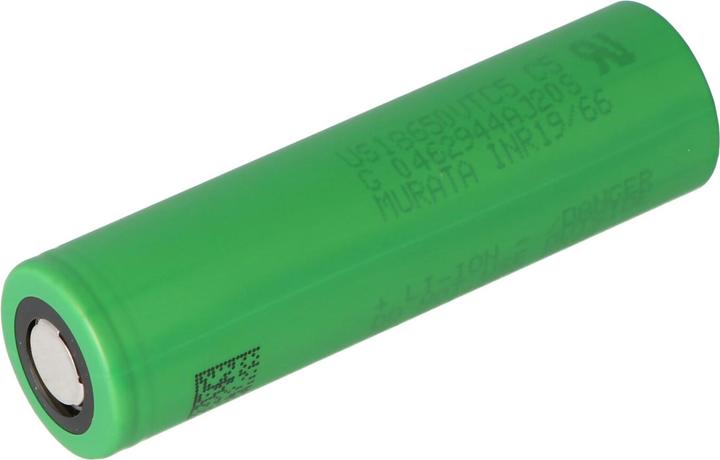

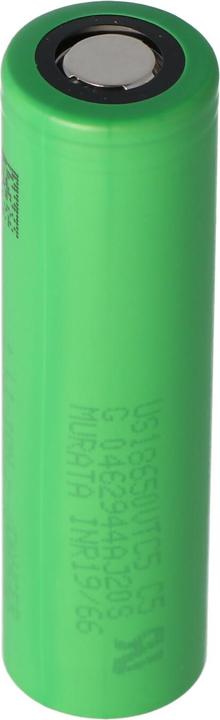

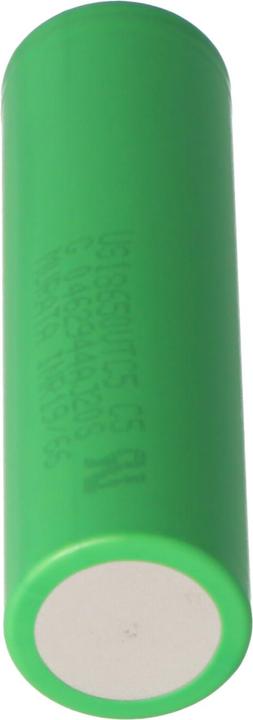

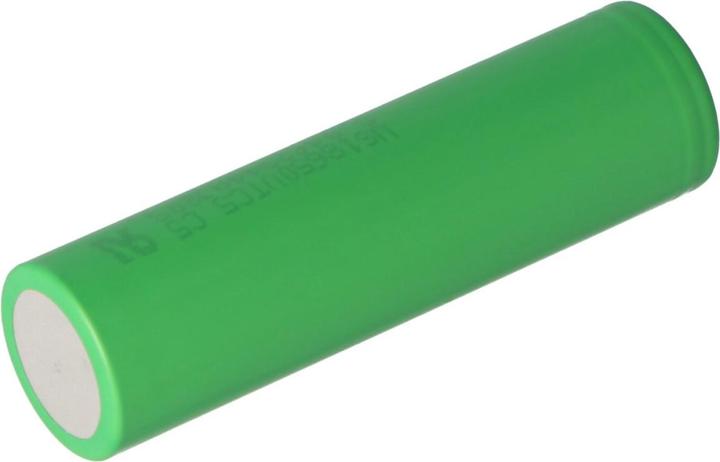

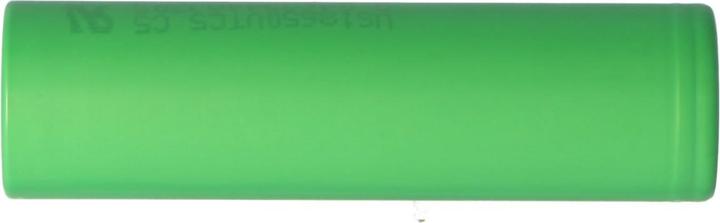

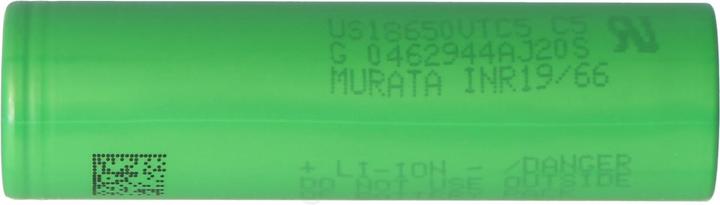

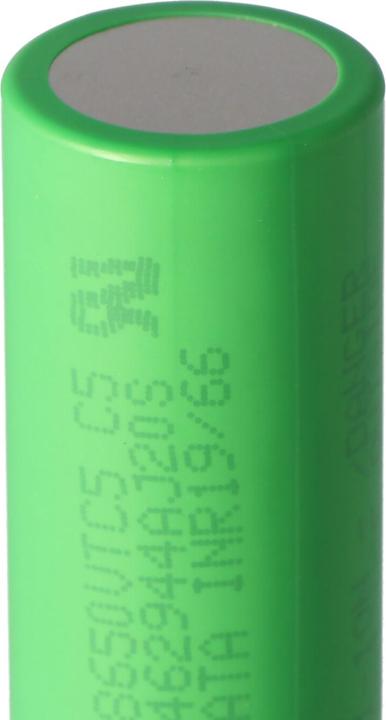

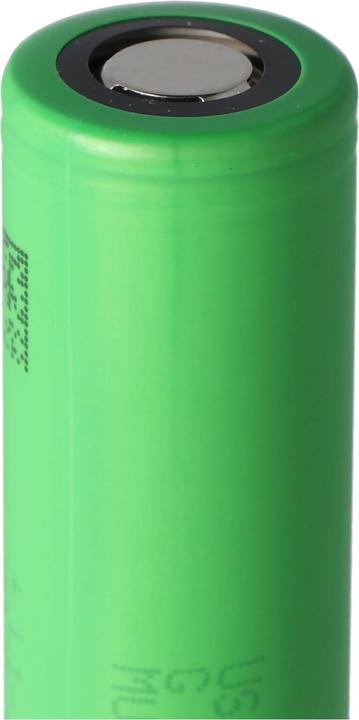

Sony AKKU US18650VTC5 - maximum 30A current output (Flat Top)

1 pcs., 2600 mAh, Battery + charger
Ratings
Delivered between Wed, 11.6. and Thu, 12.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

A high-quality high-current cell developed by Sony with a discharge current of up to 30A (12C). Ideal for tools and industrial applications. Sony Konion US18650 VTC5 unprotected.

Type: Capacity (mAh) 2600mAh, Min. Capacity (mAh) 2500mAh, Nominal Voltage (Volts) 3.6V - 3.7V, Charge Termination Voltage (Volts) 4.2V ± 0.05V, Discharge Termination Voltage (Volts) 2.0V, Charge Current (Amperes) 0.25A - 2.5A, Max. Charge Current (Amperes) 4A, Max. Constant Discharge Current (Amperes) 12C = 30A.

Chemical Composition: LiNiMnCoO2. Protection Circuit: No. Positive Terminal (Design): Flat (Flat Top). Diameter (mm) 18.2 mm ± 0.05 mm, Height (mm) 65.0 mm ± 0.15 mm, Weight (g) 45 g ± 0.1 g. Charging Method: CC-CV.

Safety Instructions: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Technical Data for "Murata / Sony Konion US18650 VTC5 - 2600mAh, 3.6V - 3.7V Flat Top": Normal Charge Current/Charge Duration 2500mA/3h, Max. Charge Current/Charge Duration 4000mA/2.5h, Operating Temperature Charging 0 °C - 45 °C, Operating Temperature Discharging -20 °C - 60 °C.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is beneficial to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially up to doubling).

Key specifications

Items per sales unit
1 pcs.
Accumulator type
Battery + charger
Item number
14550241

General information

Manufacturer
Sony
Category
Battery charger
Manufacturer no.
US18650VTC5-OB
Release date
3.1.2021

Battery properties

Accumulator type
Battery + charger
Battery type
Li-ion
Voltage
3.70 V
Capacity
2600 mAh
Items per sales unit
1 pcs.

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Sony fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Weight
45 g

Distributor

Address
Digitec Galaxus AG, Pfingstweidstrasse 60b, CH‑8005 Zurich

Ingredients and instructions for use

Ingredients
A high-quality high-current cell developed by Sony with a discharge current of up to 30A 12C! Ideally suited for tools and industry.Sony Konion US18650 VTC5 unprotected, 65x18.2mmTyp. Capacity (mAh)2600mAhMin. capacity (mAh)2500mAhNominal voltage (Volt)3.6V - 3.7VFinal charging voltage (Volt)4.2V ± 0.05VEntFinal charging voltage (Volt)2.0VCharging current (Ampere)0.25A - 2.5AMax. Charge current (Amps)4Amax. current output constant (Amps)12C = 30AChemical compositionLiNiMnCoO2Protective circuitnonePlus terminal (design)flat (flat top)Diameter (mm)18.2 mm ± 0.05 mmHeight (mm)65.0 mm ± 0.15 mmWeight (g)45 g ± 0.1 gCharging methodCC-CVSafety instructions:Lithium cells may only be operated with protective electronics!Please note that lithium cells may only be used by authorised specialist personnel, as incorrect handling or short circuits can lead to fire or explosion.Other properties:Lithium-ion batteries are thermally stable and are not subject to a memory effect.they work on the basis of lithium and are characterised by a high energy density.technical data for Murata / Sony Konion US18650VTC5 - 2600mAh, 3.6V - 3.7V flat rateCharging current normal/charging time2500mA/3hmmax. Charging current/charging time4000mA/2.5hOperating temperature charging0 °C - 45 °COperating temperature discharging-20 °C - 60 °CNote:Charging lithium-ion batteries requires a special charger that charges the batteries using a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or number of charging cycles (possibly up to double). Only lithium-ion chargers may be used for charging. However, cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous. Please dispose of them as prescribed by law in the municipal collection centres or in the [usually green] containers provided for this purpose by retailers.
