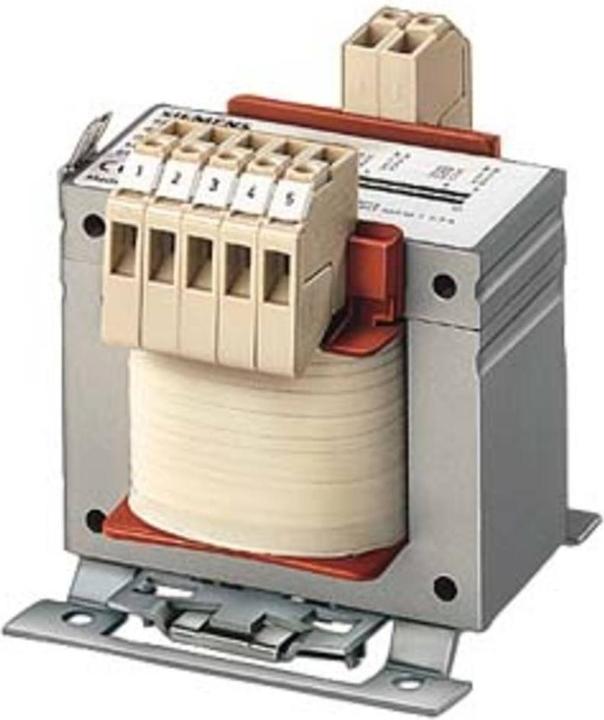

Siemens Transformer

Siemens digital industrial transformer 1-Ph. 4AM3242-8DN00-0EA0

Manufacturer: Siemens Digital Industries
Designation: Transformer 1-Ph. 0.063/0.19
Upri: 550
Type: 4AM3242-8DN00-0EA0
Designed as safety transformer: No
Designed as isolating transformer: No
Designed as economy transformer: No

Primary voltage:

• 1: 550 V
• 2: 525 V
• 3: 500 V
• 4: 480 V
• 5: 460 V
• 6: 440 V
• 7: 415 V
• 8: 400 V
• 9: 380 V
• 10: 230 V

Secondary voltage:

• 1: 24 V
• 6: 0 V
• 7: 0 V
• 8: 0 V
• 9: 0 V
• 10: 0 V

Rated apparent power: 63 VA
Insulation class according to IEC 85: B
Short-circuit proof: No
Relative short-circuit voltage uk: 8.4%

Dimensions:

• Width: 86 mm
• Height: 98 mm
• Depth: 90 mm

Protection class (IP): IP00
Toroidal core: No
Suitable for PCB mounting: No
Suitable for series mounting: No
Conductor material: Other

The 4AM transformers combine all the features of single-phase safety, isolating, control, and mains transformers. This allows you to master any application with flying colors. The control transformers are also characterized by their short-time performance.
