Siemens Small contactor 230 VAC 50/60 Hz 3 NO+1 NC

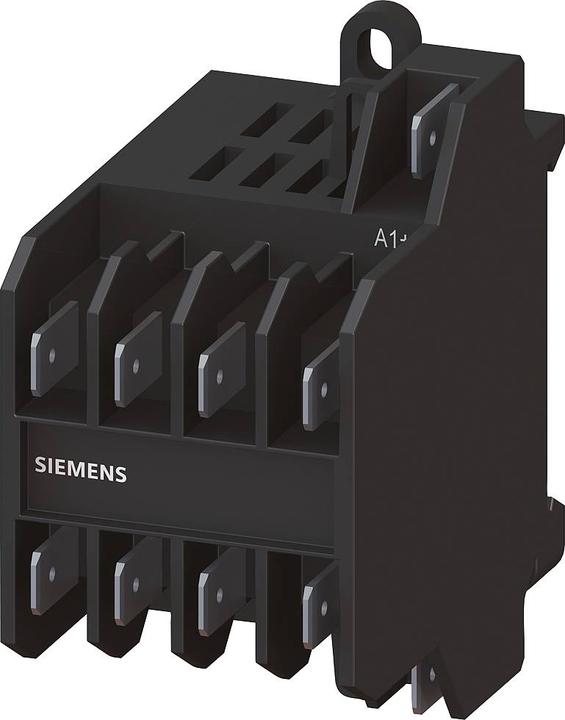

Siemens Digital Industrial Motor Contactor 3TG1001-1AL2

Manufacturer: Siemens Digital Industrial
Designation: Motor Contactor 3S+1Ö 230VAC
Type: 3TG1001-1AL2
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Type of voltage for actuation: AC
Rated operational current Ie at AC-1, 400 V: 16 A
Rated operational current Ie at AC-3, 400 V: 8.4 A
Rated operational power at AC-3, 400 V: 4 kW
Rated operational power NEMA: 3.67749374 kW
Suitable for rail mounting: yes
Number of auxiliary contacts as normally open: 1
Connection type main circuit: Flat plug connection
Number of normally closed contacts as main contacts: 3

Siemens Digital Industrial Motor Contactor 3TG1001-1AL2: additional details
Power relay, AC-3, 8.4 A, 4 kW / 400V, 3-pole, AC 230 V, 45-450 Hz, auxiliary contacts: 1 NO, flat plug connection 6.3 x 0.8 mm

Small Contactor SIRIUS 3TG10 for switching control signals in the control circuit, e.g., for household appliances, hoisting equipment, or in the installation sector. The 3TG10 small contactors are characterized by their compact width. They operate without humming, have a built-in auxiliary switch, and can be mounted in any installation position. The 3TG10 small contactors are available in AC or DC actuation, for various operational currents, with 4 normally closed contacts or 3 normally closed contacts and one normally open contact, and are offered with screw or flat plug connections. Simple, efficient, always up to date - the SIRIUS system modular design.

EAN: 4011209045002.
