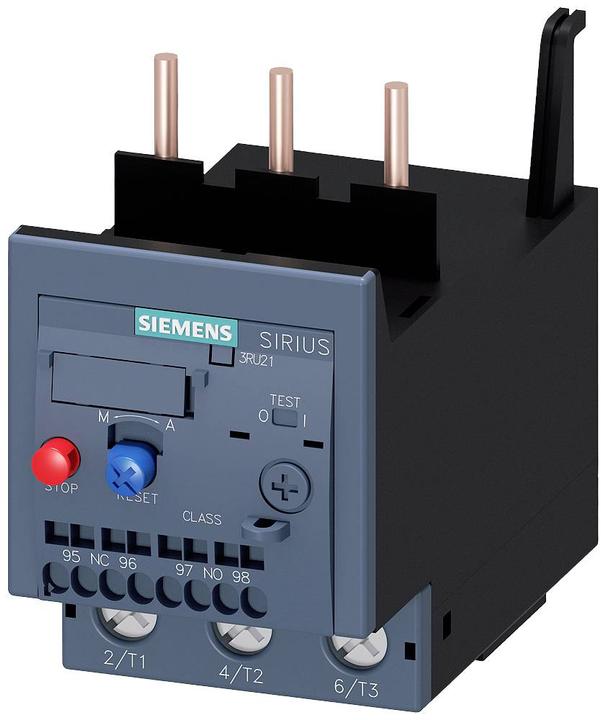

Siemens SIEM overload relay

Siemens Digital Industrial Overload Relay 3RU2136-1HD0

Manufacturer: Siemens Digital Industries
Designation: Overload Relay 5.5-8A
Type: 3RU2136-1HD0
Adjustable Current Range: 5.5 to 8 A
Max. Rated Operating Voltage: 690 V
Mounting: Direct Mounting
Connection Type Main Circuit: Screw Connection
Number of Auxiliary Contacts as NC: 1
Number of Auxiliary Contacts as NO: 1
Tripping Class: Class 10
Reset Function Input: No
Automatic Reset Function: Yes
Push Button Reset Function: Yes

Additional Details:
Thermal overload relay 5.5 to 8 A for motor protection, size S2, class 10. Contactor mounting for the main circuit: screw terminals. Auxiliary circuit: spring-loaded terminals. Manually operated automatic reset. Thermal overload relay SIRIUS 3RU2 for current-dependent protection of loads with normal starting against excessive heating due to overload or phase failure. This series is particularly flexible and cost-effective. Global approvals and applications in potentially explosive atmospheres are standard. Available with different adjustable overload tripping ranges. They come with screw or spring-loaded connections for a quick, maintenance-free, and vibration-resistant connection, as well as for custom installations. The accessories fit all sizes S00 to S3. Simple, efficient, always up to date - the modular SIRIUS system.
EAN: 4011209916869.
