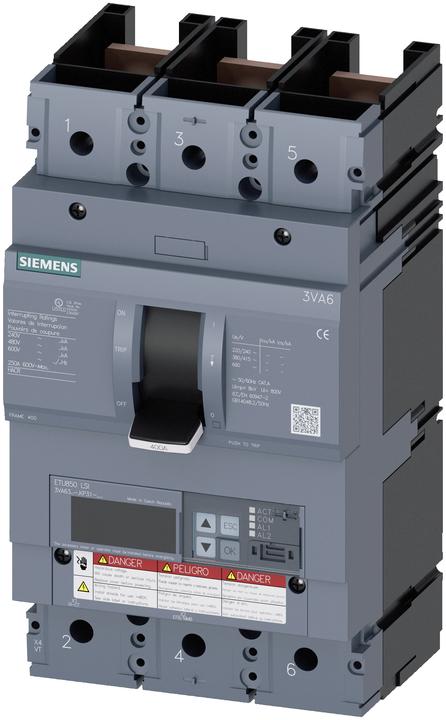

Siemens SIEM circuit breaker

Circuit breaker 3VA6 UL Frame 400, switching capacity class H 65kA @ 480V, 3-pole, system protection ETU850, LSI, In=400A, overload protection Ir=160A...400A, short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In, neutral conductor protection optional with external current transformer, up to 160% without connection. Compact circuit breaker 3VA6 with ETU 8 series for system protection, UL approval. The Siemens 3VA UL compact circuit breakers are an essential component of SENTRON protection devices for industrial applications as well as for infrastructure applications. They provide effective system and starter protection through safe disconnection in overload and short-circuit situations. The 3VA UL sets standards in flexibility and modular accessory variety. Additionally, the 3VA UL compact circuit breaker offers the best conditions for globally exporting machinery and switchgear manufacturers. Besides the IEC standard, both series 3VA5 and 3VA6 also meet the UL standard. All functionalities can thus be used worldwide for systems. This variant of the 3VA compact circuit breaker is characterized primarily by: 1. Compact design. 2. Available as a variant for system protection. 3. Available in 3-pole and 4-pole versions. 4. Four switching capacity classes from 55 kA to 150 kA at 480 V. 5. Depending on the frame size: rated current 40 A to 600 A. 6. Installation in fixed installation, plug-in technology, and slide-in technology is possible. 7. The series features an electronic overload relay. 8. Includes an integrated display for measurement value indication. 9. Integrated measurement function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET, and PROFIBUS. 10. Modular and easy-to-install internal accessories with a variety of functions.
