Siemens SIEM 6ES7146-6FF00-0AB0 SIMATIC DP, ET 200eco PN, F-DI 8x24V/F-DQ 3x24V 2A, M1

SIMATIC DP, ET 200eco PN, F-DI 8x24V / F-DQ 3x24V 2A, M12 PROFIsafe, up to PL E (ISO 13849), up to SIL 3 (IEC 61508), protection class IP65/67.

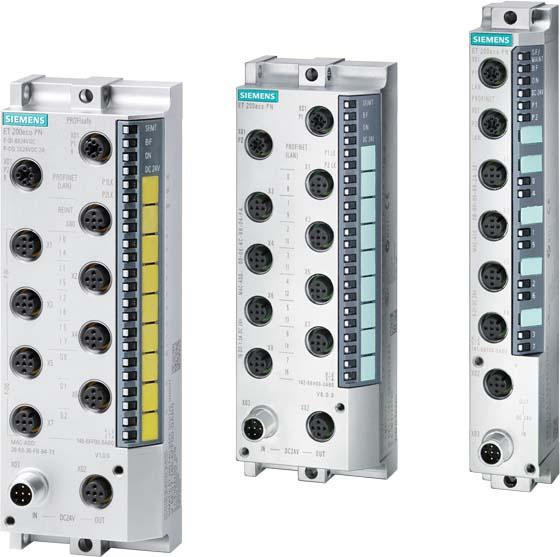

The SIMATIC ET 200eco PN is a compact block peripheral with PROFINET connection in protection class IP 65/67, offering a space-saving and future-proof solution that sets new market standards and involves very little installation effort. You can easily and flexibly install and commission the block peripheral in any orientation.

Thanks to its intelligent design, installation can be carried out directly on-site at the machine or assembly line. The robust zinc die-cast housing ensures ideal protection in extremely challenging environmental conditions and allows operation at temperatures ranging from -40° to +60°.

Another advantage of the system is its maximum resistance to vibrations, dust, oil, and moisture. With the SIMATIC ET 200eco PN, you receive a future-proof and innovative complete solution that can be flexibly configured and integrated into line topologies within a facility, thanks to the integrated 2-port switch.

The M12-L coded power connectors simplify the power supply concept and enable higher current capacity as well as significantly longer cable lengths in the field without additional supply lines.

Siemens guarantees you future-proof and innovative solutions that help you explore new business areas through key technologies that are further developed by the ET 200 products.

The portfolio includes not only digital and analog input and output modules in various configurations (including current, voltage, temperature, and resistance measurements) but also IO-Link masters and a fail-safe module for connecting sensors and actuators up to SIL 3 / PLe. If needed, the outputs of the standard modules can also be safely switched off application-wise up to SIL 2.
