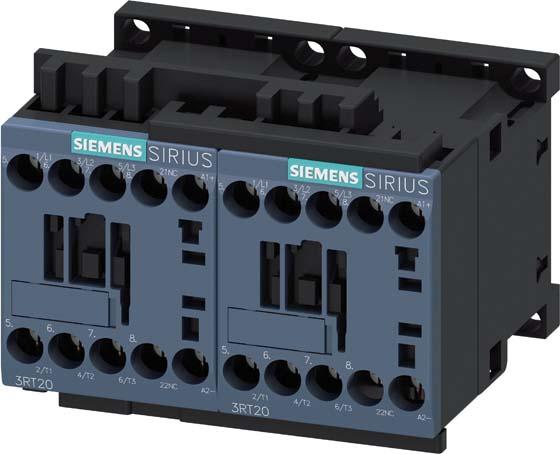

Siemens Reversing contactor DC 5.5kW/AC 48V 12A/AC 3RA2317-8XB30-1BW4

Siemens Dig.Industr. reversing combination 3RA2317-8XB30-1BW4

Manufacturer: Siemens Dig.Industr.
Designation: Reversing combination 5.5 kW/400 V 48 VDC S00
Type: 3RA2317-8XB30-1BW4
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 48 V
Voltage type for actuation: DC
Rated operational current Ie at AC-3, 400 V: 12 A
Rated operational power at AC-3, 400 V: 5.5 kW
Rated operational power NEMA: 5.51624062 kW
Number of NO contacts as main contacts: 3
Connection type main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other

Further details:
Reversing combination AC-3, 5.5 kW/400 V, DC 48 V, 3-pole, size S00.
Screw connection, electrical and mechanical interlocking.
Reversing combination SIRIUS 3RA23 for switching motors including change of direction. The 3RA23 reversing combination is a tested and factory pre-assembled combination of two 3RT2 contactors of the same power rating, which are pre-wired and mechanically and electrically interlocked. They are climate-proof, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. 3RA23 reversing combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-cage connection technology for mounting on top-hat rails or screw fastening. 3RT2 contactor accessories are standardized for all sizes and can also be used for contactor combinations. The 3RA23 reversing combinations replace the tried and tested 3RA13 series. Simple, efficient, always up-to-date - the SIRIUS modular system.
EAN: 4011209835849.
