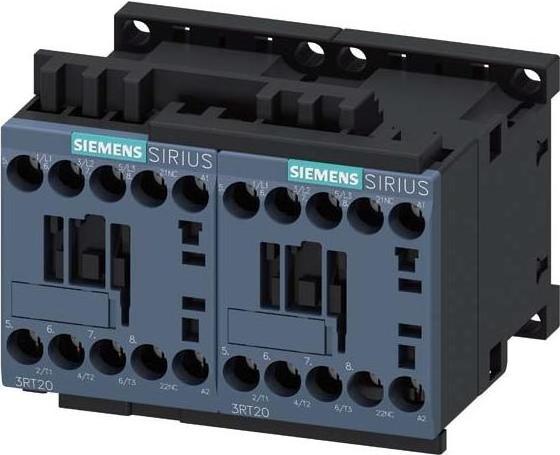

Siemens Indus.Sector reversing combination 3RA2318-8XB30-1AF0

Siemens Digital Industries Reversing Combination 3RA2318-8XB30-1AF0

Manufacturer: Siemens Digital Industries
Designation: Reversing combination 7.5 kW/400V 110V S00
Type: 3RA2318-8XB30-1AF0
Function: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 110 V
Rated control supply voltage Us at AC 60 Hz: 110 V
Rated control supply voltage Us at DC: 0 V
Voltage type for operation: AC
Rated operational current Ie at AC-3, 400 V: 16 A
Rated operational power at AC-3, 400 V: 7.5 kW
Rated operational power NEMA: 7.35498749 kW
Number of NO contacts as main contacts: 3
Connection type main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other

Further details:
Reversing combination AC-3, 7.5 kW/400V, AC 110V, 50/60Hz, 3-pole, size S00, screw connection, electrical and mechanical interlocking. The reversing combination SIRIUS 3RA23 is designed for switching motors, including change of direction of rotation. The 3RA23 is a tested and factory-assembled combination of two contactors 3RT2 of the same rating, already wired and mechanically and electrically interlocked. They are climate-proof, approved worldwide (e.g., IEC and UL/CSA) and IE3/IE4 ready. 3RA23 reversing combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring-cage connection technology for mounting on top-hat rails or screw mounting. The accessories of the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations. The 3RA23 reversing combinations replace the proven 3RA13 series. Simple, efficient, always up-to-date - the SIRIUS modular system.
EAN: 4011209835948.
